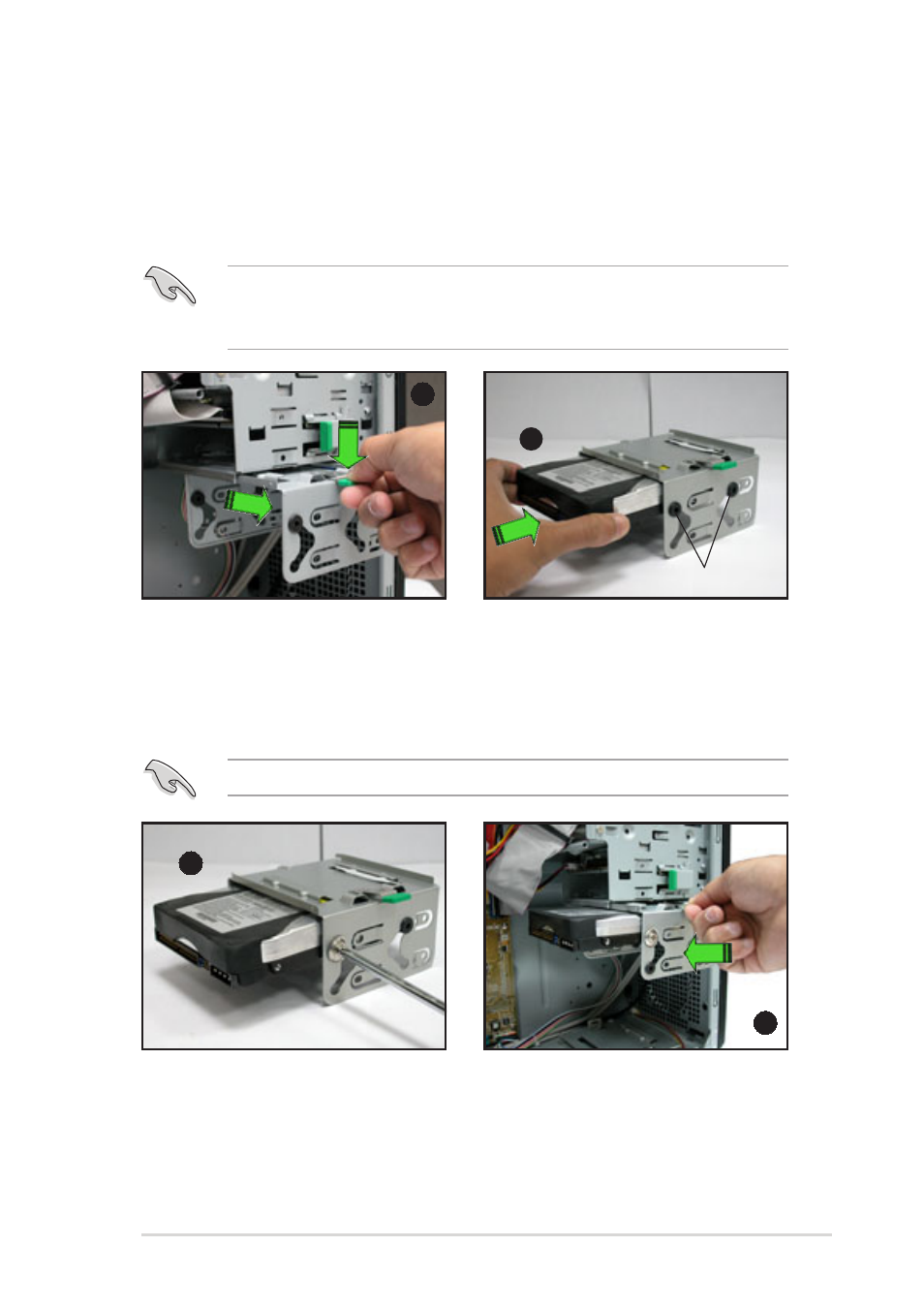

2.6.2 Hard disk drive installation
The detachable hard disk drive cage can accommodate one IDE or
Serial ATA hard disk drive.
To install an IDE hard disk drive:
1. Press the HDD cage lock while
pulling the cage out from the
chassis. Place the HDD cage in
a flat surface.
2. Insert a HDD to the upper bay
of the cage. Make sure that the
HDD screw holes are aligned
with the HDD cage screw holes
(with black rubber stoppers).
3. Secure the HDD to the cage
with two screws (with metal
washers) on both sides of the
cage.
Configure your hard disk drive as Master/Slave device before installing
it to the drive cage. Refer to the HDD documentation on how to set the
drive as a Master/Slave device.
2
Screw holes
1
4. Re-install the HDD cage to the
chassis. Align the HDD cage
and bay assembly rails, then
carefully push the HDD cage
until it is flushed to the chassis.
4
3
DO NOT install a hard disk drive to the lower bay of the cage.
