ASUS P5Q-EM DO 1-29

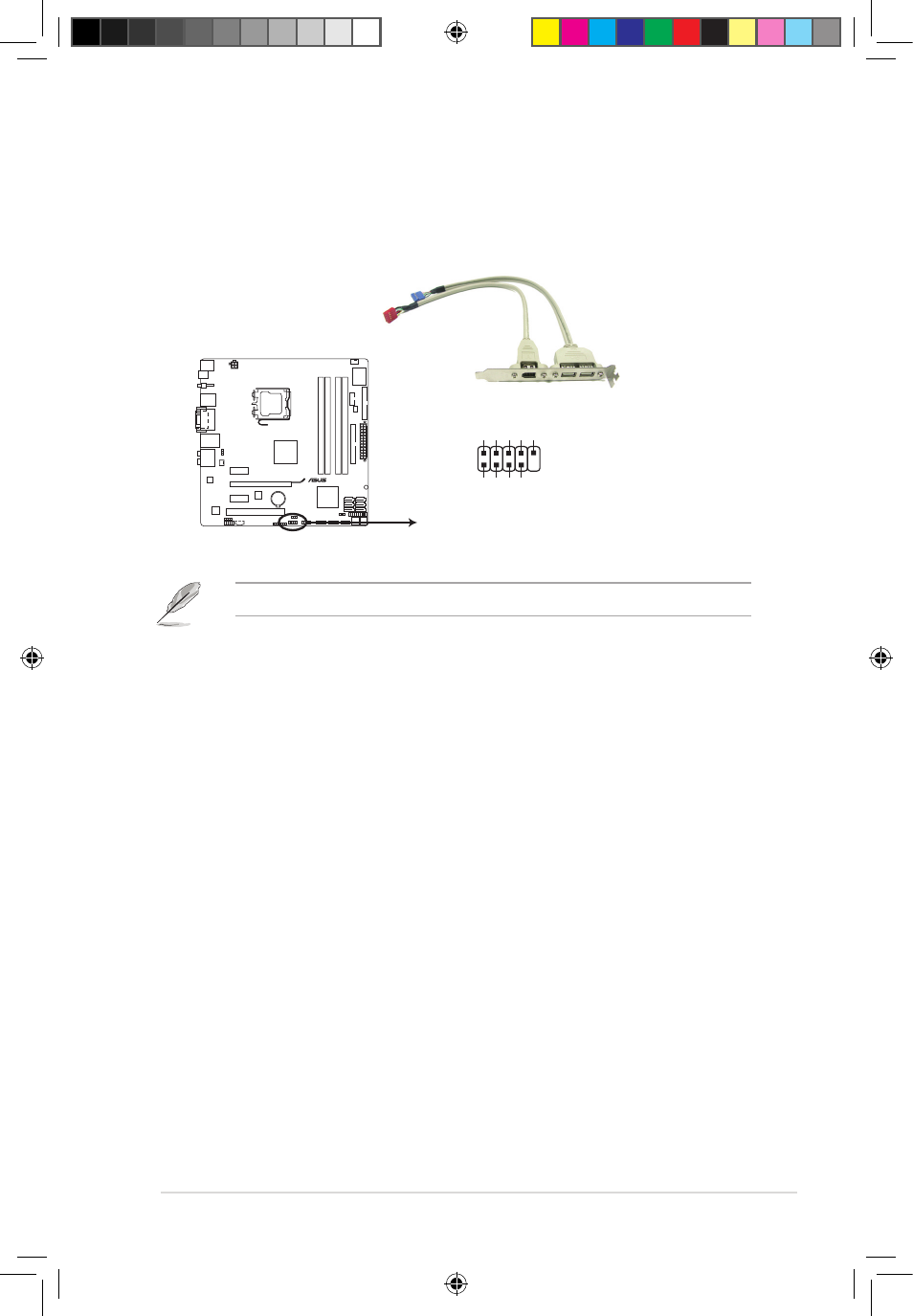

3. IEEE 1394a port connector (10-1 pin IE1394_2)
This connector is for a IEEE 1394a port. Connect the IEEE 1394a module cable to this
connector, then install the module to a slot opening at the back of the system chassis.
P5Q-EM DO IEEE 1394 connector
P5Q-EM DO
PIN 1
TPA2- GND TPB2- +12V GND
TPA2+
GND
TPB2+
+12V
IE1394_2
The IEEE 1394a module is purchased separately.
