Hardware description, 1 mounting – GE Industrial Solutions ISBus interface board for AV-300i Drives User Manual
Page 4
—————— Expansion board ——————
4
GEI-100424
1. HARDWARE DESCRIPTION
1.1 MOUNTING
The ISBus card is supplied with standoffs, screws, washers and a ISBus
connectors.
1.
Switch the drive off.
2.

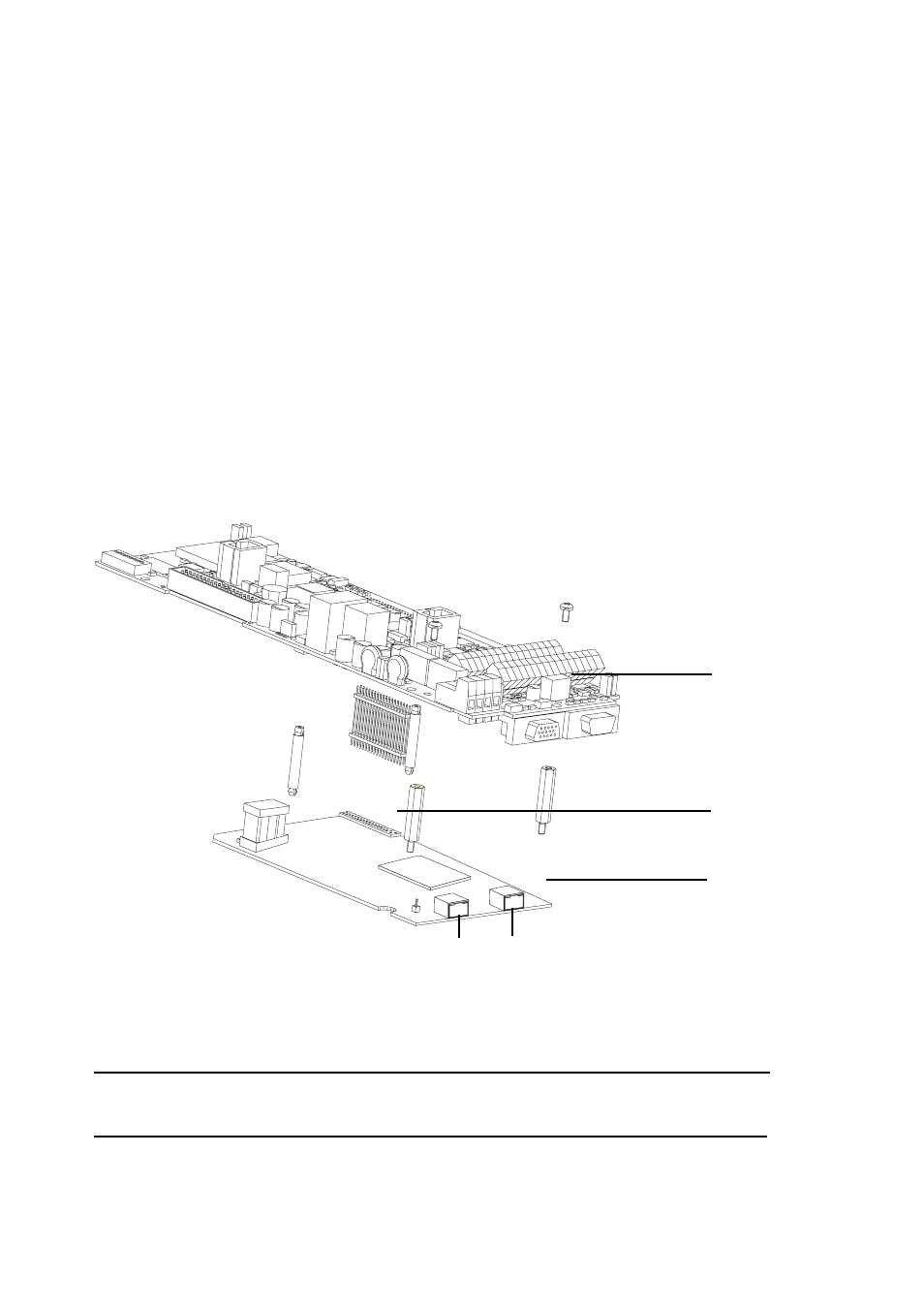

Fasten the ISBus card to the drive regulation board by means of screws
(B) and standoffs (A). The SBI-Drive connector (C) must be connected
between X0 (on Regulation board) and X0 (on ISBus card).
3.
Switch on the drive.
4.
The LED H1 lights up.
N
OTE
:
ISBus functionality requires AV300i software version 2.00
or higher
N
OTE
:
Refer to GEH 6380 for ISBus cabling and hookup.
B
C
A
Tx
Rx Tx
