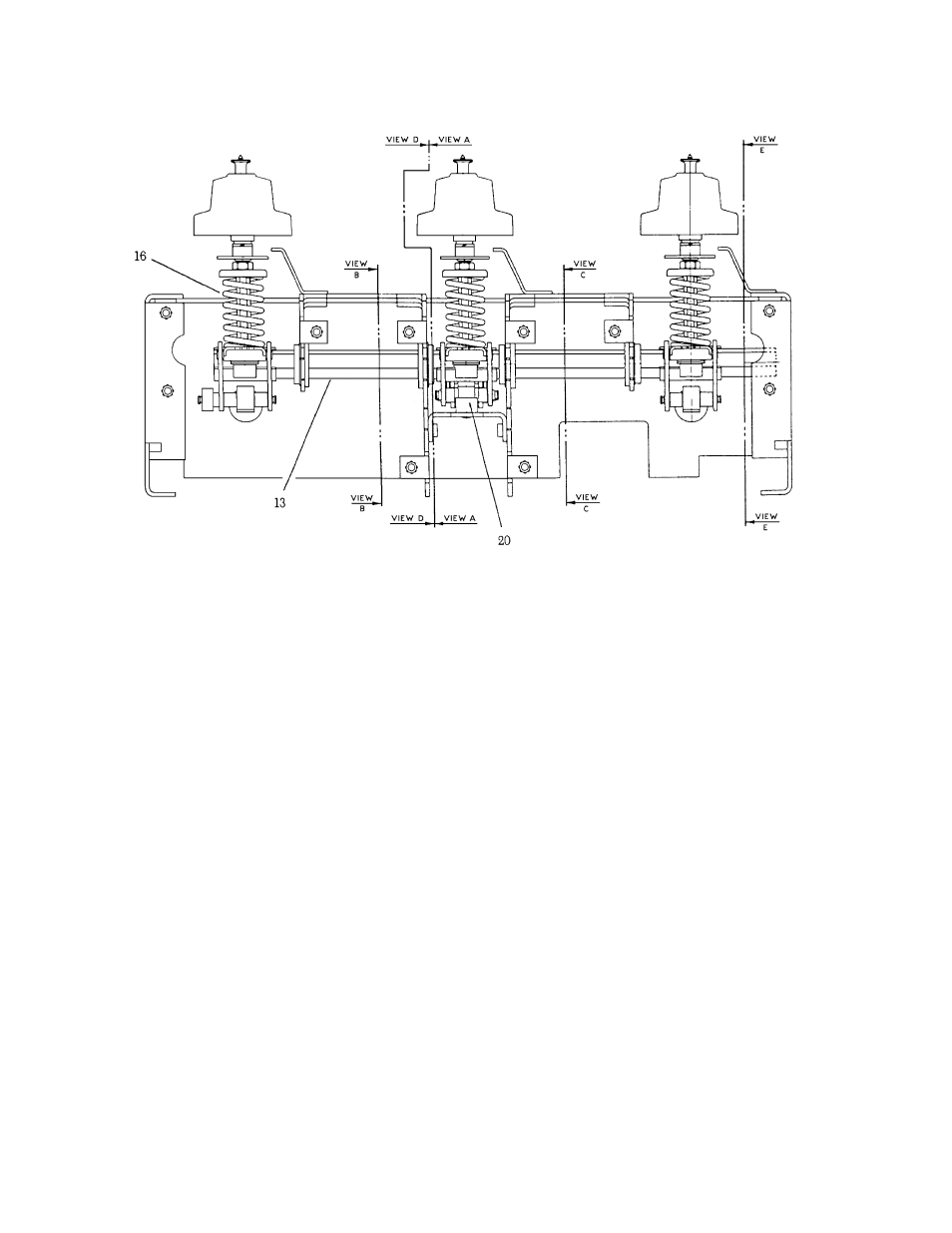

Figure 17 Schematic of ML-18 mechanism
(Continued on next page)
1. Close spring
12. Output crank
2. Cam shaft
13. Cross shaft
3. Manual charge
14. Bell cranks
4. Charging arms
15. Opening springs
5. Ratchet wheel
16. Wipe springs
6. Driving pawl
17. Auxiliary switch
7. One-way clutch
18. Trip solenoid
8. Close latch
19. Trip latch
9. Close cam
20. Over-travel stop
10. Close roller
21. Latch check switch
11. Prop
22. Gear motor
23. Manual trip button
