4—trip coil plunger, 5—close coil plunger, 6—close latch stop bolt – GE Industrial Solutions PowerVac with ML-18 or ML-18H Mechanism User Manual

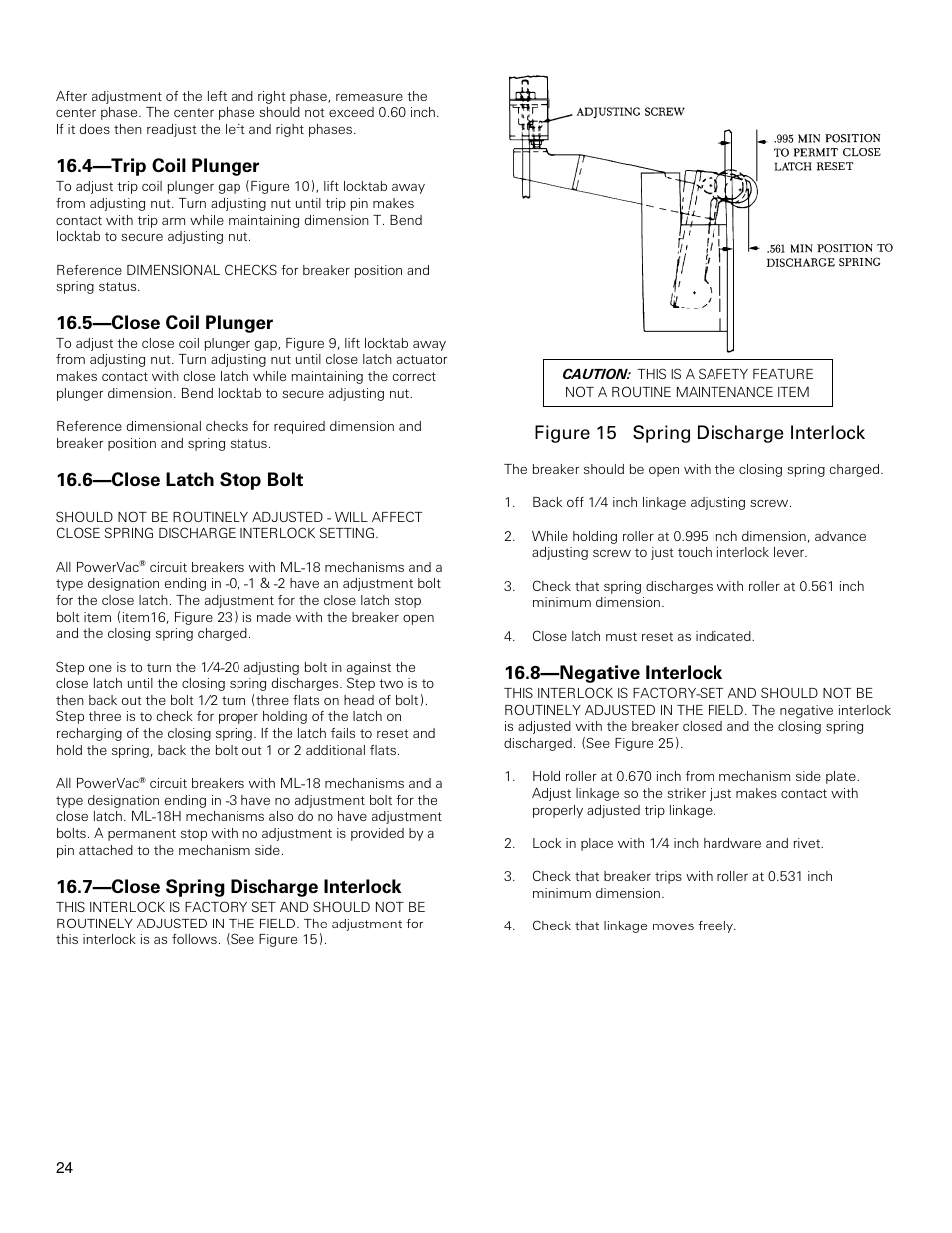

Page 24: 7—close spring discharge interlock, Figure 15 spring discharge interlock, 8—negative interlock
