2 Lineage Power
Data Sheet KS-23836 ® Connector
January 2008 Long-Barrel Lug-Type Terminations
Extra Connection Strength
The long crimping barrel of the
TE-20001 connectors provides
additional strength for
earthquake zones and other
high stress envirnments.
Providing maximum reliability,
the connection strength far
exceeds minimum UL*
requirements.
High Conductivity
The connectors are fabricated
using seamless, tubular copper
for excellent conductivity and
reliability. Tin plating preserves
connector integrity and also
prevents corrosion. In addition,
the connectors are specified for
extra margins of safety to
minimize the risk of overheating.
Easy, Accurate Installation
Intended for use in power
equipment and central office
power system installations,
TE-20001 connectors are
designed to be installed using
UL- or CSA†-approved
compression tools and dies. A
color-coding scheme matches
terminal and die sets to provide
the correct number and location
of crimps, reducing errors and
ensuring proper installation.
Color-coded barrels are
matched with Class I and Class
B stranding, which are UL-listed
with tooling, as indicated by the
specification. Benefits
■ Extra connection strength for
earthquake zones and other
hight stress environments
■ Provides highly reliable
electromechanical
connections for high-energy
applications
■ Minimizes the risk of
overheating
■ Designed for fast, simple,
error-free installation
■ High quality ensured by strict
testing and qualification
procedures
■ Exceeds applicable
Telecordia requirements
■ UL-listed with Lineage
Power’s KS power wires for
Class I stranding and
standard Class B Stranding
■ Compatible with UL or
CSA-approved crimp
compression tools
■ UL-listed with tooling
identified in the power data
sheets of the TE-20001
specification
* UL is a registered trademark of
Underwriters Laboratories, Inc.
† CSA is a registered trademark of the
Canadian Standards Association, Inc.

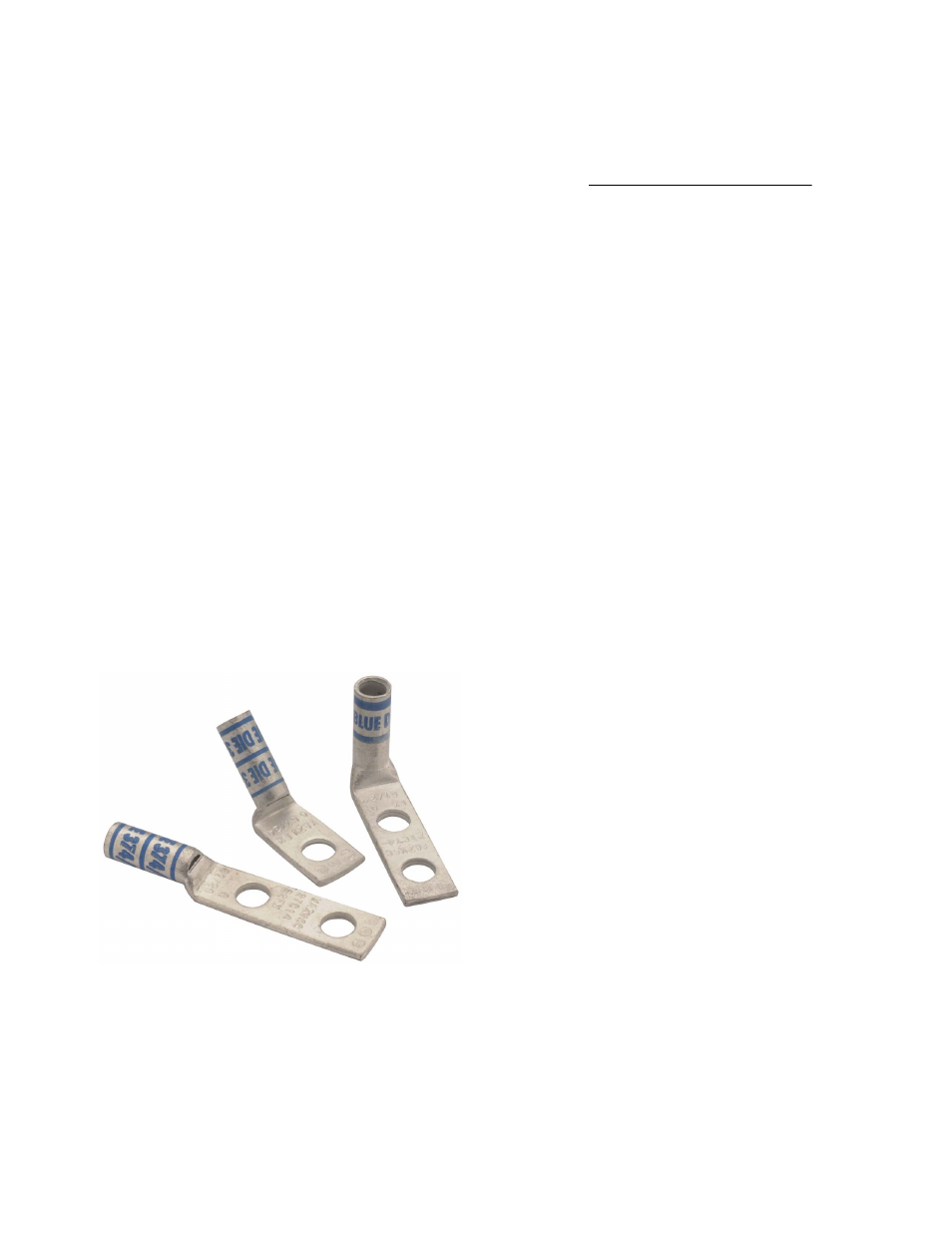

Lineage Power offers
TE-20001 in one-hole or
two-hole, 90°, 45°, and
straight configurations
