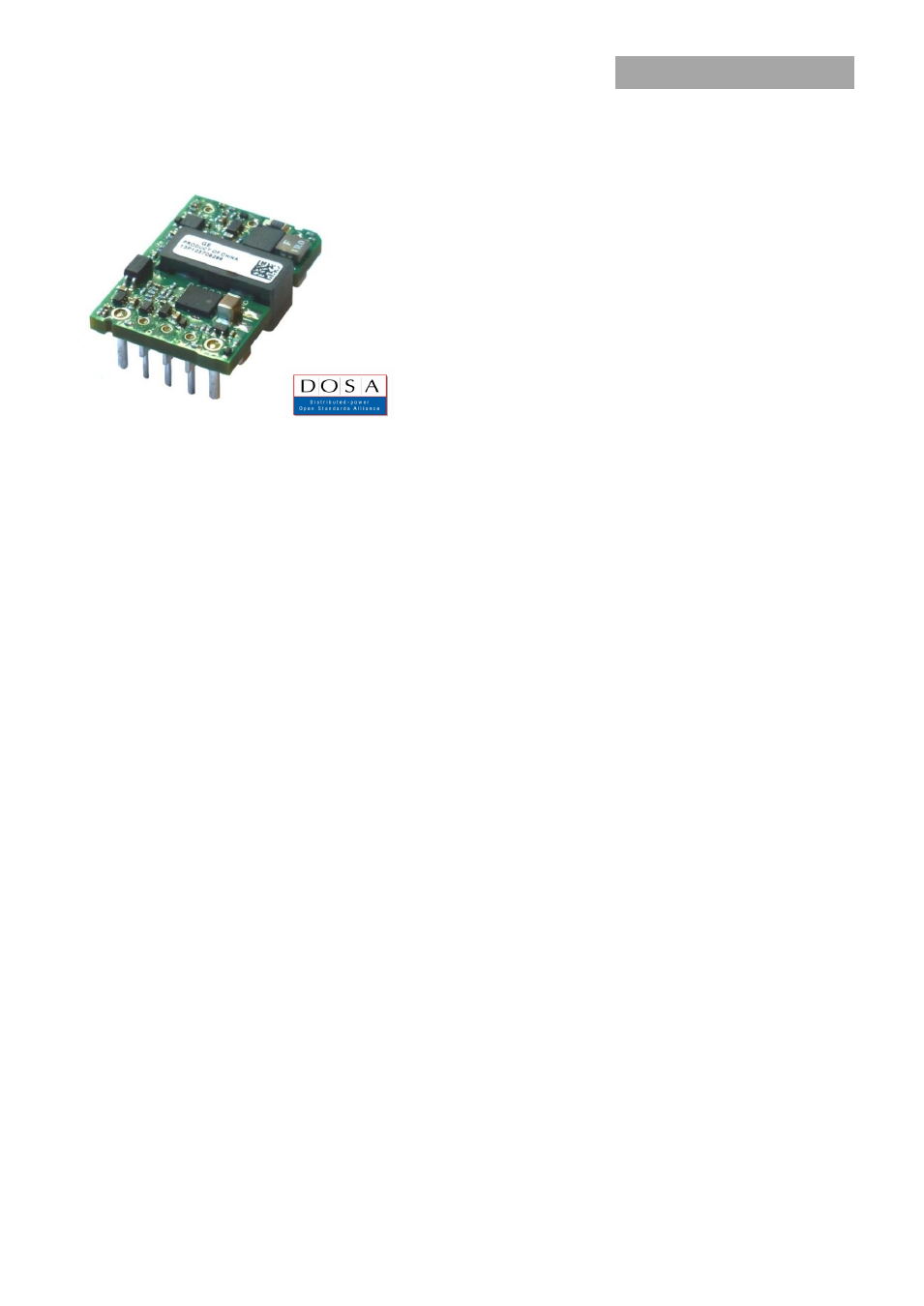

KSTW010A0F Barracuda* Series; DC-DC Converter Power Modules
36-75Vdc Input; 3.3Vdc, 10A Output
Features
 Compliant to RoHS II EU “Directive 2011/65/EU (-Z versions)
 Compliant to REACH Directive (EC) No 1907/2006
 Wide Input Voltage Range, 36V
dc
to 75V
dc
 No minimum load
 High efficiency – 90%(Typ) at full load (V
IN
=48V
dc
)
 Constant switching frequency
 Low output ripple and noise
 Small Size and low profile, follows DOSA standard 1/16th
footprint
33.0 mm x 22.9 mm x 9.3 mm
(1.30 in x 0.9 in x 0.37 in)
 Surface mount (SMT) or Through hole (TH)
 Reflow process compliant, both SMT and TH versions
 Positive Remote On/Off logic
 Output overcurrent/voltage protection (hiccup)
 Over-temperature protection
 Output Voltage adjust: 80% to 110% of V
o,nom
 Wide operating temperature range (-40°C to 85°C)
 ANSI/ UL # 60950-1-2011 Recognized, CAN/CSA† C22.2
No.60950-1-07, Second Edition + A1:2011 (MOD) Certified
IEC 60950-1:2005 (2nd edition) + A1:2009 and EN 60950-
1:2006 +A11:2009 +A1:2010 +A12:2011, and VDE‡0805
(EN60950-1 3rd edition) Licensed
 CE mark meets 2006/95/EC directive §
 Meets the voltage and current requirements for ETSI 300-
132-2 and complies with and licensed for Basic insulation
rating per EN60950-1
 2250 Vdc Isolation tested in compliance with IEEE 802.3 ¤
PoE standards
 ISO** 9001 and ISO 14001 certified manufacturing facilities
Applications
 Wireless Networks
 Hybrid power architectures
 Optical and Access Network Equipment
 Enterprise Networks including Power over Ethernet (PoE)
 Industrial markets
Options
 Negative Remote On/Off logic (preferred)
 Surface Mount/Tape and Reel (-SR Suffix)
 Auto-restart Over current/Over voltage protections
(preferred)
 Shorter through hole pin trim
Description
The KSTW010A0F series power modules are isolated DOSA compliant 1/16 th brick dc-dc converters that operate over a wide input
voltage range of 36 V
dc
-75V
dc
and provide a single precisely regulated output voltage at 3.3V
dc
. The output is fully isolated from
the input, allowing versatile polarity configurations and grounding connections. The modules exhibit high efficiency of 90% typical
at full load. Built-in filtering for both input and output minimizes the need for external filtering. The module is fully self-protected
with output over-current and over-voltage, over-temperature and input under voltage shutdown control. Optional features include
negative or positive on/off logic and SMT connections
