GE Industrial Solutions Naos Raptor 60A User Manual
Features, Applications, Description

Data Sheet
December 6, 2010
Naos Raptor 60A: Non-Isolated Power Modules
5 – 13.8Vdc input; 0.6Vdc to 5.0Vdc Output; 60A Output Current
*
UL is a registered trademark of Underwriters Laboratories, Inc.
†
CSA is a registered trademark of Canadian Standards Association.
‡
VDE is a trademark of Verband Deutscher Elektrotechniker e.V.
** ISO is a registered trademark of the International Organization of Standards
Document No: DS06-129 ver. 1.09
PDF name: NSR060A0X_ds.pdf
Features
Compliant to RoHS EU Directive 2002/95/EC (Z
versions)
Compatible in a Pb-free or SnPb wave-soldering
environment (Z versions)
Wide input voltage range (5Vdc-13.8Vdc)
Output voltage programmable from 0.6Vdc to
5.0Vdc via external resistor
Tunable Loop
TM
to optimize dynamic output voltage
response
Fixed switching frequency
Output overcurrent protection (non-latching)
Over temperature protection
Over voltage protection – Hiccup Mode
Remote On/Off
Power Good Signal
Small size:
65.5 mm x 31.8 mm x 11.6 mm
(2.58 in. x 1.25 in. x 0.46 in.)
Wide operating temperature range (0°C to 70°C)
UL* 60950 Recognized, CSA
†
C22.2 No. 60950-00
Certified, and VDE
‡
0805 (EN60950-1 3
rd
edition)
Licensed
ISO** 9001 and ISO 14001 certified manufacturing
facilities
Applications
Distributed power architectures
Intermediate bus voltage applications
Telecommunications equipment
Servers and storage applications
Networking equipment
Description

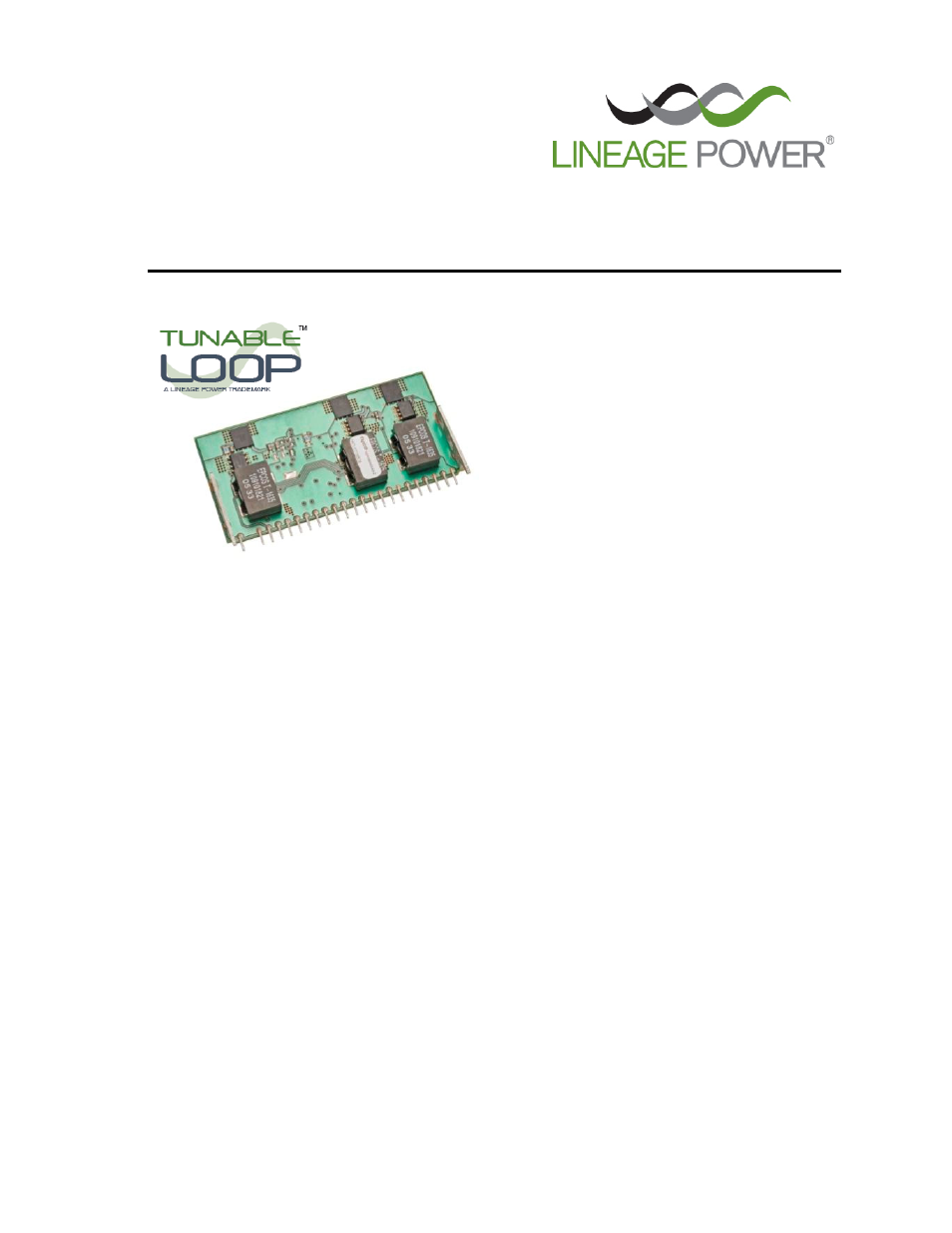

The Naos Raptor 60A SIP power modules are non-isolated dc-dc converters in an industry standard package that
can deliver up to 60A of output current with a full load efficiency of 92.1% at 3.3Vdc output voltage (V
IN
= 12Vdc).
These modules operate over a wide range of input voltage (V
IN
= 5Vdc-13.8Vdc) and provide a precisely regulated
output voltage from 0.6dc to 5.0Vdc, programmable via an external resistor. Features include remote On/Off,
adjustable output voltage, over current, over temperature and over voltage protection. A new feature, the Tunable
Loop
TM
, allows the user to optimize the dynamic response of the converter to match the load.
RoHS Compliant
