Features, 5 bay / 6 kilowatt power shelf

Features:
www.lineagepower.com/oem
Lineage Power
Lineage Power
Lineage Power (China)
3000 Skyline Dr.
2841 Dow Avenue
1353 Chenqiao Road, Shanghai Sengpu Industrial Park
Mesquite, TX 75149
Tustin, CA 92780 USA
Shanghai, 201401 China
Phone: (972) 284-2000
Phone: (714) 544-6665
Phone: 021 6710 8910

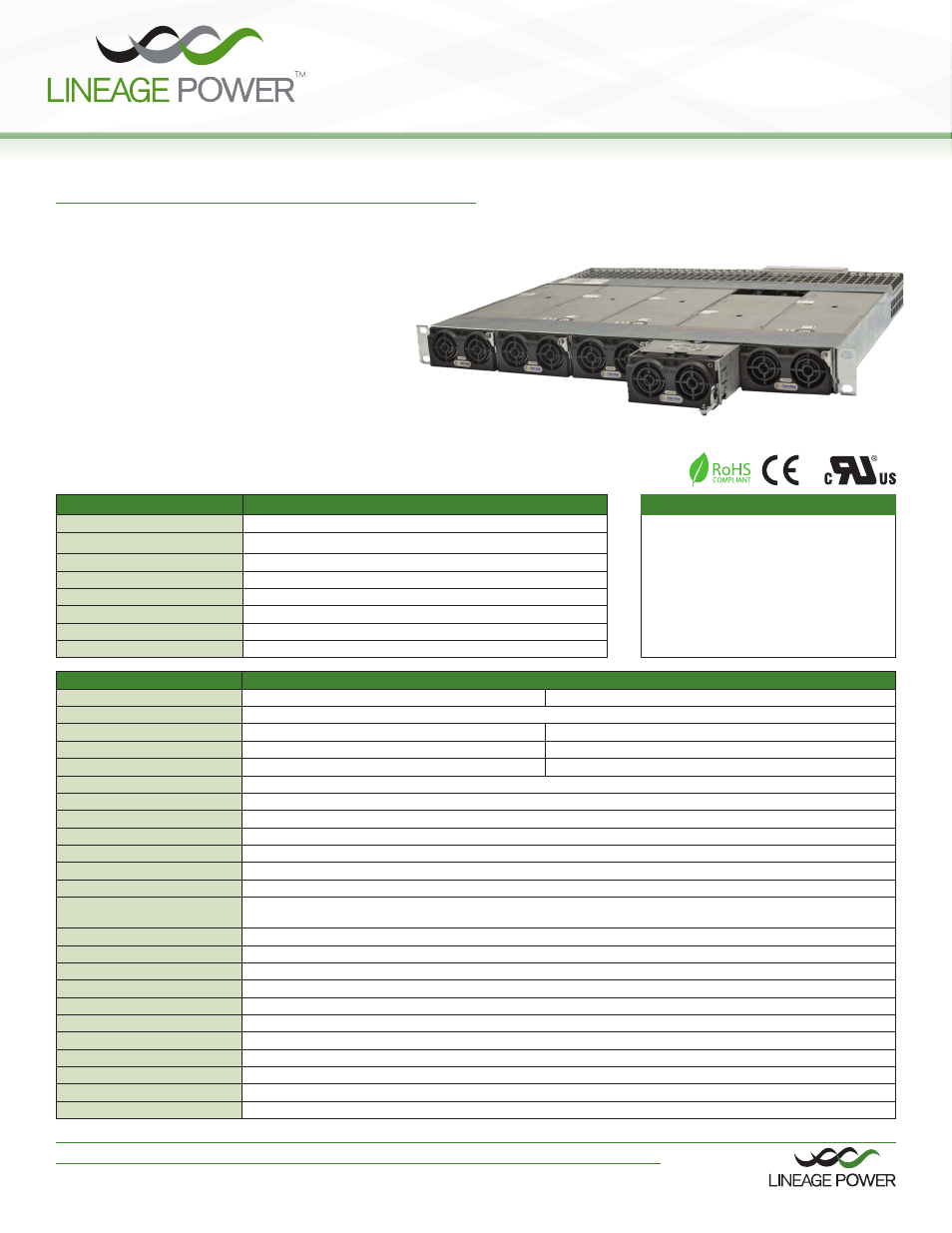

ACE125RUW48
5 Bay / 6 Kilowatt Power Shelf
rev 100506
∎
Universal Rack for the CAR1248FP and CAR1248TN
∎
Up to 6,000W (4,800W N+1)
∎
Fully Hot-Pluggable and Redundant
∎
Remote Sensing
∎
LED Indicators
∎
Built-in Alarm Signals
∎
Full Protection Features
∎
World-Wide Safety Approvals
KEY MARKETS & APPLICATIONS
∎
Base Stations
∎
ATE Equipment
∎
Satelite Hubs
∎
RF Amplifiers
∎
Networking Equipment
∎
Telecom Access Nodes
∎
Power for Distributed Power Architectures
∎
Central Office Switching
FEATURES
BENEFITS
Single Wire Current Sharing
Provide system stress balancing and increases reliability
Constant Power Option
Better suited for battery charging applications
Constant CurrentOption
Designed for front-end bulk supply applications
Voltage Trimming Capability
Designed for float VRLA batteries
BControl and Monitoring Signals
Allows for superior system control
Universal Input & International
Reduced logistic costs, meets world-wide standards
Built in Variable Speed fan
Low noise and increased reliability
LVD and Controller Option
Complete system integration for telecom applications
SPECIFICATIONS
6000 Watt Power Shelf for Five CAR1248 Front End & Rectifier Power Supplies
Rectifier/Front-End Model
CAR1248TN
CAR1248FP
Maximum Output Power
6000W (4800W N+1 Redundancy) at High Line
Output Current
112.5A at High Line (92.5A @ low Line)
125A at High Line (104A @ low Line)
Output Voltage
-54VDC ±0.2V
+48VDC ±0.1V
Output Voltage Range
-42VDC to -56VDC
+43.2 to +52.8VDC
Input Voltage*
90-264VAC, 47-63Hz (Individual input feeds)
Maximum Input Current
12.75A@100VAC, 7.9A@180VAC per module
Maximum Inrush Current
40A per input (per ETS 300 132-1)
Power Factor
0.99 typical. Complies with IEC555, EN60555-2, EN61000-3-2
Efficiency
91% typical at nominal load and 230VAC. (85% at 90VAC)
Regulation - Line
±2% of input power line
Regulation - Load
±1% of load
Ripple and Noise
Complies with ETS300 132-2, 32dBnrc. Bandwidth: 25Hz - 20kHz. ±1% pk-pk with 0/1uF ceramoc and 10uF electrotic caps
at the output.
Load Sharing
Active single wire load sharing. Unit to share ±10% of full load.
Transient Response
5% max deviation, 300usec recovery time @ 50% step load and di/dt < 1A/us
Status Indicators
AC good (GREEN), DC good (GREEN), FAULT (RED)
Alarm Signals
AC OK, AC High, DC OK, Temperature OK, Module Missing, Current Monitoring, Remote ON/OFF
Current Limit Protection
Self protected between the range of 110% - 130% of Iout nominal
Overvoltage Protection (OVP)
59VDC ±1V
Temperature Range
-10C to 70C (Power derating above 50C at 2%/C). -40C start up.
Shock & Vibration
IEC 68-2-27, MIL-STD-810E, 20G, Telcordia GR-63-CORE, GR-487-CORE
EMI/EMC
Class B (FCC and CISPR compliant) - EN55022 Level B. CE Marking Level B. GR-1089-CORE
Safety Approvals
UL: 487, 1012, 1950 CSA 22.2 No. 650 IEC: 380, 435, 950 VDE 0804, 0806 & CE Marked TUV
Dimensions
1.74” x 19.00” x 14.98” (44.1mm x 482.6mm x 380.5mm) - including mounting ears
