GE Industrial Solutions EntelliGuard G Castell lock Kit User Manual
Page 3

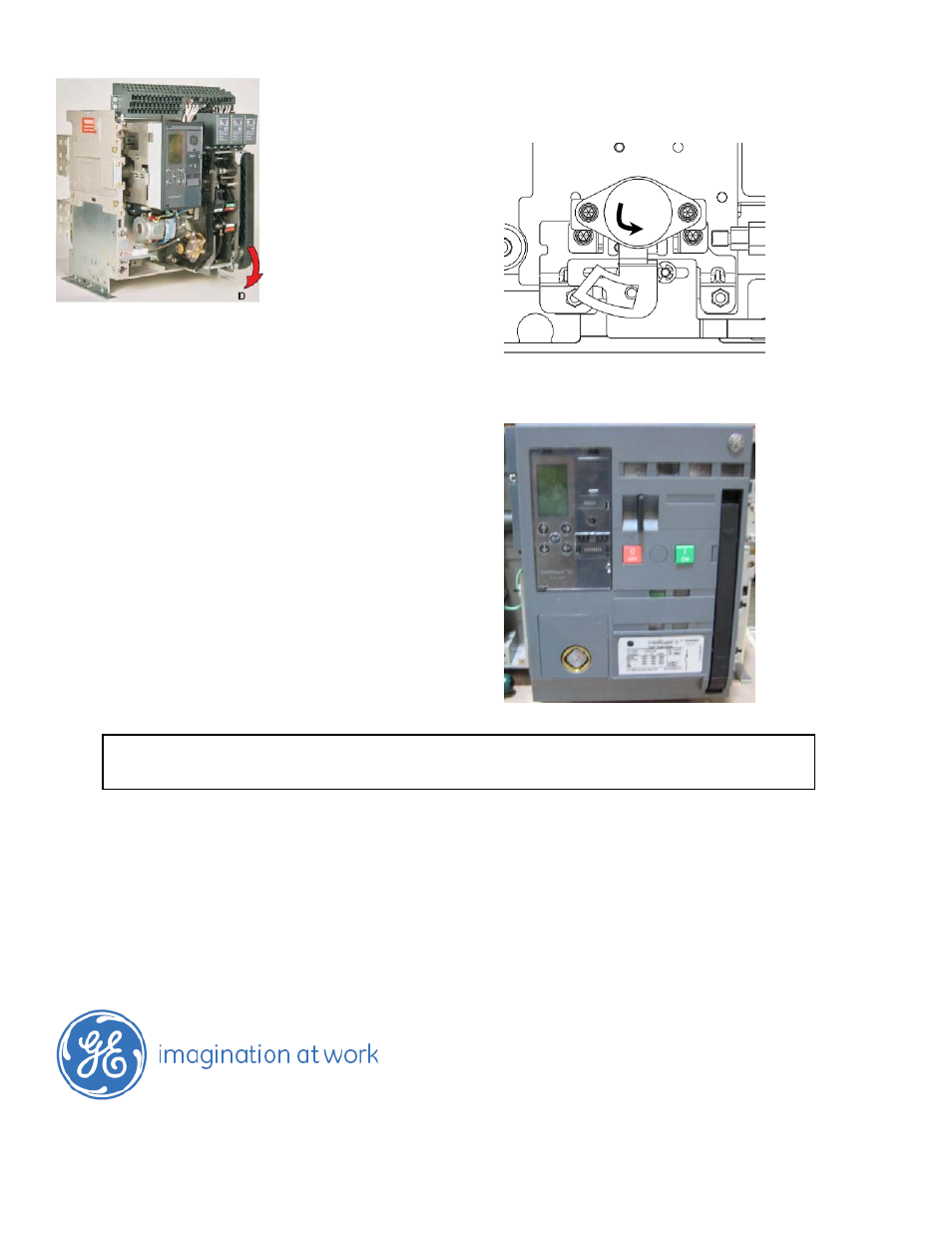

Fig 5
Breaker key lock Operation:
Use the following procedure to operate the
padlock:
1. Depress the OFF pushbutton on the breaker
front Fascia and extend/pull the breaker padlock
lever to its' outer position.
2. With the padlock lever extended, rotate one or
more of the keys anticlockwise as shown in fig 6.
The key can then be removed thus locking the
breaker in its open position.
3. With padlock lever extended, insert the key and
rotate in clockwise to unlock.
Fig 6
Fig 7 (Locked Condition)
These instructions do not purport to cover all details or variations in equipment nor, to provide contingency to be met in connection
with installation, operation, or maintenance. Should further information be desired, or should particular problems arise which are
not covered sufficiently for the purchaser’s purposes, the matter should be referred to GE.
GE
41 Woodford Ave, Plainville, CT 06062
www.geelectrical.com
© 2009 General Electric Company
DEH-41376 R1 (04/09)
3
