Overview

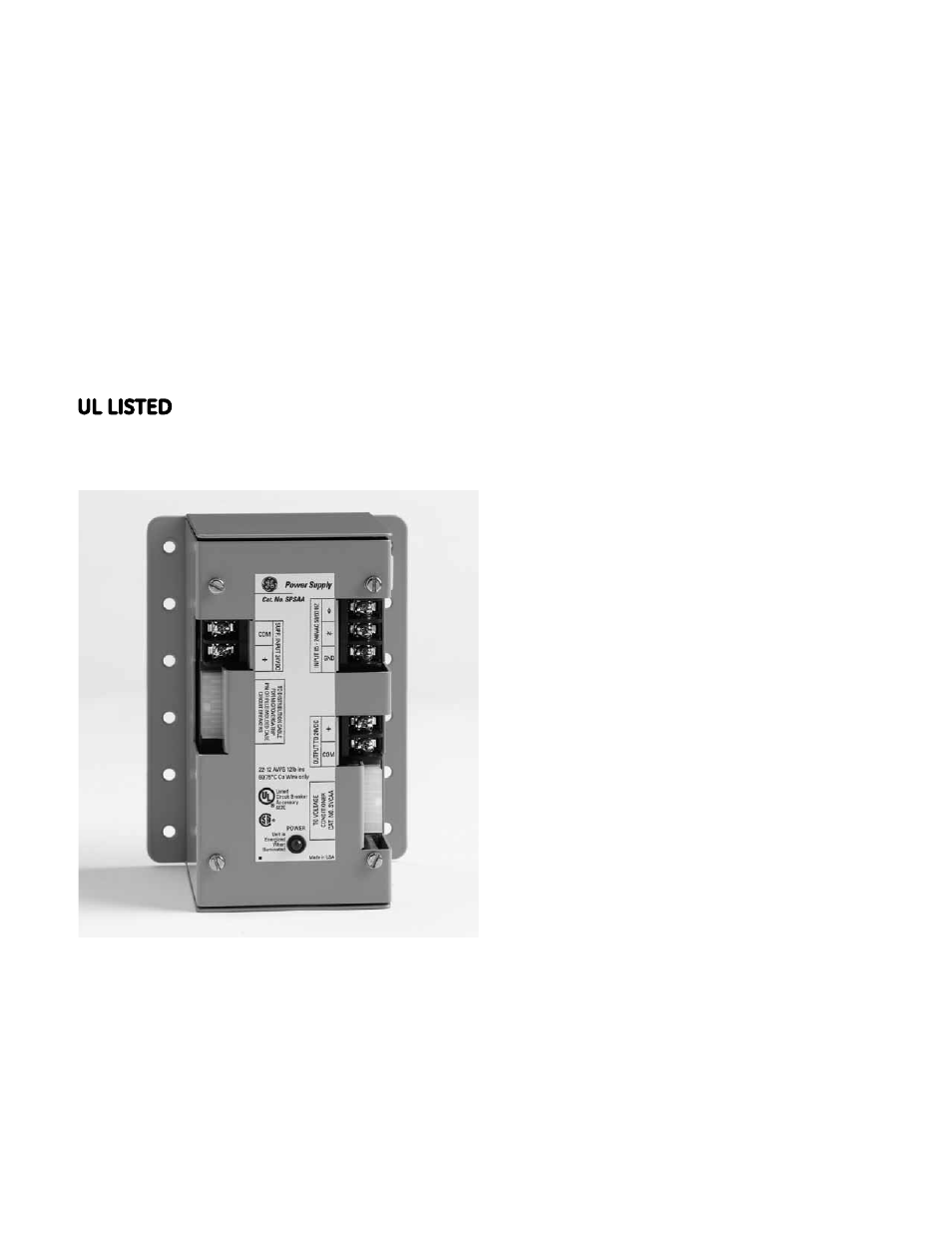

The General Electric Power Supply Assembly is used to
provide +24Vdc Control Power to Spectra
®
RMS Molded-
Case Circuit Breakers with microEntelliGuard
TM
or
MicroVersaTrip
®
PM/Plus Trip Units via the Distribution
Cable System.
The Power Supply Assembly also provides power to the
Voltage Conditioner Assembly or Voltage Conditioner
Plate. Spectra
®
RMS Molded-Case Circuit Breakers with
microEntelliGuard™ (with advanced metering) and
MicroVersaTrip
®
PM Trip Units require connection to a
Voltage Conditioner Assembly or Voltage Conditioner
Plate to function properly.
The Power Supply Assembly is rated 24 watts (+24Vdc@
1.0 amp) and has the maximum capacity to power a
Distribution Cable System consisting of either a Voltage
Conditioner Assembly or a Voltage Conditioner Plate
AND 20 Spectra
®
RMS Molded-Case Circuit Breakers
with microEntelliGuard
TM
or MicroVersaTrip
®
PM/Plus
Trip Units with a maximum system cable length of 40
feet.
The assembly requires a minimum input voltage of
85Vac @ 60 Hz to operate properly (the maximum
voltage rating is 240Vac @ 60 Hz).
This input must
be fused with 2-amp class CC fuses (not included).
The Power Supply Assembly is designed to operate in
temperatures between 0°C and 70°C.
GEH-6253 Installation Instructions
Power Supply Assembly
For Spectra
®
RMS Molded-Case Circuit Breakers
with microEntelliGuard
TM
, MicroVersaTrip
®
PM or MicroVersaTrip
®
Plus Trip Units
For Catalog Number SPSAA
Circuit Breaker Accessory
