GE Industrial Solutions EntelliGuard G Command Closing Coil - Manual

Introduction

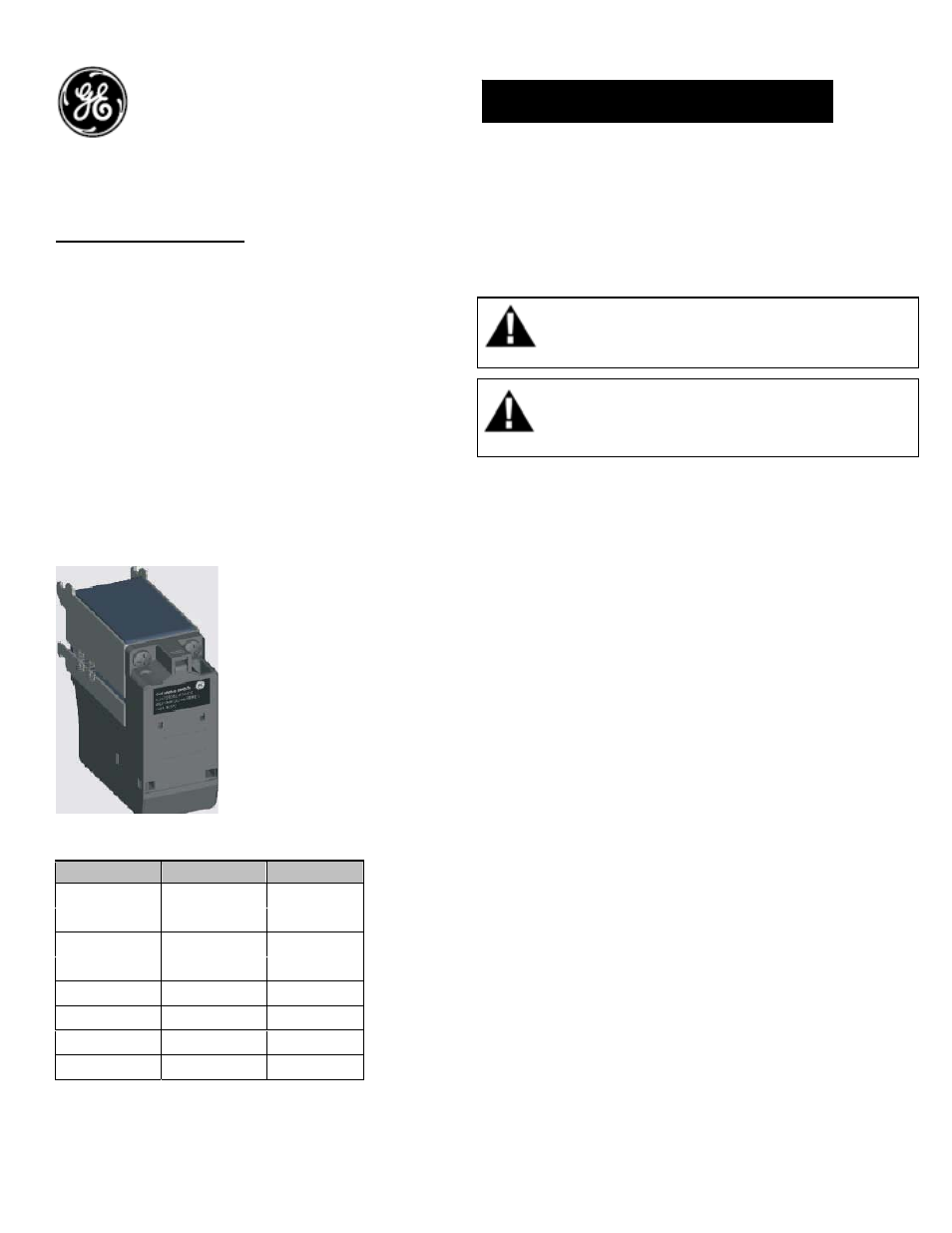

Command Closing Coil:
Command Close coil is used to switch ON the
Power Circuit Breaker remotely. When energized,
it releases the spring charged mechanism thus
ensuring a rapid connection of the main contacts.
The Command Close coil offers an extended
functionality in addition to all the features of the
standard closing coil. Additional connections
allow it to be wired out through the trip unit and
can be accessed electrically through the
communications bus. It also has an extra round
‘ON’ push button that fits onto the breaker front
fascia, which can be locally operated manually to
close the breaker.
Table 1. Catalog Numbers and Ratings
Catalog No DC Voltage AC Voltage
GCCC024DR 24V
GCCC030DR 30V
GCCC048R 48V 48V
GCCC060DR 60-72V
GCCC120R 110-130V 110-130V
GCCC208AR 208V
GCCC240R 220-240V 220-240V
GCCC277R* 250V 250-277V
*Electrical close switch push button cannot be
used with GCCC277R
DEH-41418 Installation Instructions
Accessories
EntelliGuard ® G Circuit Breaker
Command Closing Coil
WARNING: Before installing any accessories, turn the
breaker OFF, disconnect it from all voltage sources,
and discharge the closing spings.
ƒ Inrush Power: 350VA
ƒ Steady state : 50VA
Use the following procedure to install the
Command Closing Coil accessory into the circuit
breaker.
1. Verify that the rating on the Command Closing
Coil identification plate matches the voltage
rating required for the application, as listed in
Table 1.
2. Turn the breaker off and discharge the closing
springs by depressing the OFF and ON buttons in
the sequence OFF-ON-OFF. Verify that the
breaker OFF-ON indicator shows OFF on a green
background and that the charge indicator shows
DISCHARGE on a white background. If installing
in a draw-out type breaker remove breaker from
adaptor (cassette) before continuing.
AVERTISSEMENT: Avant d’installer tout accessoire,
mettre le disjoncteur en position OFF, le déconnecter
de toute tension d’alimentation , et décharger les
resorts d’armement
3. Loosen the 6 screws on front cover (fascia)
using a posidrive screw driver as shown in Fig 1.B
Rotate the charging handle down and slide the
front cover over the handle to remove the front
cover as shown in Fig. 1.C.
1
