GE Industrial Solutions Spectra Series Power Panelboards Circuit Breaker Cover Plate User Manual
Spectra series™ power panelboards, General, Installation

g
Spectra Series™ Power Panelboards
Circuit Breaker Cover Plate
WARNING:
Danger of electrical shock or injury.
Turn
OFF power ahead of the panelboard or
switchboard before working inside the
equipment or removing any component
.
Do
not remove circuit protective devices or any
other component until the power is turned
OFF.
General
These instructions apply to the following circuit breaker
frames: TEY, THQB, and THHQB.
Installation
1. Select the breaker cover supports and breaker covers.
Table 1 lists the catalog numbers of the appropriate
cover supports for various switchboard and
panelboard sizes. Table 2 lists the breaker covers for
various breaker types.
Switchboard or Panelboard Width
Cover Height
27 & 31" Pnlbd
35" Swbd
36 & 40" Pnlbd
40" Swbd
44" Pnlbd
45" Swbd
4
1
/
8
" (3X)
208C1850P4
208C1850P3
208C1850P3
Table 1. Circuit breaker cover support catalog numbers for various
panelboard and switchboard widths.
Switchboard or Panelboard Width
Cover Height
27 & 31" Pnlbd
35" Swbd
36 & 40" Pnlbd
40" Swbd
44" Pnlbd
45" Swbd
THQB, THHQB – Double-branch mount
5
1
/
2
" (4X)
208C4262G10
208C4262G11
208C4262G12
TEY – Double-branch mount
5
1
/
2
" (4X)
208C4262G13
208C4262G14
208C4262G15
Table 2. Circuit breaker cover catalog numbers for various
panelboard and switchboard widths.
2. Install the circuit breaker cover supports.
Attach the
breaker cover supports selected in step 1 to the
breaker module or to the breaker mounting plates,
according to the breaker mounting instructions.
3. Install the circuit breakers
according to the
instructions provided with the breakers.
4. Install the space fillers
to any holes in the filler plate
with no breakers mounted behind. Use the plastic
space filler.
Install the filler from the top side of the breaker cover
plate. Engage the slotted end of the space filler with
the edge of the opening in the breaker cover. Snap
the other end of the filler into place, as shown in
Figure 1.
5. Install the circuit breaker cover.
Snap the assembled
breaker cover over the flexible prongs on the filler
supports, as shown in Figure 2.

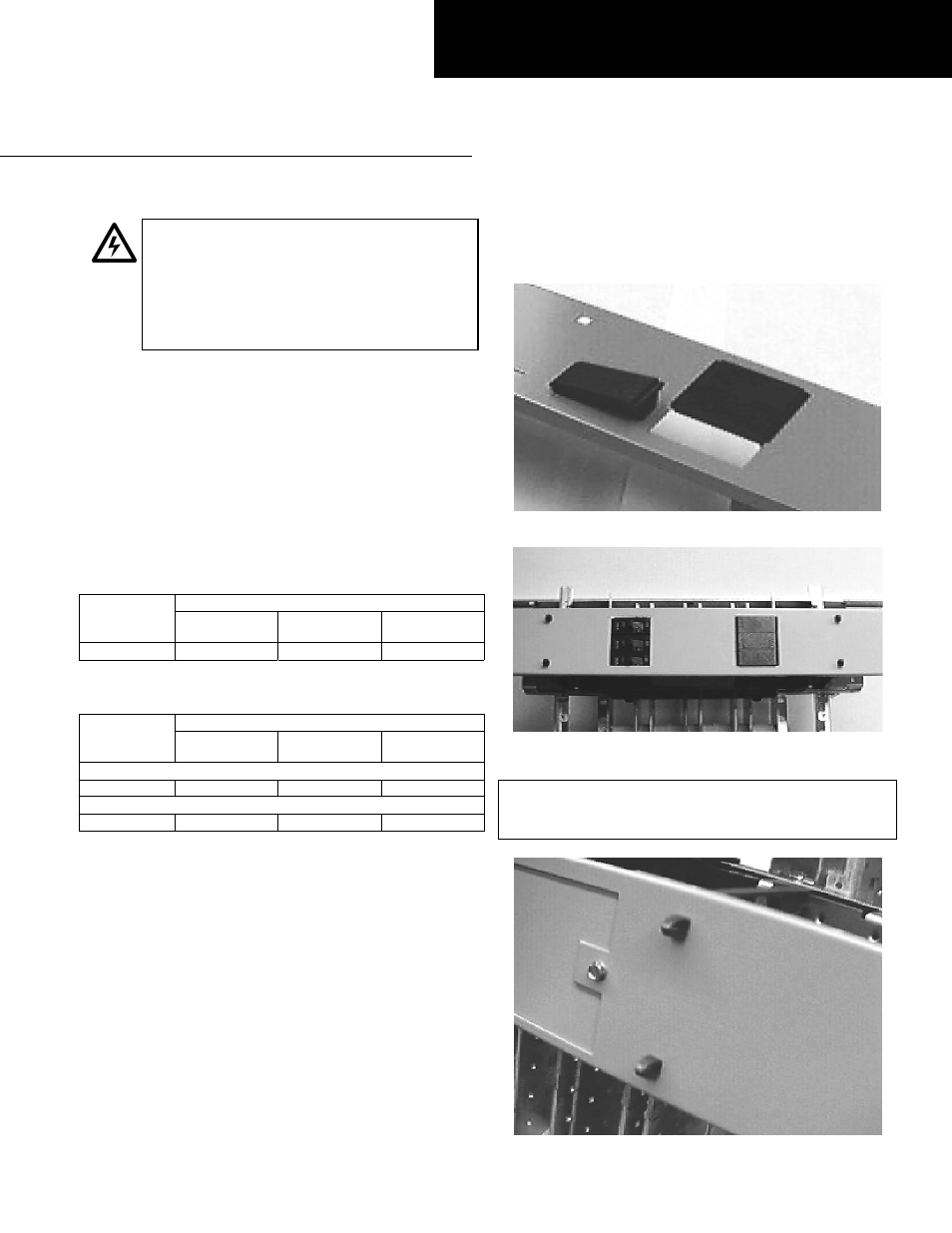

Figure 1. Attaching the space fillers to the filler plate.
Figure 2. Installing the breaker cover to the filler supports.
CAUTION:
To ensure secure mounting, push the breaker
cover completely over the four flexible prongs on top of
the filler supports, as shown in Figure 3.
Figure 3. Breaker cover securely mounted on the flexible prongs.
DEH044 Installation Instructions
R02
