Introduction
Wall mounting Kit:
Wall mounting kit is offered for Fixed version of
Envelope 1 & 2 Breakers
Kit consists of LH and RH mouniting plates to be
fixed in to the Breaker.
Catalog Number:
Catalog No Description
GFMTG
Wall Mounting kit
Use the following procedure to install the Wall
mounting brackets.
1. Turn the breaker off and discharge the closing
springs by depressing the OFF and ON buttons in
the sequence OFF-ON-OFF. Verify that the
breaker OFF-ON indicator shows OFF on a green
background and that the charge indicator shows
DISCHARGE on a white background. If installing
in a draw-out type breaker remove breaker from
adaptor (cassette) before continuing
2. Loosen the 6 screws on front cover (fascia)
using a pozidrive screw driver as shown in Fig 1.B
Rotate the charging handle down and slide the
front cover over the handle to remove the front
cover as shown in Fig. 1.
DEH-41383 Installation Instructions
EntelliGuard
®
G Circuit Breaker
Accessories
Wall mounting Kit
WARNING: Before installing any accessories, turn the
breaker OFF, disconnect it from all voltage sources,
and discharge the closing spings.
AVERTISSEMENT: Avant d’installer tout accessoire,
mettre le disjoncteur en position OFF, le déconnecter
de toute tension d’alimentation , et décharger les
resorts d’armement

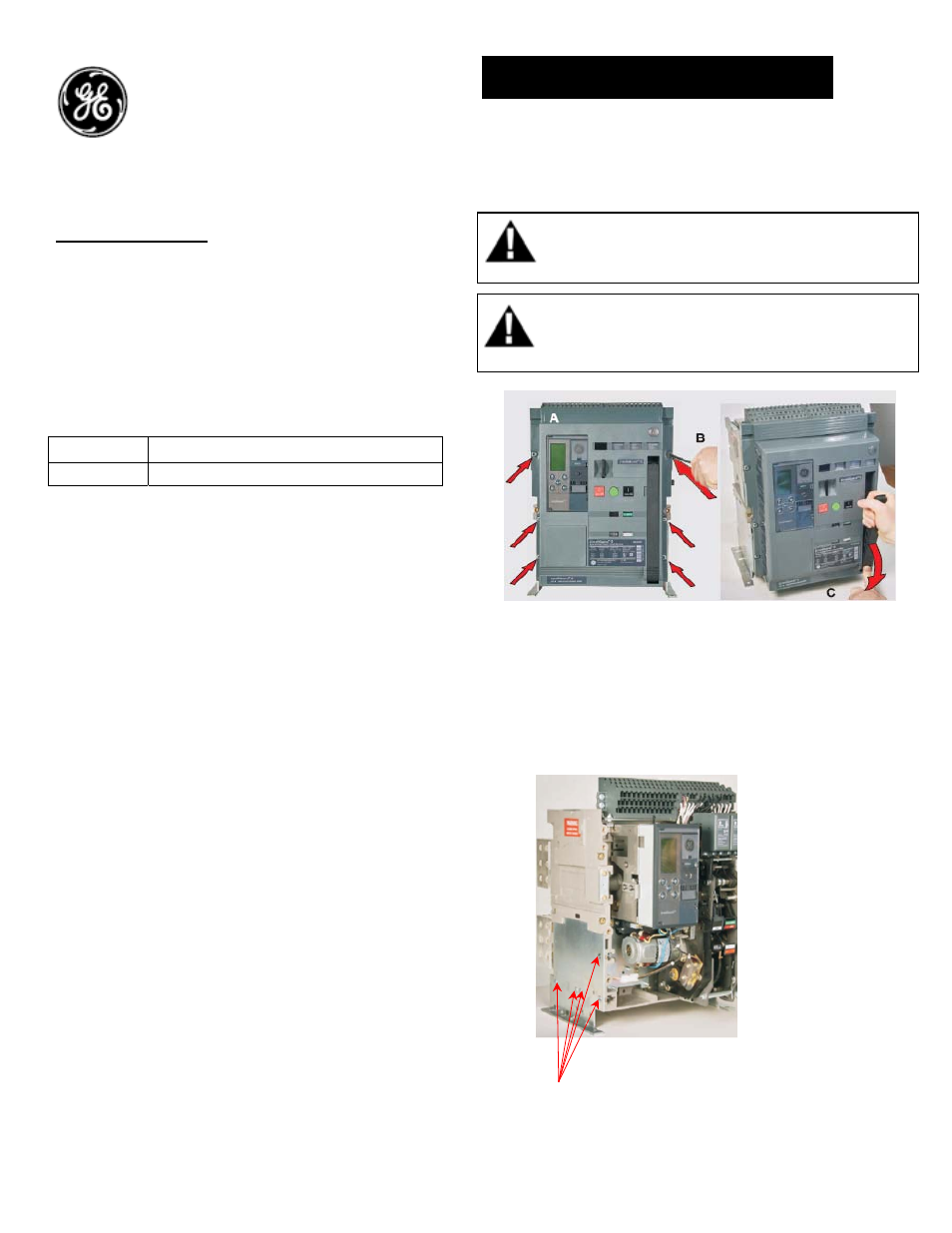

Figure 1. (A) Front Cover (B) Screw Removal (C) Handle
Rotation
3. Remove the mounting plate which is
assembled to the breaker by removing the fixing
screws as shown in Fig. 2.
Fixing screws
Figure 2.
1
