Introduction
Door Flange Kit:
Two types of Door flange kit is provided.
- Fixed version kit
- D/O version kit
Kit is supplied with all mounting screws allowing
the user to mount it to the door.
Catalog Number:
Catalog No Description
GDPRF
Door Flange fixed
GDPRW
Door Flange Draw out
Door Cut out details for Draw out Door flange and
Fixed door flange were shown in Fig-1 & Fig -2
respectively.
Fixing arrangement of Door Flange kit is shown in
Fig-3.
All dimensions are mentioned in mm
DEH-41386 Installation Instructions
EntelliGuard
®
G Circuit Breaker
Accessories
Escutcheon Kit
WARNING: Before installing any accessories, turn the
breaker OFF, disconnect it from all voltage sources,
and discharge the closing spings.
AVERTISSEMENT: Avant d’installer tout accessoire,
mettre le disjoncteur en position OFF, le déconnecter
de toute tension d’alimentation , et décharger les
resorts d’armement

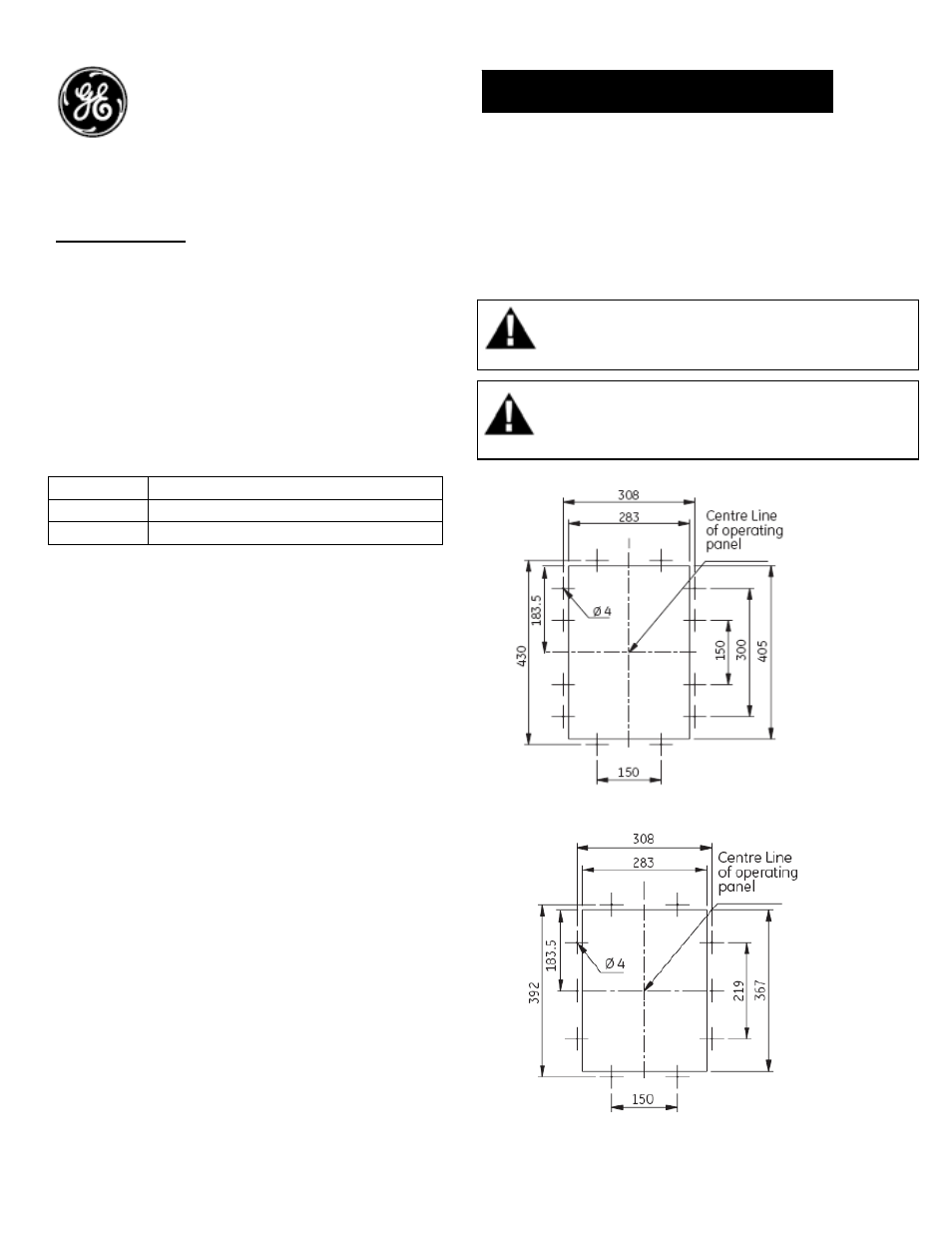

Figure 1 Cut out details for Drawout breaker
