GE Energy
Industrial Solutions
Overview
The General Electric Distribution Cable Extension is
used to provide modular expansion of the Distribution
Cable System. The system is used to carry a variety
of electronic signals between Spectra
®
RMS Molded-
Case Circuit Breakers with microEntelliGuard
TM
or
MicroVersaTrip
®
PM/Plus Trip Units and Distribution
Cable Accessories. Accessories supported by the
Distribution Cable Extension are as follows:
Receptacle End of the Cable Extension
• Power Supply Plate
• Voltage Conditioner Plate
• Power Supply Assembly
• Voltage Conditioner Assembly
• Distribution Cable Junction Box
• Distribution Cable Extension (Plug End)
• Distribution Cable Terminal Block
• Voltage Module
Plug End of the Cable Extension
• Distribution Cable Harness
• Distribution Cable Extension (Receptacle End)
• Spectra
®
RMS Molded-Case Circuit Breaker with
MicroVersaTrip
®
Plus Trip Unit and breaker cable
• Spectra
®
RMS Molded-Case Circuit Breaker with
MicroVersaTrip
®
PM Trip Unit and breaker cable
• Spectra
®
RMS Molded-Case Circuit Breaker with
microEntelliGuard
TM
Trip Unit with a 12-pin breaker
cable

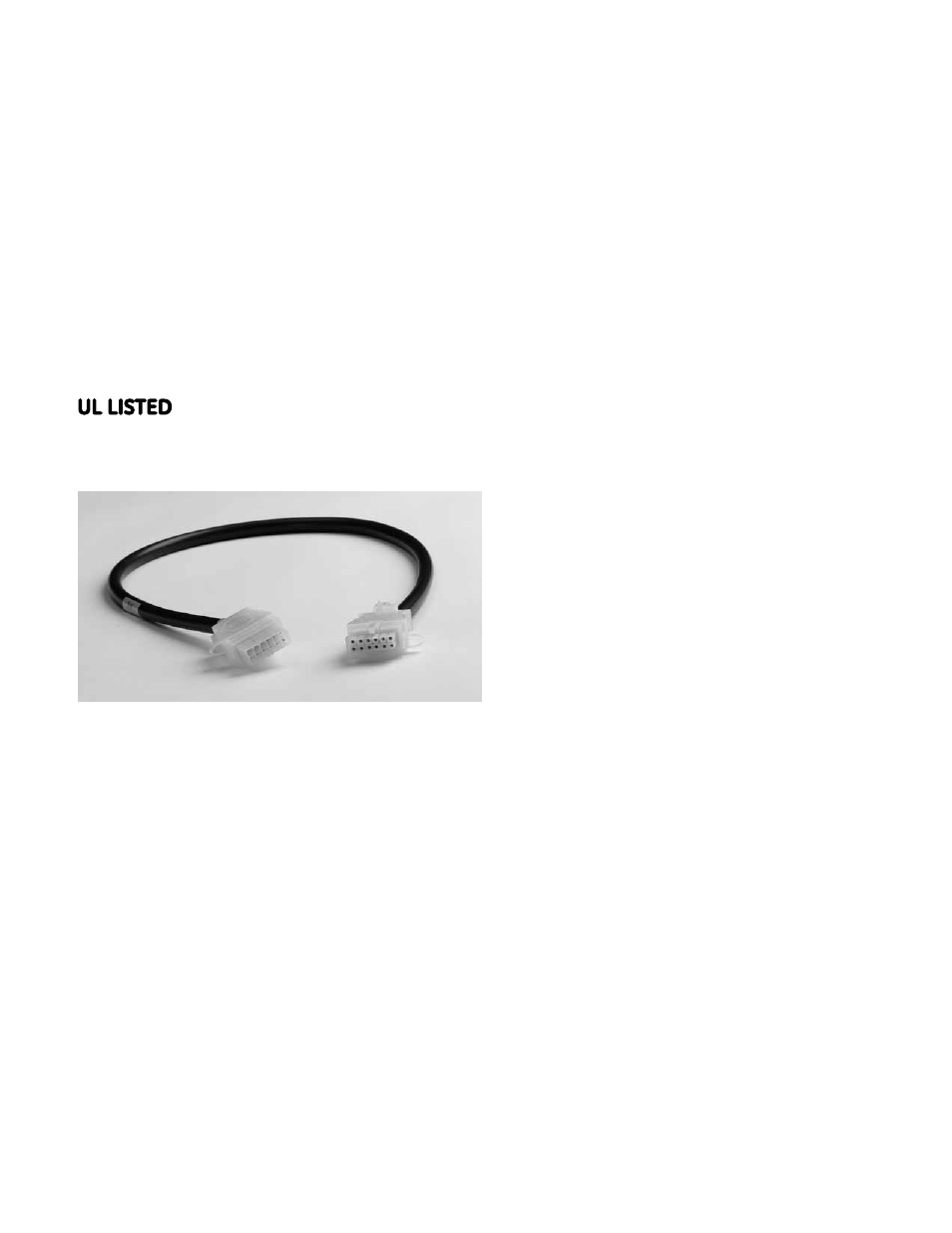

The Distribution Cable Extension is 30 inches in length
and can be group-connected to form a longer cable (the
total system cabling length must not exceed 40 feet).
Because both ends of the Distribution Cable Extension
are different (receptacle end / plug end), you cannot use
it for connections between Spectra
®
RMS Molded-Case
Circuit Breakers and Distribution Cable Accessories;
use the Distribution Cable Harness (Cat. Nos. SDCHA11,
SDCHA30 or SDCHA60) for this application.
GEH-6256 Installation Instructions
Distribution Cable Extension
For Spectra
®
RMS Molded-Case Circuit Breakers
with microEntelliGuard
TM
, MicroVersaTrip
®
PM or MicroVersaTrip
®
Plus Trip Units
For Catalog Number SDCEA30
Circuit Breaker Accessory
