Introduction
Door Interlock Kit:
A door interlock mechanism may be fitted inside
the cassette on the right for Left hinged door or
Left for Right hinged door. Specify whether door is
Left Hand or Right hand hinged when ordering.

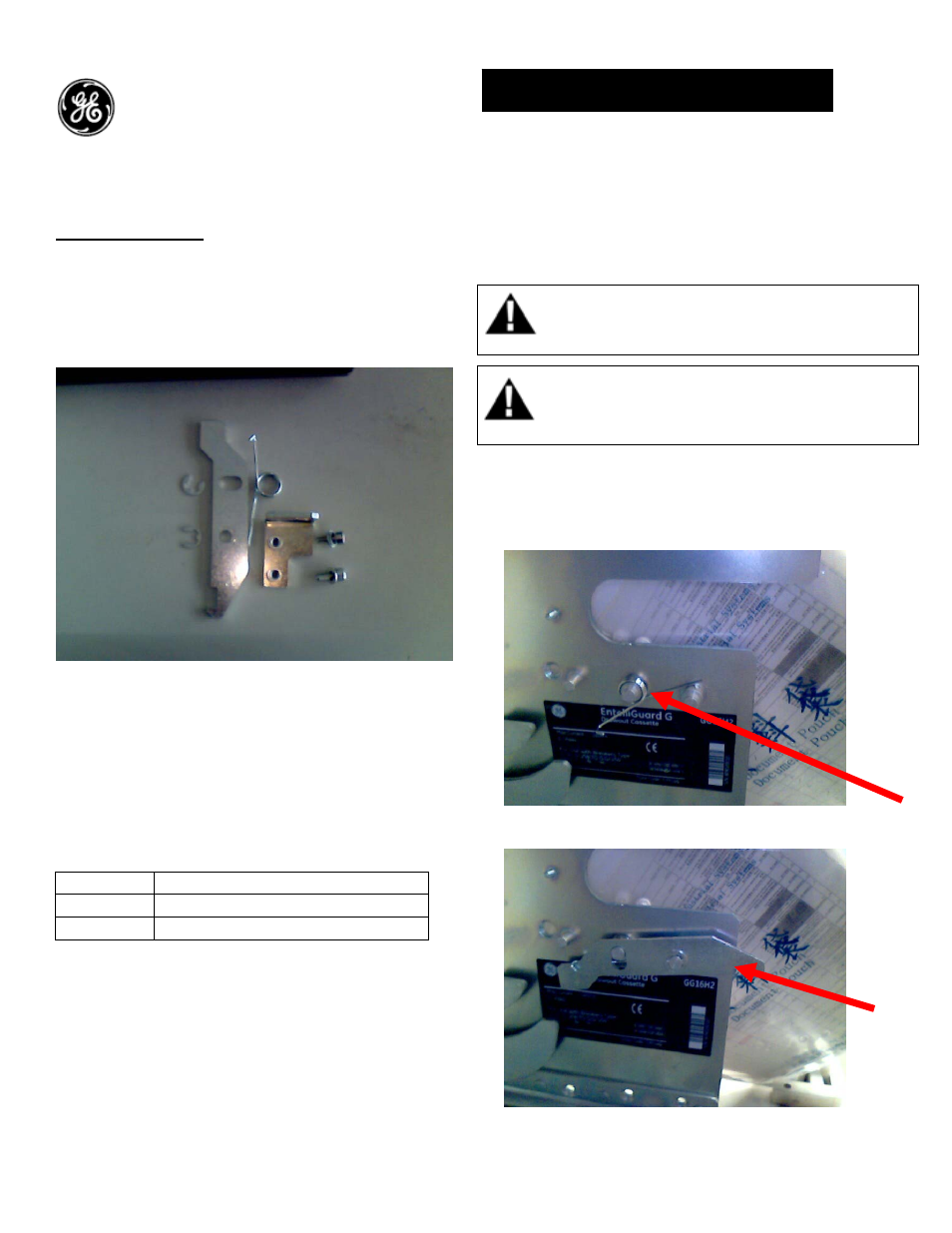

Figure 1
Interlock Packs
Each pack contains an interlock lever, a helical
spring, circlips (Fig. 1). A door bracket & its
mounting screws, washers are also included
Catalog No.
Catalog No Description
GLHD
Left Hand door interlock
GRHD
Right Hand door interlock
Use the following procedure to install the Door
Interlock Kit accessory into the circuit breaker.
1. Place the spring over spring pin protruding
from cassette side plate as shown in fig 2.
Figure 2
Figure 3
EntelliGuard
®
G Circuit Breaker
Accessories
Door Interlock Kit
WARNING: Before installing any accessories, turn the
breaker OFF, disconnect it from all voltage sources,
and discharge the closing spings.
AVERTISSEMENT: Avant d’installer tout accessoire,
mettre le disjoncteur en position OFF, le déconnecter
de toute tension d’alimentation , et décharger les
resorts d’armement
DEH-41377 Installation Instructions
