GE Industrial Solutions CAR1812FP series - Manual (Page 7)

GE Energy
CAR1812FP series dc-dc converter
Input: 85Vac to 264Vac; Output: 12 Vdc @ 1800W; 3.3Vdc or 5 Vdc @ 1A
Contact Us
For more information, call us at
USA/Canada:
+1 888 546 3243 , or +1 972 244 9288
Asia-Pacific:
+86.021.54279977*808
Europe, Middle-East and Africa:
+49.89.878067-280
India:
+91.80.28411633
www.ge.com/powerelectronics
November 1, 2012 ©2012 General Electric Company. All rights reserved. Page 7

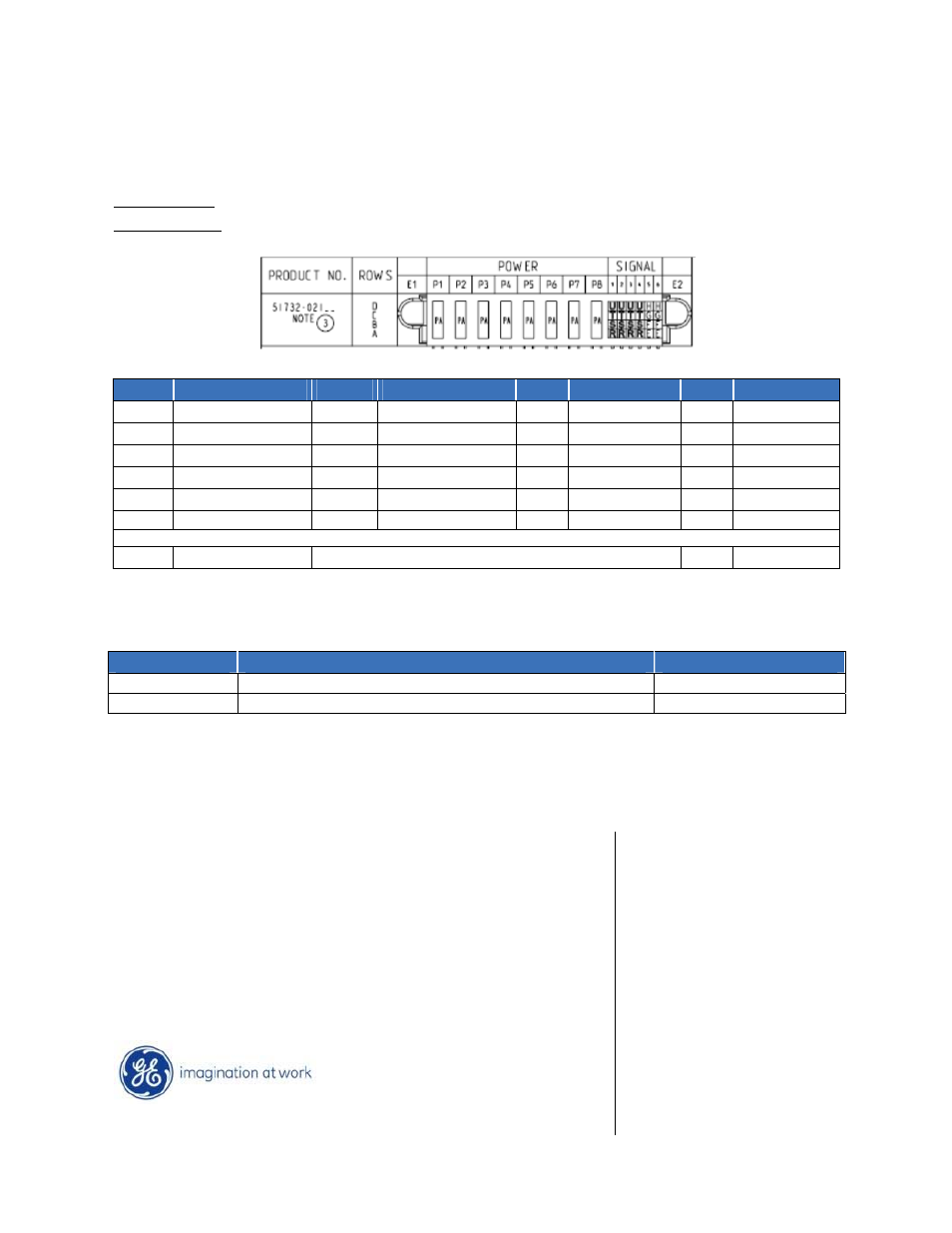

Connector Pin Assignments
Input Connector: IEC320, C20 ; Mating connector: IEC320, C19
Output Connector: FCI Berg P/N: 51732-021 or equivalent
Mating connector: 51762-10802400ABLF (right angle mount)
Pin Function Pin Function Pin Function Pin Function
A1 Vstb B1 Fault C1 ISHARE D1 N/C
A2 Vstb Return B2 N/C C2 N/C D2 N/C
A3 Signal Return B3 Enable: “0” –ON “1” -OFF C3 N/C D3 Remote ON/OFF
A4 Write Protect (WP) B4 PS Present C4 I 2 C Address (A0) D4 DC OK
A5 Remote Sense (+) B5 SDA (I 2 C bus) C5 I 2 C Address (A1) D5 AC OK
A6 Remote Sense (-) B6 SCL (I 2 C bus) C6 I 2 C Address (A2) D6 SMBAlert
P1 - P4 Output Return P5 – P8 +Vout
Ordering Information
Please contact your GE Energy Sales Representative for pricing, availability and optional features.
PRODUCT DESCRIPTION PART NUMBER
1800W Front-End +12Vout DC INPUT Front-End w/Bezel, 3.3Vstb CAR1812FPBXXZ01A
1800W Front-End +12Vout AC INPUT Front-End w/o Bezel, 5Vstb CAR1812FPXX5Z01A
