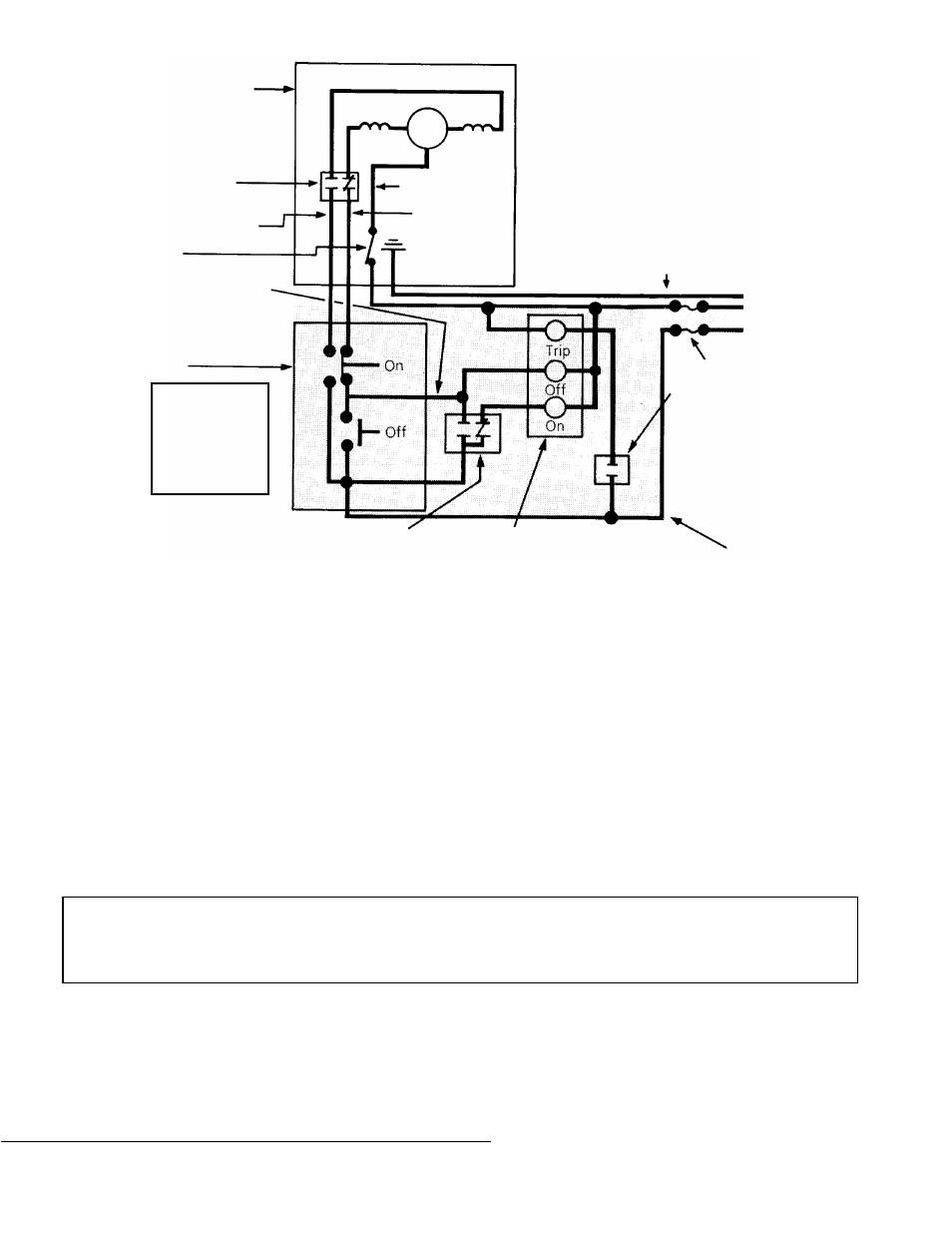

Figure 5. Wiring diagram for SE/SF Motor-Operated Mechanism.
(All switch contacts are shown with the circuit breaker in the ON position.)
g
GE Industrial Systems
General Electric Company
41 Woodford Ave., Plainville, CT 06062
GEH5613 R01 0989 © 1989 General Electric Company
These instructions do not cover all details or variations in equipment nor do they provide for every possible contingency that
may be met in connection with installation, operation, or maintenance. Should further information be desired or should
particular problems arise that are not covered sufficiently for the purchaser’s purposes, the matter should be referred to the
GE Company.
Motor Motor-Operated
Mechanism
Limit
Switch
Yellow–ON
Interlock
Switch
This Line
Automatic
Reset Only
Auto/Reset not
Intended for Use
on dc Applications
Green
Black–Common
Red–OFF
Grd
L1
L2
Fuses
For Trip Indication
Use Circuit Breaker
with Internal Bell
Alarm Switch
Customer-
Supplied
Equipment
Indication Lights
(Supplied by Customer)
For Automatic Reset and ON
& OFF Lights Use Circuit
Breaker with Internal
Auxiliary Switch
Push-Button
Control Station
NOTE: When
using automatic
reset, the ON
push-button must
be SPDT type
and wired as
shown.
