Overview

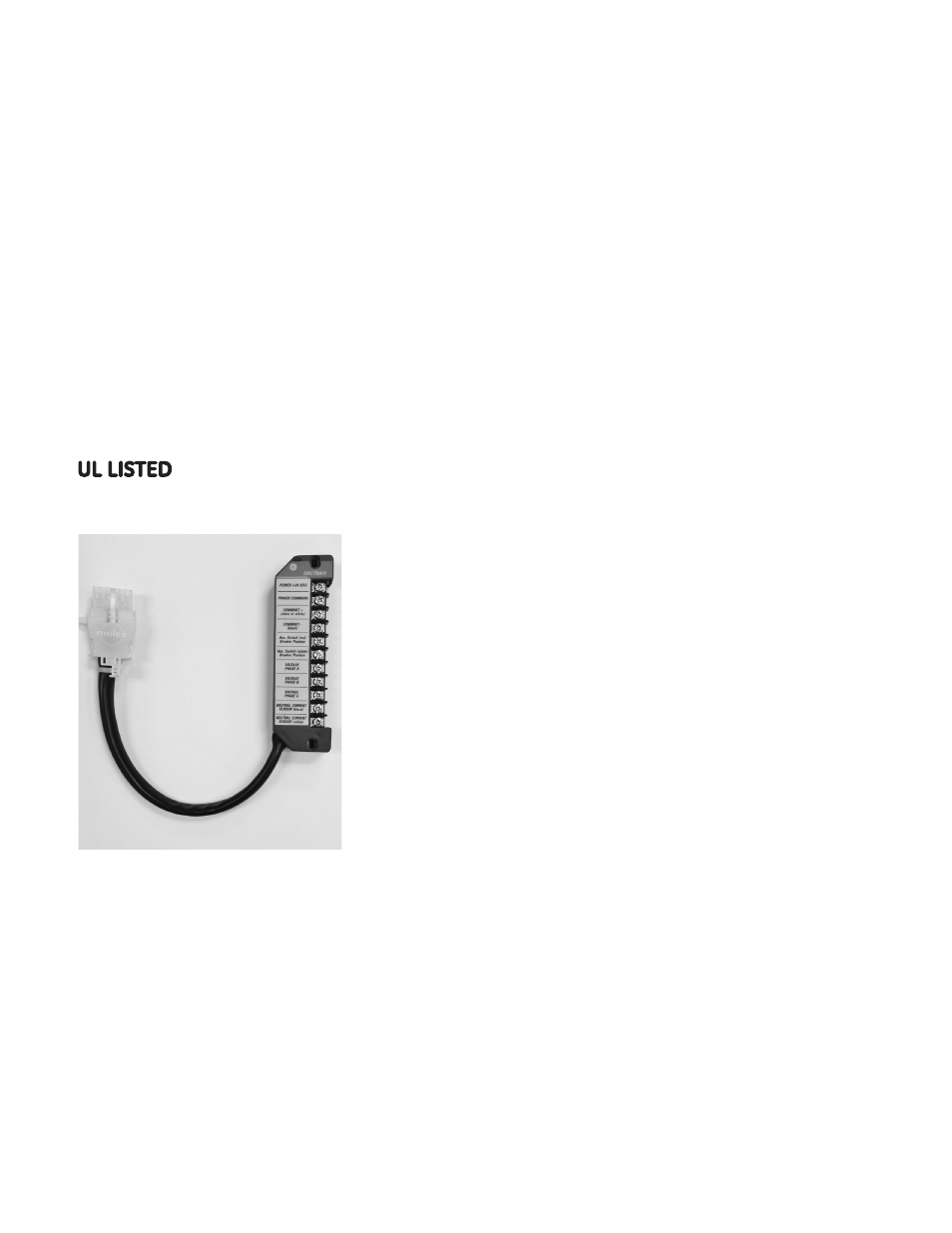

The General Electric Distribution Cable Terminal Block
is a modular attachment primarily used to provide an
alternate means of connecting input/output signals
to Spectra
® RMS Molded-Case Circuit Breakers with
microEntelliGuard TM or MicroVersaTrip ® PM/Plus Trip
Units. The terminal block connection points are as
follows:
Spectra ® RMS Breaker with microEntelliGuard TM or
MicroVersaTrip ® PM Trip Unit
• Control power (+24vdc)
• Control power (-common)
• System communications (Comm. +)
• System communications (Comm. -)
• Breaker position (Aux. Switch red)
• Breaker position (Aux. Switch white)
• Voltage A φ (must be from Voltage Module or Voltage
Conditioner Plate or Voltage Conditioner Assembly)
• Voltage B φ (must be from Voltage Module or Voltage
Conditioner Plate or Voltage Conditioner Assembly)
• Voltage C φ (must be from Voltage Module or Voltage
Conditioner Plate or Voltage Conditioner Assembly)
• Neutral current sensor - black (for equipment
ground fault) 1
• Neutral current sensor - white (for equipment
ground fault) 1
Spectra ® RMS Breaker with MicroVersaTrip ® Plus or
microEntelliGuard TM (with Basic Metering) Trip Unit
• Control power (+24vdc)
• Control power (-common)
• Neutral current sensor - black (for equipment
ground fault) 1
• Neutral current sensor - white (for equipment
ground fault) 1
GEH-6257 Installation Instructions
Distribution Cable
Terminal Block
For Spectra ® RMS Molded-Case Circuit Breakers
with microEntelliGuard TM , MicroVersaTrip ® PM or MicroVersaTrip ® Plus Trip Units
For Catalog Number SDCTBA11
Circuit Breaker Accessory
GE Energy
Industrial Solutions
1 Neutral current sensor input is required for 3Ø/4W or 1Ø/3W systems.
For 3Ø/3W systems do not make any connections.
