Introduction

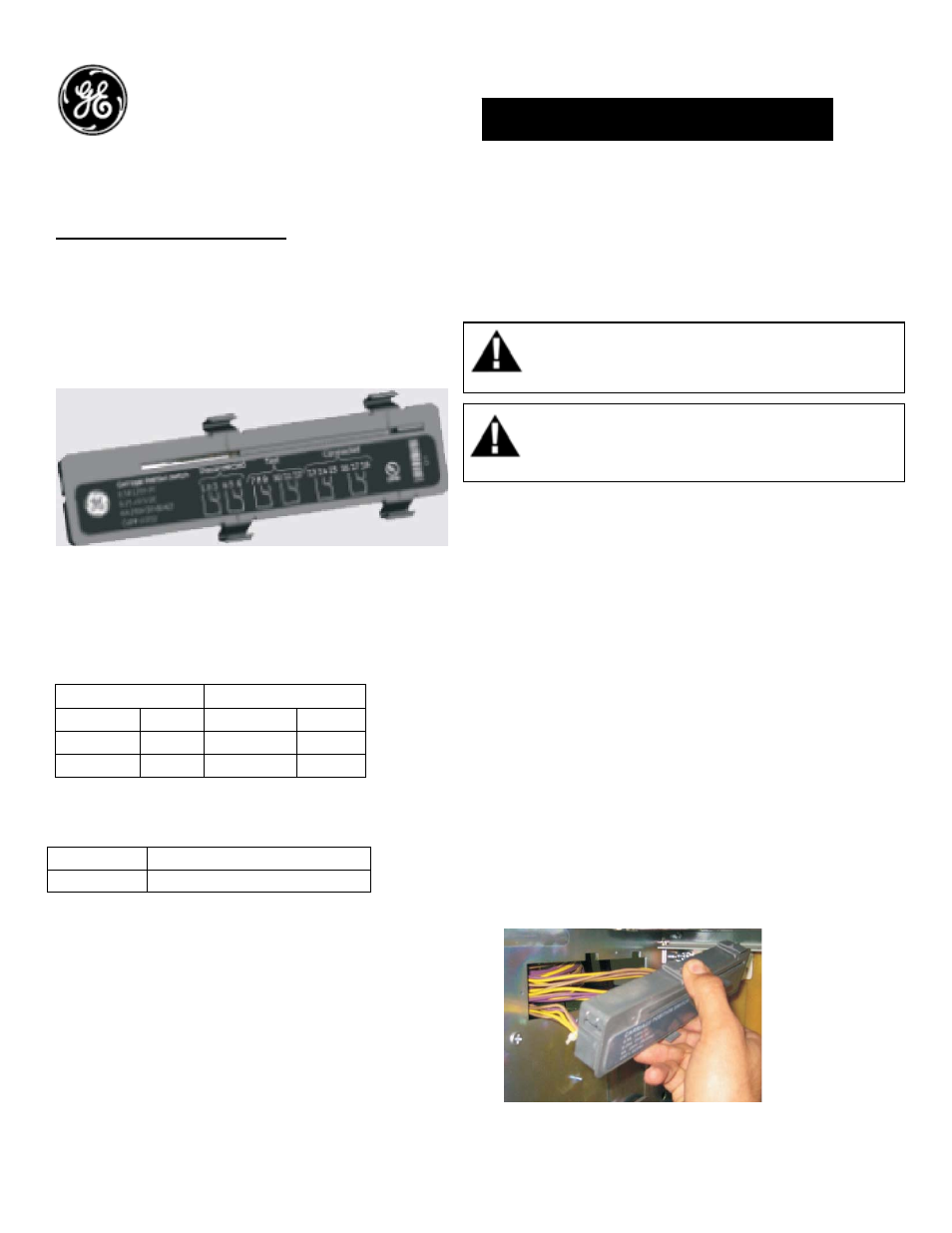

Carriage Position Switch Kit:
Carriage position switch indicates the breaker
status whether it is in the Disconnect, Test or
Connected positions of a draw out circuit breaker.
The Carriage Position Switch comes in two
options: one switch or two switches per position.
Electrical characteristics Carriage Position
Switch Contacts
Table 1. Ratings.
AC Ratings
DC Ratings
Voltage Amps Voltage Amps
120V 10A 125V 0.5A
250V 10A 250V 0.25A
Contacts are Power Rated
Table2. Cat No.
GCPS1R
1 NO/1 NC per position
GCPS2R
2 NO/2 NC per position
The Switches are “change over switches” with NO,
NC & Com terminals. (Form C Contact).
DEH-41403 Installation Instructions
EntelliGuard
®
G Circuit Breaker
Accessories
Carriage Position Switch Kit
WARNING: Before installing any accessories, turn the
breaker OFF, disconnect it from all voltage sources,
and discharge the closing spings.
AVERTISSEMENT: Avant d’installer tout accessoire,
mettre le disjoncteur en position OFF, le déconnecter
de toute tension d’alimentation , et décharger les
resorts d’armement
Use the following procedure to install the Position
Switch Kit accessory into the circuit breaker.
1. Verify that the rating and the catalogue on the
Position Switch Kit identification plate matches
the voltage rating required for the application,
as listed in Table 1
2. Before installing ensure the main power
sources are disconnected and no power to the
breaker main terminals
3. Rack out and remove the Breaker from
Cassette if it is installed
4. Insert the carriage position switch wires from
the opening from the inside of the cassette
and pull out as shown in Fig. 1
Figure 1. Wire insertion.
