GE Industrial Solutions CR460 LIGHTING CONTACTOR SERIES User Manual
Page 3
3

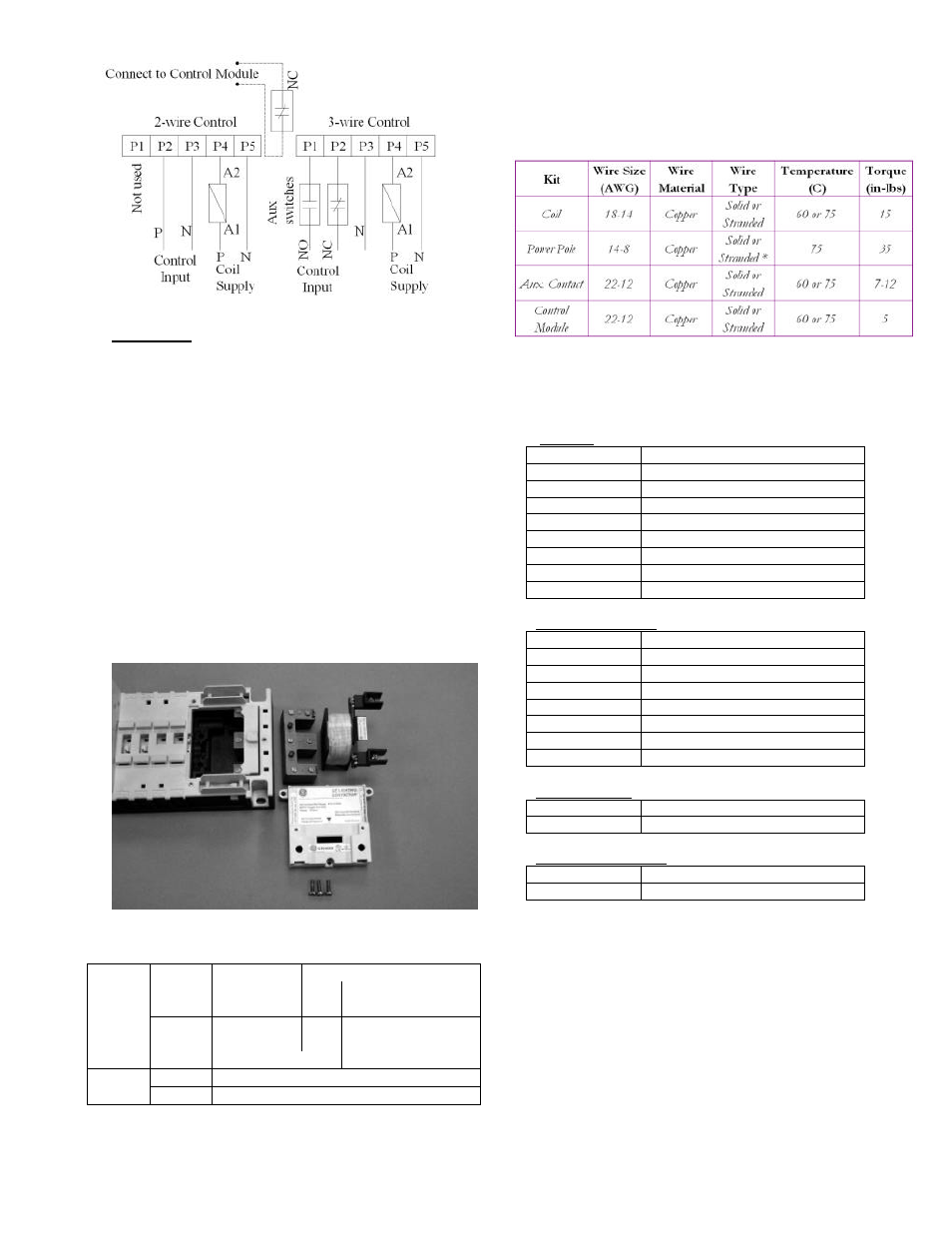

Figure – 6
5
COIL KITS
5.1 Description
A wide range of coils is available for both electrically held and
mechanically held lighting contactor. Refer to the Ordering
Detail section for more information about the coil kit catalog
numbers and voltages available.
Note: For mechanically held lighting contactor, only use coil
rated up to 277 VAC maximum. Use control power
transformer for higher voltages.
5.2 Installation
1. Disconnect all power. Replace and mount the coil on the
contactor as shown in Figure 7.
2. For mechanically held contactors, remove all wires from
the control module and remove the coil cover along with
control module.
Figure – 7
Table C
5.3 Wiring
Coil terminal can accept wires from #18 AWG to #14 AWG
(either solid or stranded) as single or combination of two wires
(Refer to Table C below for valid wire combination). Refer to
Table D below for required torque.
Table D
* #8 AWG is stranded only for the power pole.
Ordering details
Coil Kits:
CR460XCC
24V 60Hz /20V 50Hz coil
CR460XCD
28V 60Hz / 24V 50Hz coil
CR460XCJ
115-120V 60Hz / 110V 50Hz coil
CR460XCL
200-208V 60Hz coil
CR460XCS
230-240V 60Hz / 220V 50Hz coil
CR460XCN
265- 277V 60Hz / 240V 50Hz coil
CR460XCT
347V 60Hz coil
CR460XCU
460-480V 60Hz / 440V 50Hz coil
CR460XCY
575-600V 60Hz / 550V 50 Hz
Control Module Kits:
CR460XMB
2 wire 24 Vac 60/50 Hz
CR460XMC
2 wire 110-120 Vac 60/50 Hz
CR460XMD
2 wire 200-277 Vac 60/50 Hz
CR460XME
2 wire 12-18 Vdc
CR460XMM
3 wire 24 Vac 60/50 Hz
CR460XMN
3 wire 110-120 Vac 60/50 Hz
CR460XMP
3 wire 200-277 Vac 60/50 Hz
CR460XMR
3 wire 12-18 Vdc
Power Pole Kits:
CR460XP31
Single Power Pole
CR460XP32
Double Power Pole
Auxiliary Contact Kits:
CR460XB1
1 NO/NC
CR460XB2
2 NO/NC
Note
:
These instructions do not purport to cover all details or variations in
equipment nor to provide for every possible contingency to be met in
connection with installation, operation, or maintenance. Should further
information be desired or should particular problems arise which are not
covered sufficiently for the Purchaser’s purpose, the matter should be referred
to the nearest General Electric sales office.
#14 AWG
#16 AWG
#18 AWG
Size
Type
Solid Stranded Solid Stranded Solid Stranded
Solid
X
X
X
X
X
X
#14 AWG
Stranded
X
X
X
X
X
Solid
X
X
X
X
#16 AWG
Stranded
X
X
X
Solid
X
X
#18 AWG
Stranded
X
