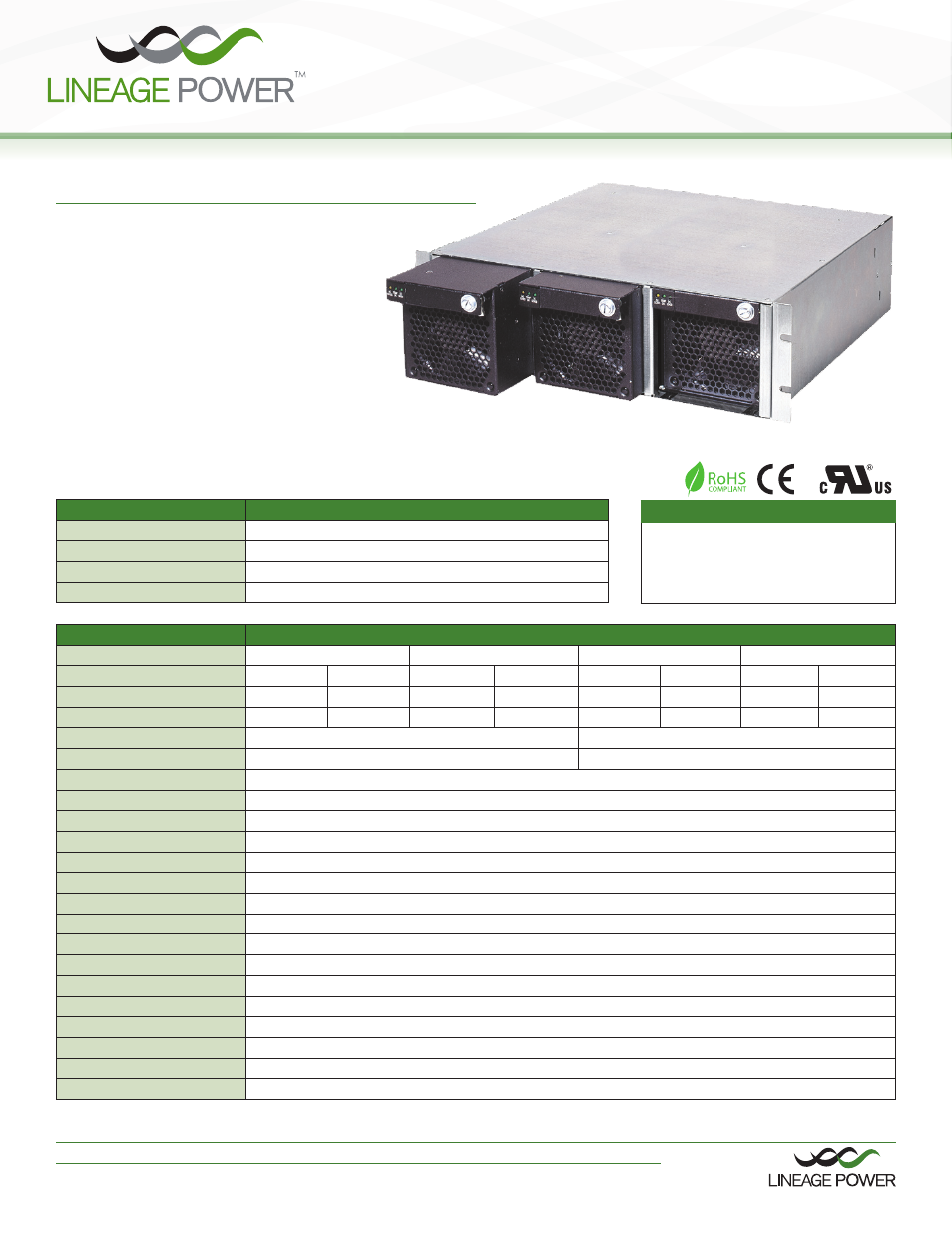

ACE4000
3 Bay / 12 Kilowatt Power Shelf
rev 100506
•
3U High
•
Up to 12,000W in a 19” Rack
•
Single & Three Phase Input Models
•
Fits 3 Hot-Plug / N+1 Redundant Rectifiers
•
Current Sharing and Remote Sensing
•
World-wide safety approvals
•
Optional 1U Controller Available
KEY MARKETS & APPLICATIONS
•
Central Office
•
Cellular Base Stations
•
Telecom Access Nodes
•
Wireless
•
Satellite Hubs
•
RF Amplifiers
•
Broadband Switchers
•
PCS Installations
•
XDSL Access Networks
•
Factory Automation
FEATURES
BENEFITS
Single wire current sharing
Provide system stress balancing and increases reliability
Constant power characteristic
Better suited for battery charging applications
No Minimum Load
Eliminates need for pre-load resistors. Reduces cost of ownership.
Optional 1U High Controller
Addresses telecom application requirements for redundant operation
SPECIFICATIONS
12,000 Watt Power Shelf for CAR4000 Front End Modules
Rack Model Number
ACE403
ACE403N
ACE433
ACE433N
Rectifier Module Part Number
CAR4010L1-1A
CAR4010K1-1A
CAR4010L1N-1A
CAR4010K1N-1A
CAR4030L1-1A
CAR4030K1-1A
CAR4030L1N-1A
CAR4030K1N-1A
Voltage Range
+43.2~52.8 VDC
+21.6~26.4 VDC
-43.2~52.8 VDC
-21.6~26.4 VDC
+43.2~52.8 VDC
+21.6~26.4 VDC
-43.2~52.8 VDC
-21.6~26.4 VDC
Output Current
250A @ +48Vout
500A @ +24Vout
250A @ -48Vout
500A @ -24Vout
250A @ +48Vout
500A @ +24Vout
250A @ -48Vout
500A @ -24Vout
Input Voltage
Single Phase 180-264 VAC / 47-63 Hz
Three Phase 180-264 VAC / 47-63 Hz
Maximum Input Current (per module)
25A @ Full Load and 180 VAC Operation (per module)
15A per phase @ Full Load and 180 VAC Operation (per module)
Maximum Output Power
12,000 Total Output Power (8,000 Watts Redundant Output Power)
AC Input Feeds
Individual Input Feeds for each rectifier for 4mm2 cable
Input Protection
Each CAR rectifier module is equipped with it's own internal fuse
Efficiency
90% typical at 230VAC
Regulation (Line & Load)
+/- 0.5% of V1
Ripple & Noise
1% of V1 (pk-pk) - using 10µF tantalum cap. and 0.1µF ceramic cap.
Load Sharing
Single wire. +/- 5% of nominal current
DC Bus
Rectifiers connected in parallel. Floating bus with common "+". Maximum current is 250A
Status Indicators
DC Good and Temperature OK (Green), AC Good (Amber)
Alarm Signals
Over Temperature, Over/Under Voltage, No Power, Module not present
Battery Interface
RJ45 signal connector per rectifier. RS232 for programming via laptop (with Controller).
Temperature Range
0 to 50°C at rated output power. Derates linearly to 60°C at 2.2% per °C
Shock & Vibration
Per MIL STD-810F, NEBS Compliant to GR 63 Core
EMI / EMC
Meets EN61000-3-2, -3 CISPR22 and FCC Part 15 Class A, Bellcore GR-1089-Core
Safety Approvals
UL: 478, 1012, 1950; CSA 22.2 No. 650; IEC: 380, 435, 950; VDE: 0804, 0806; & CE Mark (LVD)
Dimensions
Chassis Measures 18.00”/457.2mm (depth) x 17.165”/436.0mm (width) x 5.12”/132.1mm (height)
