Page 4
EntelliGuard-G
Instruction sheet
Gebrauchsanleitung
Restricted Neutral
Position
Unrestricted
Neutral Position

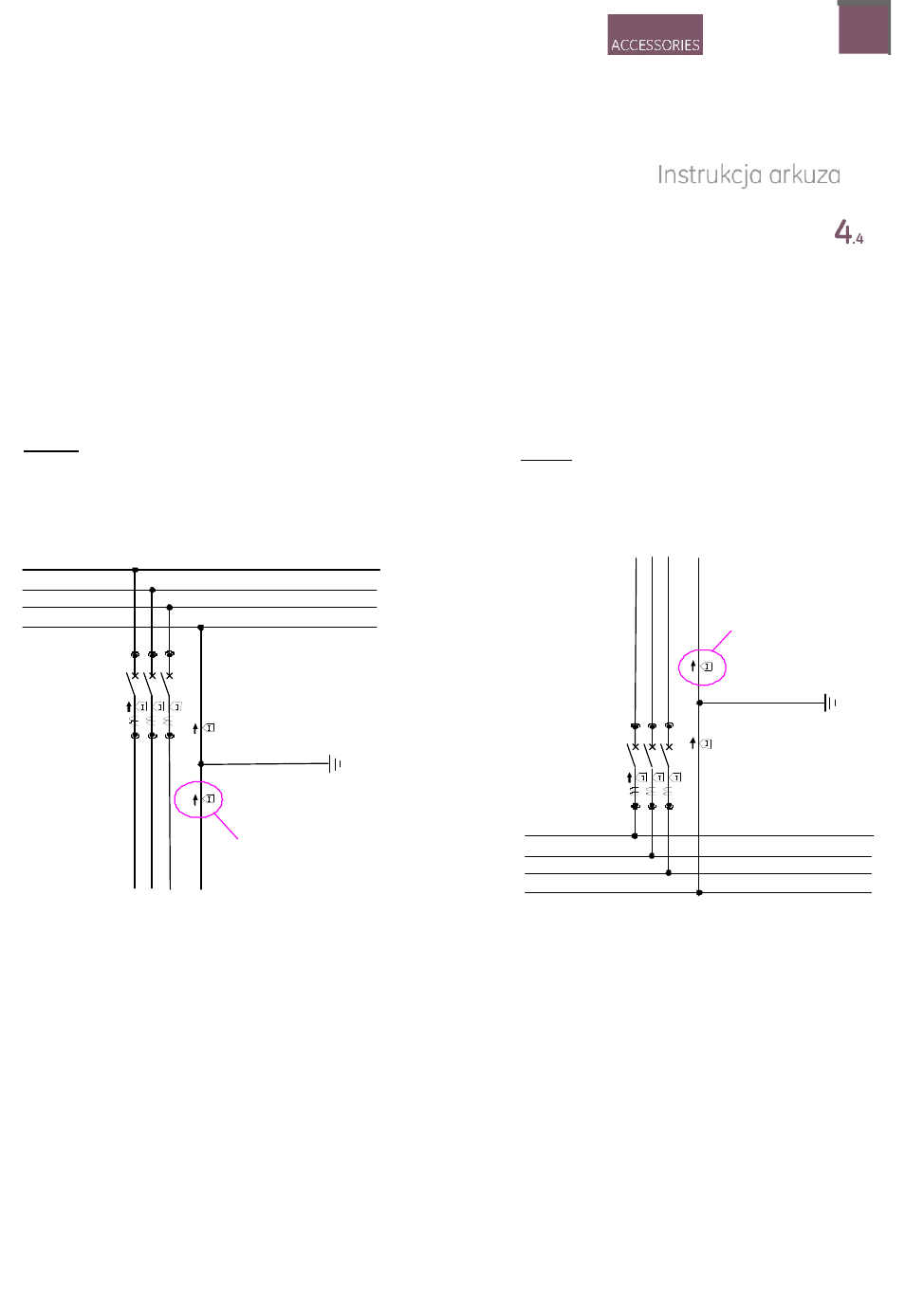

Figure D.
Diagram illustrating neutral rogowski coil fixing position
and directions for applications where busbars connected
to top terminals and cables connected to bottom terminal
of ACB.
Termination at Secondary
disconnect terminals
+ve to A37 & -ve to A36
Arrow mark on rogowski
points in this direction
Restricted Neutral
Position
Unrestricted
Neutral Position
Figure E.
Diagram illustrating neutral rogowski coil fixing position
and direction for applications where bus bars connected
to bottom terminals and cables connected to top
terminals of ACB.
Termination at Secondary
disconnect terminals
+ve to A37 & -ve to A36
Arrow mark on rogowski
points in this direction
4.4.9-03
