GE Industrial Solutions ACE254RUW48 - Manual (Page 2)

www.lineagepower.com/oem
Lineage Power Lineage Power Lineage Power (China)
3000 Skyline Dr. 2841 Dow Avenue 1353 Chenqiao Road, Shanghai Sengpu Industrial Park
Mesquite, TX 75149 Tustin, CA 92780 USA Shanghai, 201401 China
Phone: (972) 284-2000 Phone: (714) 544-6665 Phone: 021 6710 8910
rev 100506

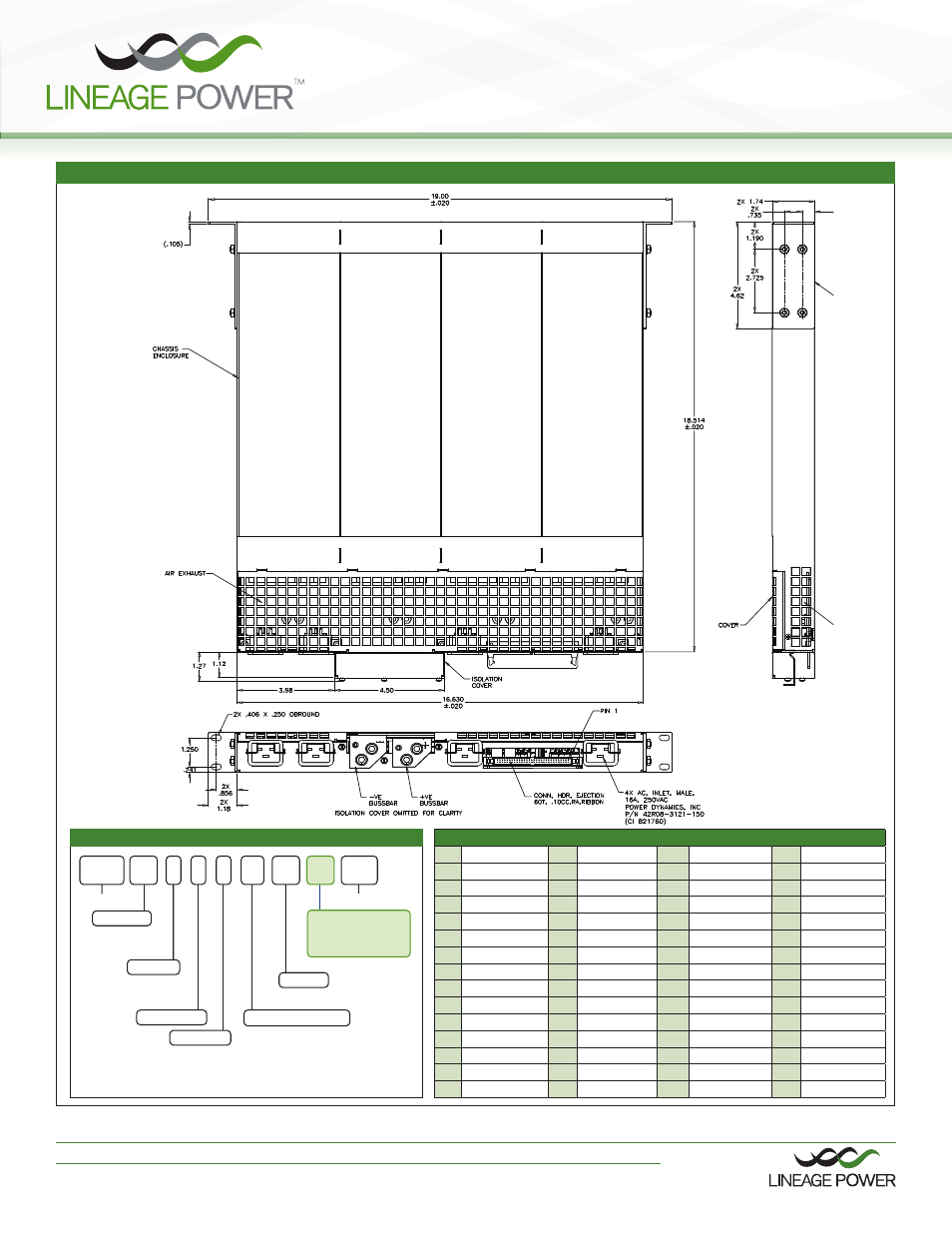

OUTLINE DRAWING
PIN OUT INFORMATION
1 AC OK 1 16 FAULT 2 31 - 46 SDA
2 DC OK 1 17 AC OK 3 32 FAULT 4 47 WP
3 MODPRES 1 18 DC OK 3 33 - 48 RS+
4 TEMP OK 1 19 MODPRES 3 34 - 49 RS-
5 ON/OFF 1 20 TEMP OK 3 35 - 50 Signal RTN
6 I MON 1 21 ON/OFF 3 36 - 51 -
7 - 22 I MON 3 37 - 52 3.3VSB
8 FAULT 1 23 - 38 - 53 3.3VSB
9 AC OK 2 24 FAULT 3 39 - 54 3.3VSB
10 DC OK 2 25 AC OK 4 40 - 55 3.3VSB
11 MODPRES 2 26 DC OK 4 41 - 56 -
12 TEMP OK 2 27 MODPRES 4 42 I_SHARE 57 3.3VSB RTN
13 ON/OFF 2 28 TEMP OK 4 43 VPROG 58 3.3VSB RTN
14 I MON 2 29 ON/OFF 4 44 INT 59 3.3VSB RTN
15 - 30 I MON 4 45 SCL 60 3.3VSB RTN
PART NUMBER DEFINITION GUIDE
ACE254RUW48
4 Bay / 10 Kilowatt Power Shelf
ACE 25 4 R U W 48 xx -1A
Series
25=2500W
Output Current
Per Module Blank=Non-compliant
YO=5 of 6 Compliant
ZO=6 of 6 Compliant
RoHS
Rev.
48=48V
Output Voltage
4=4 Bays
Number
of Bays
R=Power Rack
Type W=Without Monitoring
Monitoring
U=Universal
Module Support
(Rectifier/Front End)
