ACE3000
3 Bay / 9 Kilowatt Power Shelf

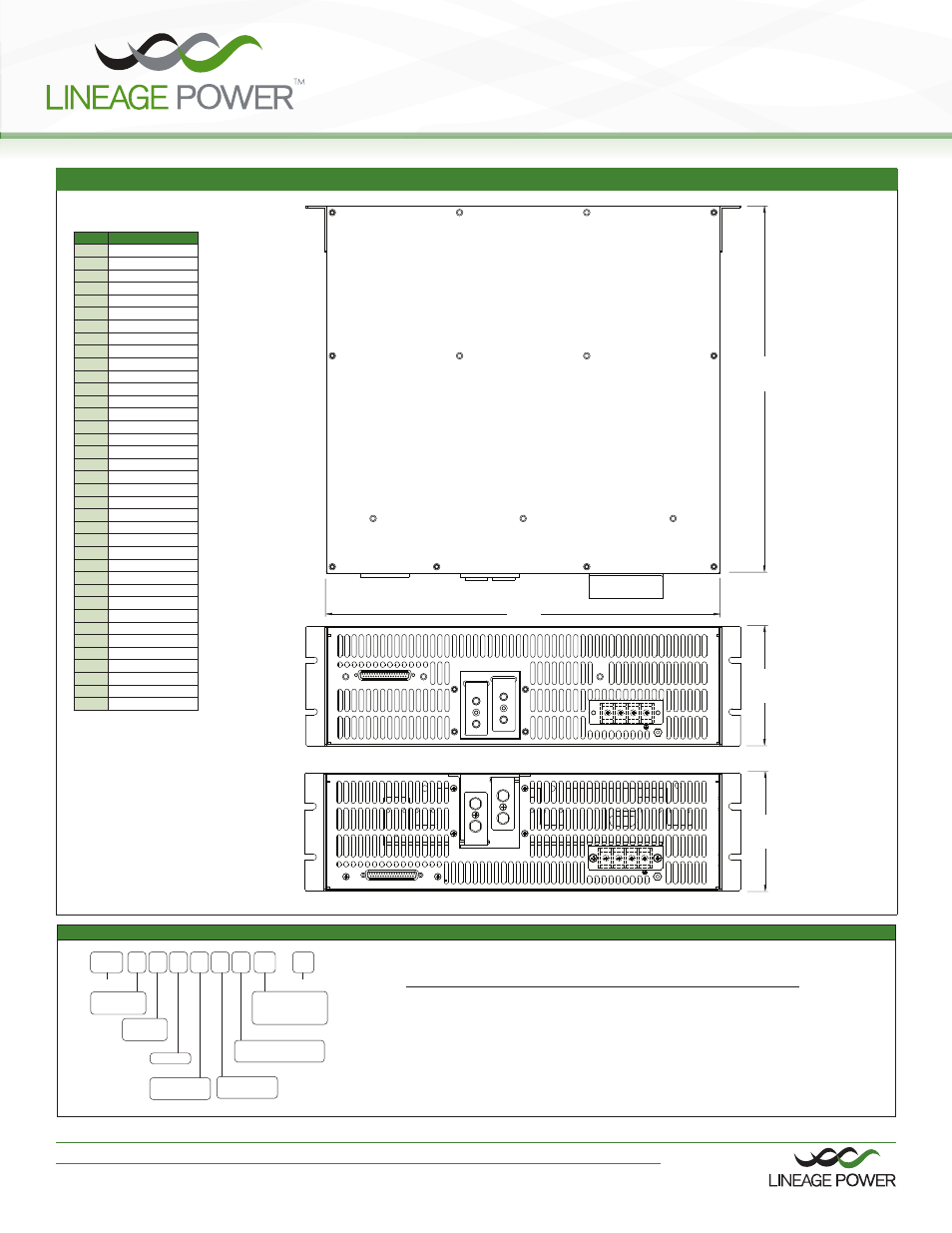

Outline Drawing
PART NUMBER DEFINITION GUIDE
5.18
(131.6)
Series
3=3kW x 3 Bays
9kW Total
Power Blank=Non-Compliant
Y0=5 of 6 Compliant
Z0=6 of 6 Compliant
RoHS Compliance
Rev.
0 = 1Ш
3 = 3Ш
Input Phase
3 = 3 Slots
Output V
Blank = Front End
T = Rectifier
Type
Blank = Positive
N = Negative
Polarity
Blank = Bus Bar
H = Positronic
(front-end only)
Backplane Connector
ACE 3 x 3 x x x xx - 1A
RTN V1
L1 L2 L3
- +
L1 L2 L3
RTN
V1
ALL TELECOM SHELVES FRONT END POWER SHELVES (POSITIVE POLARITY)
FRONT END POWER SHELVES (NEGATIVE POLARITY)
16.00
(406.4)
16.00
(406.4)
17.165
(436)
17.165
(436)
5.18
(131.6)
5.18
(131.6)
3-Phase Input
Connector
V1
V1 RETURN
PIN FUNCTION
1 5vsBRTN
2 TEMP.Ok1
3 PGOOD1
4 ACFAIl1
5 PREsENT1
6 ON/OFF1
7 5vsBRTN
8 TEMP.Ok2
9 PGOOD2
10 ACFAIl2
11 PREsENT2
12 ON/OFF2
13 5vsBRTN
14 TEMP.Ok3
15 PGOOD3
16 ACFAIl3
17 PREsENT3
18 ON/OFF3
19 N/C
20 N/C
21 N/C
22 N/C
23 N/C
24 N/C
25 v1 sENsE
26 RTN sENsE
27 MARGIN 1
28 MARGIN 2
29 N/C
30 I-shARE
31 RTN
32 N/C
33 5vsBRTN
34 5vsBRTN
35 5vsB
36 5vsB
37 N/C
status / Control Connector
37 Pin D sub Connector
5.18
(131.6)
Series
3=3kW x 3 Bays
9kW Total
Power Blank=Non-Compliant
Y0=5 of 6 Compliant
Z0=6 of 6 Compliant
RoHS Compliance
Rev.
0 = 1Ш
3 = 3Ш
Input Phase
3 = 3 Slots
Output V
Blank = Front End
T = Rectifier
Type
Blank = Positive
N = Negative
Polarity
Blank = Bus Bar
H = Positronic
(front-end only)
Backplane Connector
ACE 3 x 3 x x x xx - 1A
RTN V1
L1 L2 L3
- +
L1 L2 L3
RTN
V1
ALL TELECOM SHELVES FRONT END POWER SHELVES (POSITIVE POLARITY)
FRONT END POWER SHELVES (NEGATIVE POLARITY)
16.00
(406.4)
16.00
(406.4)
17.165
(436)
17.165
(436)
5.18
(131.6)
5.18
(131.6)
3-Phase Input
Connector
V1
V1 RETURN
Example Part Numbers:
Backplane
Part # Type Phase Polarity Connector
ACE303 Front End single Positive Bus Bar
ACE333 Front End Three Positive Bus Bar
ACE303N Front End single Negative Bus Bar
ACE333N Front End Three Negative Bus Bar
ACE303h Front End single Positive Positronic
ACE333h Front End Three Positive Positronic
ACE303Nh Front End single Negative Positronic
ACE333Nh Front End Three Negative Positronic
