Spectra series™ power panelboards, General, Installation

DEH41271 Installation Instructions
R01
g
Spectra Series™ Power Panelboards
Circuit Breaker Cover
WARNING:
Danger of electrical shock or injury.
Turn
OFF power ahead of the panelboard or
switchboard before working inside the
equipment or removing any component
.
Do
not remove or install circuit protective devices
or any other component until the power is
turned OFF.
General
These instructions apply to type FE circuit breaker frames.
Installation
1. Select the breaker cover. The part numbers of the
appropriate covers for various switchboards and
panelboards are listed in Table 1.
Switchboard or Panelboard Width
Cover Height
27 & 31"
Pnlbd
35" Swbd
36 & 40"
Pnlbd
40" Swbd
44" Pnlbd
45" Swbd
4
1
/
8
"
(3X) 10083889P19 10083889P20 10083889P21
5
1
/
2
"
(4X) 10083889P28 10083889P29 10083889P30
Table 1. Part numbers of FE circuit breaker covers for various
panelboard and switchboard sizes.

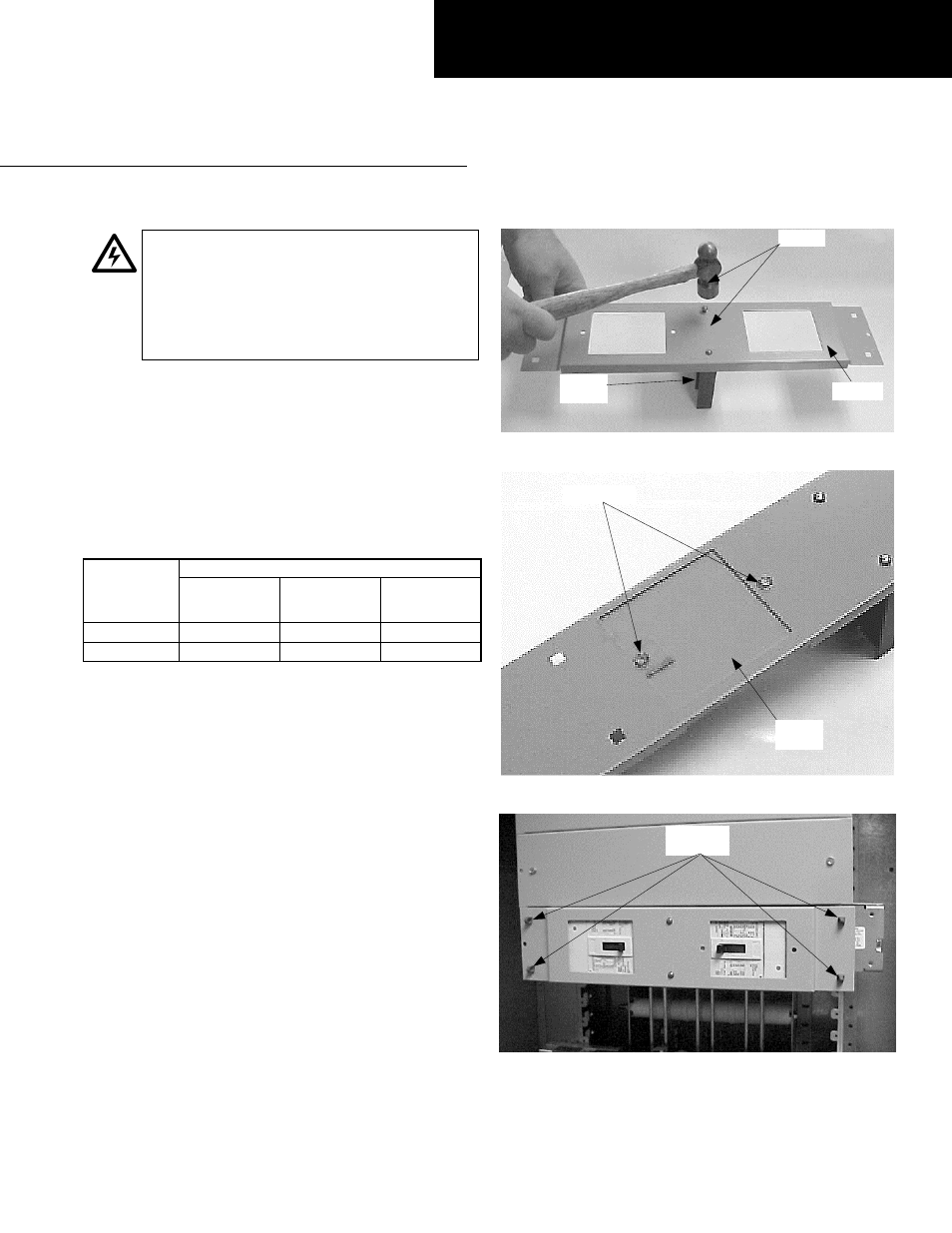

2. Attach the center barrier to the breaker cover with
the two push-in rivets provided, as illustrated in
3. Attach a space filler (part number 10096990P1) to
the cover if there is no breaker installed behind one
of the holes. Secure the filler with the two #10 x
3
/
8
"
screws provided, tightened to 27–32 in-lb, as shown in
4. Install the assembled breaker cover on the flexible
supports on the breaker module, as shown in Figure
Rivets
Center
Barrier
Cover
Figure 1. Attaching the center barrier to the breaker cover.
#10 Screws
Space
Filler
Figure 2. Space filler installed on a breaker cover.
Cover
Supports
Figure 3. Breaker cover installed on the supports on the breaker
module.
