GE Industrial Solutions AF-650 GP OPCGPIO General Purpose I_O Option Module User Manual
Page 6
1.3.2 Mounting Guidelines - Step By Step
These step-by-step instructions describe how to mount the control cables:
•
The power to the frequency converter must be disconnected.
•
Remove the Keypad, the terminal cover, and the Keypad frame from the frequency converter.
•
Fit the OPCGPIO option card into slot B.
•
Connect the control cables and relieve the cable by the enclosed cable strips.
•
Remove the knock out in the extended Keypad frame, so that the option will fit under the extended Keypad frame.
•
Fit the extended Keypad frame and terminal cover.
•
Fit the Keypad or blind cover in the extended Keypad frame.
•
Connect power to the frequency converter.
•
Set up the input/output functions in the corresponding parameters, as mentioned in the Programming Guide.
1.3.3 How To Mount Cables

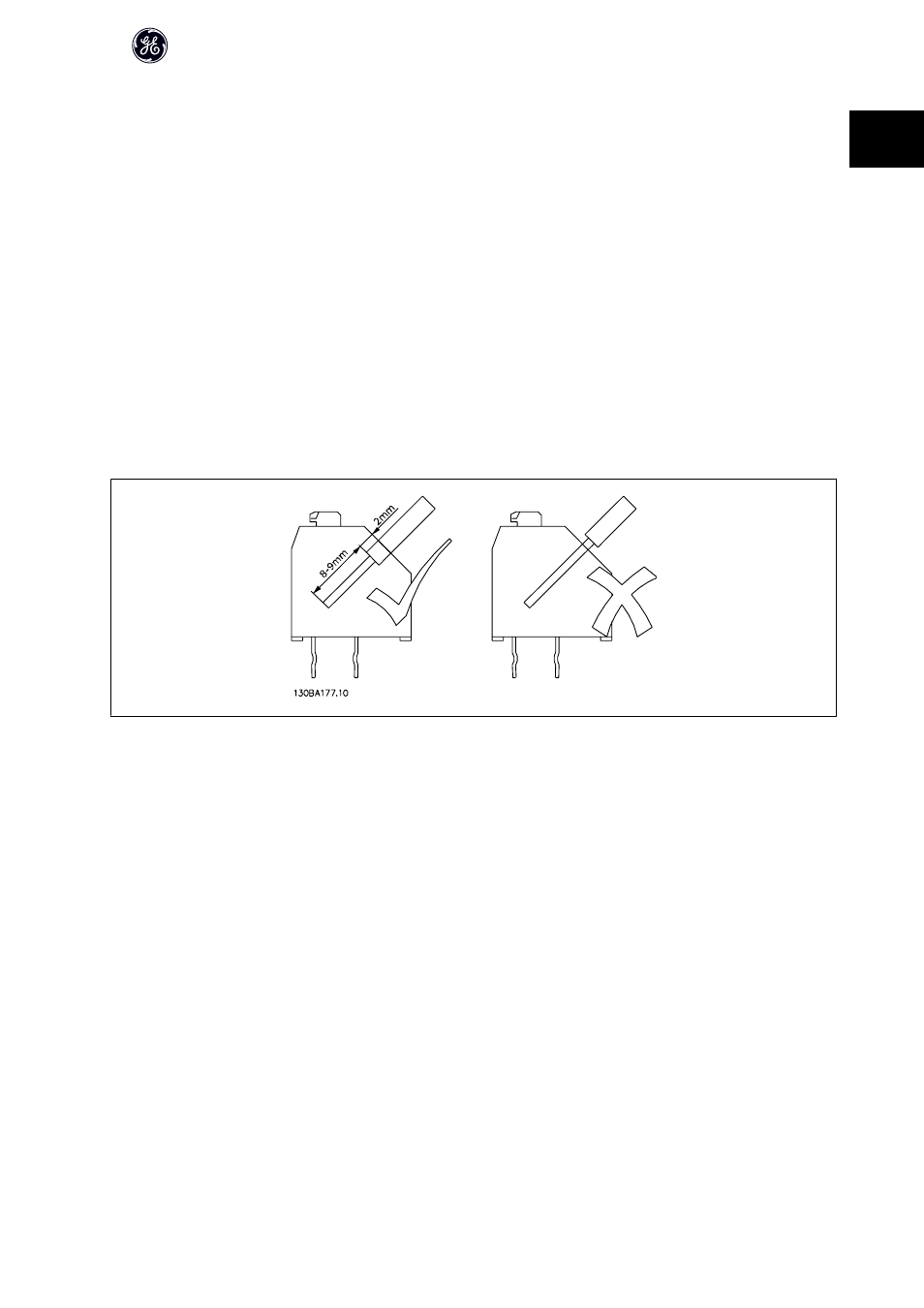

The graphic below illustrates how to mount the cables.
AF-650 GP and AF-600 FP OPCGPIO General Purpose I/O Option Module
5
1
