GE Industrial Solutions ProTrip Trip Units Target Module - Manual (Page 2)

Removal
An installed Target Module is seated firmly in the Trip
Unit. As shown in Figure 1, there are tabs at the sides of
the Target Module for removal. A Rating Plug Removal
Tool, catalog number TRTOOL, also known as an
integrated circuit (DIP) extractor, is required to remove
the Target Module. Grasp the tabs of the module with the
tool, as shown in Figure 2. Be careful to hold the tabs and
not the front cover, as the Target Module could be
damaged otherwise. Gently pry the Target Module out by
pulling away from the Trip Unit. A gentle left-right
wriggling motion assists the removal. Insure that the tabs
are held securely until the Target Module is completely
removed.

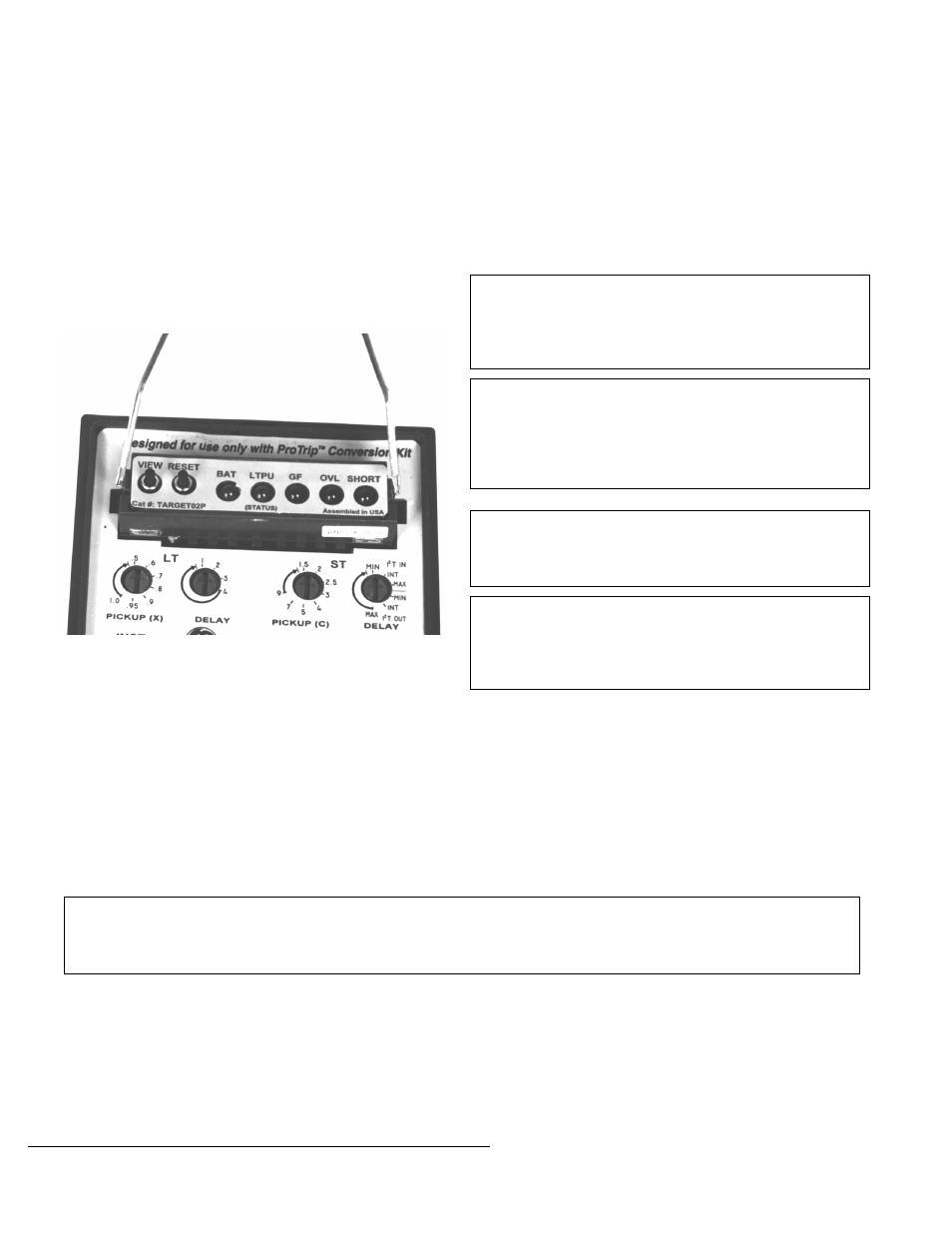

Figure 2. Target Module removal.
Battery Replacement
To replace the two batteries in the Target Module, remove
the module from the Trip Unit as described above. Slide
the old batteries out from the battery compartment at the
rear of the Target Module. It may help to pry them out
with a small screwdriver blade in the cutout on top of the
module. Slide the new batteries into the battery
compartment. Be careful not to short out the batteries
during removal or installation. Recommended
replacement batteries are Panasonic CR1616, Eveready E-
CR1616BP, and Duracell DC1616B.
WARNING
: Replace the batteries with Panasonic CR1616,
Eveready E-CR1616BP, or Duracell DC1616B only. Use
of a different battery may present risk of fire, explosion,
or damage to equipment. Observe proper battery polarity
when installing in the battery compartment.
AVERTISSEMENT
: Remplacer la batterie avec
uniquement des Panasonic CR1616, Eveready E-
CR1616BP, ou Duracell DC1616B. L’utilisation d’autres
batteries peut présenter un risque de feu, d’explosion ou
d’endommagement du matériel. Respecter la polarité de
la batterie en l’installant dans son logement.
WARNING
: The batteries may explode if mistreated. Do
not recharge, disassemble, or dispose of in fire. Keep the
battery away from children and dispose of the used
battery promptly.
AVERTISSEMENT
: La batterie peut exploser en cas de
mauvaise utilisation. Ne pas la recharger, l’ouvrir ou la
jeter dans un feu. Doit être garder hors de portée des
enfants. Une fois usée, la batterie doit être jeté
rapidement.
g
GE Industrial Systems
General Electric Company
41 Woodford Ave., Plainville, CT 06062
DEH–40053 R01 1198 © 1998 General Electric Company
