GE Industrial Solutions PEDESTAL FOR Unit Sizes 41 & 42 - Manual (Page 2)

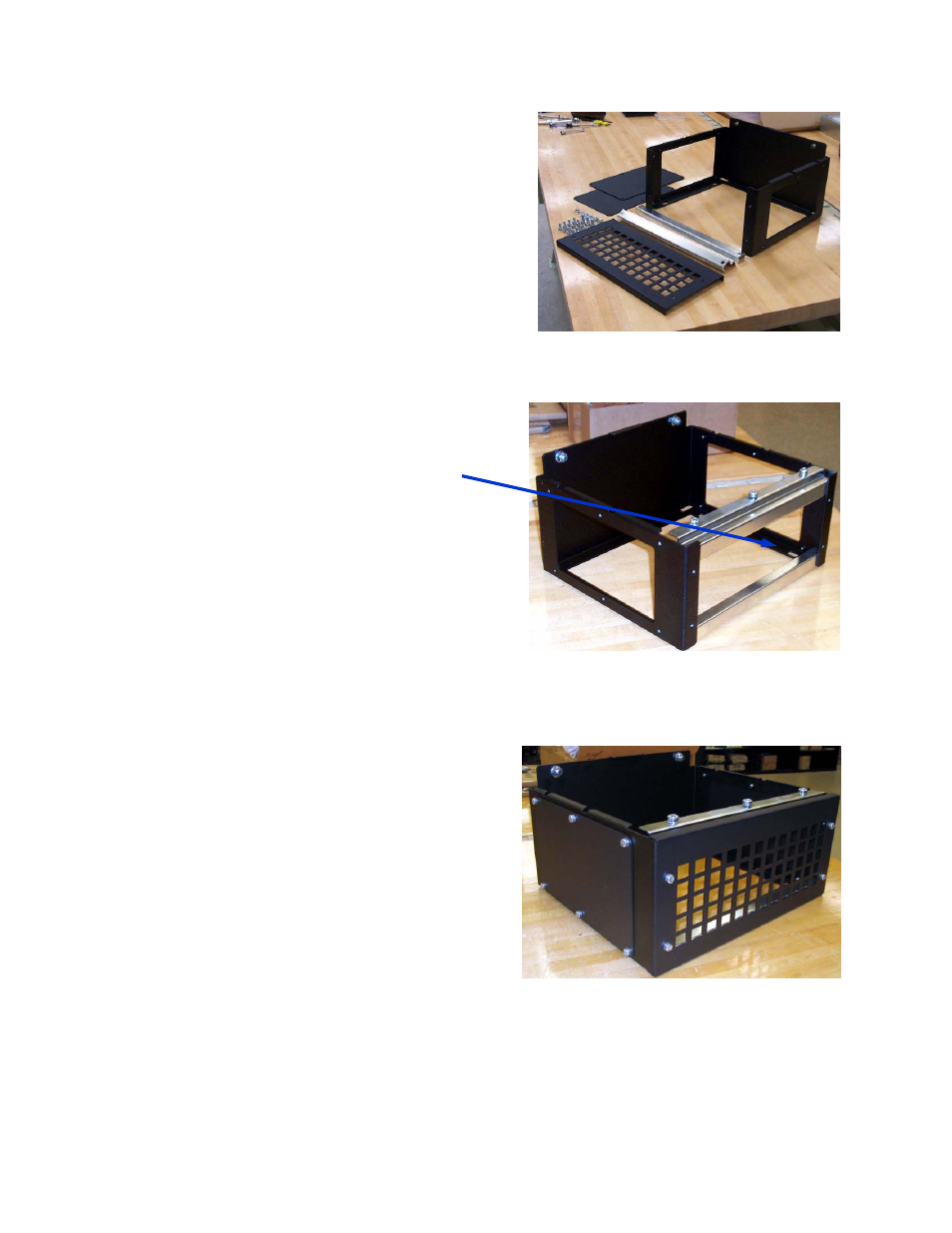

Photo 1. Pedestal Parts
Photo 2. Partially assembled pedestal
The kit contains the primary pedestal frame, a
vented front cover, 2– side covers, two front
brackets and the required hardware for as-
sembly.
Shown in Photo 2 is a partially assembled
pedestal. Before installing the drive on to
the pedestal, the pedestal must be anchored
to the floor using the four pedestal mounting
holes. The holes can accommodate up to
M12 bolts (not included in kit)
CAUTION: The drives are top heavy and
may fall over if the pedestal is not anchored
to the floor.
The entire assembly may also be supported
by using the drive top mounting holes to an-
chor to a wall structure.
The completely assembled pedestal with
vented front cover and two side covers in-
stalled is shown in Photo 3. Multiple drives
may be mounted side-by-side. The interior
side plates are left off when installing drives
side-by-side.
Note: The front and side cover mounting
screws are recessed M6 Torx socket flat
head screws.
Photo 3. Completely assembled
pedestal
177Rxxxx 12/2009 DET-721, Page 2
