PE/N
L
TN / IT
L1 N
PE
TN (1 P h + N)
L1
PE
N
TT (1 P h + N)
L1 L2 L3
PE
N
TN - S (3 P h + N)
L1 L2 L3
N
PE
TT (3 P h + N)
PE
L + L –
DC / PHOTOVOLTAIC 2
L + PE L –
DC / PHOTOVOLTAIC 3

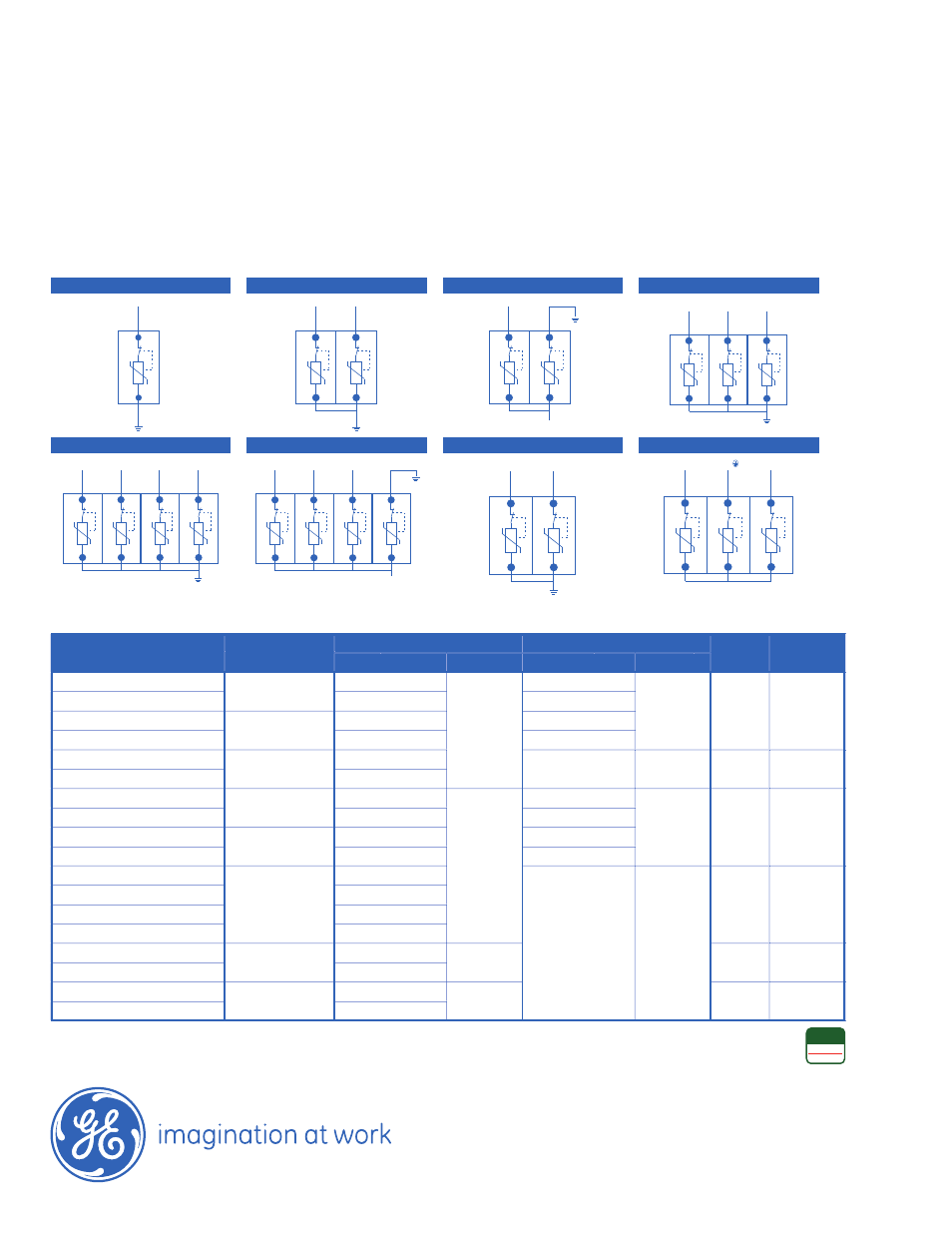

Figure 4 – Wiring Configuration Diagram (NOTE: Shown with no power applied)
4. WIRE INSTALLATION
2.08 mm 2 - 13.3 mm 2 (#14 AWG to #6 AWG ), 60/75°C Copper wire
shall be used on phase and Neutral/ PE terminals. Maximum
torque to be applied to terminal screws is 2.0 N-m (14.75 in-lb).
Strip back wire insulation 6mm (1/4").
Interconnecting wire should be kept at minimum length. Wire
bending radius should be > 100mm (4"). Do not loop or twist
interconnecting wire. Failure to meet these requirements may
result in higher let-through voltages.
Tranquell ™ SPD is normally installed in parallel with the load or
the electrical system wiring.
Determine electrical voltage configuration and proper modes
of protection and install wiring as shown in Figure 4.
L1 L2 L3
PE/N
TN - C (3 P h + PEN )
COMPLIANT
2002/95/EC
RoHS
Part Numbers & Speci
fications
NOTE: The Tranquell ™ DIN Rail SPD has been tested for safe operation without any
additional overcurrent protection, when correctly matched to the power system
parameters. A gG 160 Amp NH Fuse may be chosen to meet other requirements in
an IEC application. Consult local codes and standards for appropriate fuse sizing.
Assembly System
Part Number
Wiring
Con figuration
L-PE/N Pluggable N - E Pluggable No. of
Poles
No. of
Wires
Part Number Qty Part Number Qty
TD2304025RMS
TN -S
RC-275-25
3
RC-150-25
1 4 5
TD2304040RMS RC-275-40 RC-150-40
TD2304025RMT
TT
RC-275-25 RC-150-25
TD2304040RMT RC-275-40 RC-150-40
TD2303025RMC
TN -C
RC-275-25
— — 3 4
TD2303040RMC RC-275-40
TD2302025RMN
TN / IT
RC-275-25
1
RC-150-25
1 2 3
TD2302040RMN RC-275-40 RC-150-40
TD2302025RMT
TT
RC-275-25 RC-150-25
TD2302040RMT RC-275-40 RC-150-40
TD2301025RMN
TN / IT
RC-275-25
— —
1 2
TD2301040RMN RC-275-40
TD4001025RMN RC-510-25
TD4001040RMN RC-510-40
TD600V2025RMDC
DC / PHOTOVOLTAIC 2
PV-670-25
2 2 3
TD600V2040RMDC PV-670-40
TD1000V3025RMDC
DC / PHOTOVOLTAIC 3
PV-560-25
3 3 3
TD1000V3040RMDC PV-560-40
