Introduction
Electrical close switch:
Electrical close switch is an optional accessory
which can be used in combination with the
command Close coil. It has an extra ‘ON’ push
button that fits onto the breaker front fascia,
which can be locally operated manually to close
the breaker.

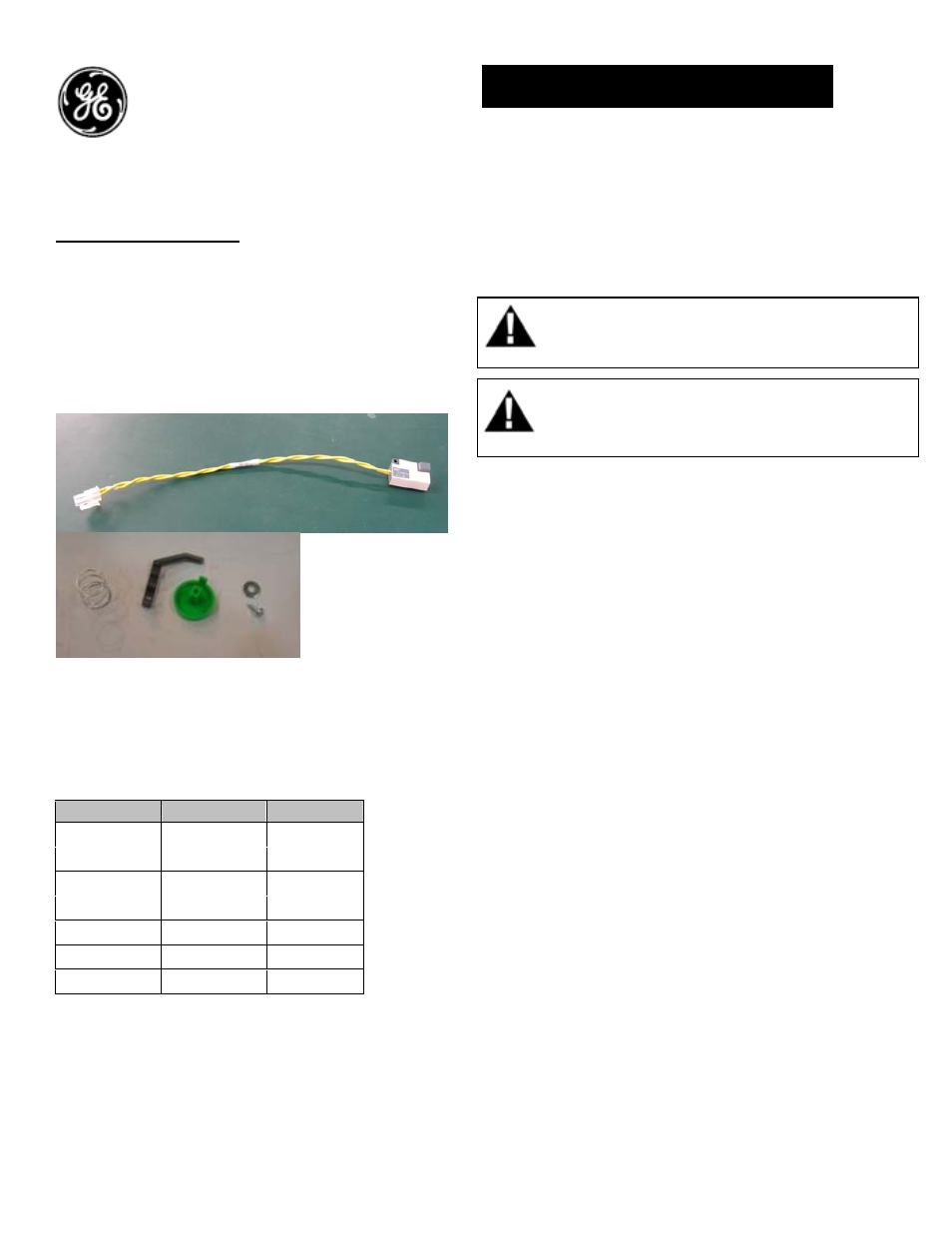

Figure 1.
Catalog Number: GECPR
Table 1. Electrical close switch push button can be
used with the below Command close coils
Catalog No DC Voltage AC Voltage
GCCC024DR 24V
GCCC030DR 30V
GCCC048R 48V 48V
GCCC060DR 60-72V
GCCC120R 110-130V 110-130V
GCCC208AR 208V
GCCC240R 220-240V 220-240V
DEH-41374 Installation Instructions
EntelliGuard ® G Circuit Breaker
Accessories
Electrical close switch
WARNING: Before installing any accessories, turn the
breaker OFF, disconnect it from all voltage sources,
and discharge the closing spings.
AVERTISSEMENT: Avant d’installer tout accessoire,
mettre le disjoncteur en position OFF, le déconnecter
de toute tension d’alimentation , et décharger les
resorts d’armement
Use the following procedure to install the
Command Closing Coil accessory into the circuit
breaker.
1. Turn the breaker off and discharge the closing
springs by depressing the OFF and ON buttons in
the sequence OFF-ON-OFF. Verify that the
breaker OFF-ON indicator shows OFF on a green
background and that the charge indicator shows
DISCHARGE on a white background. If installing
in a draw-out type breaker remove breaker from
adaptor (cassette) before continuing.
2. Loosen the 6 screws on front cover (fascia)
using a posidrive screw driver as shown in Fig 1.B
Rotate the charging handle down and slide the
front cover over the handle to remove the front
cover as shown in Fig. 1.C.
