Page 8
8

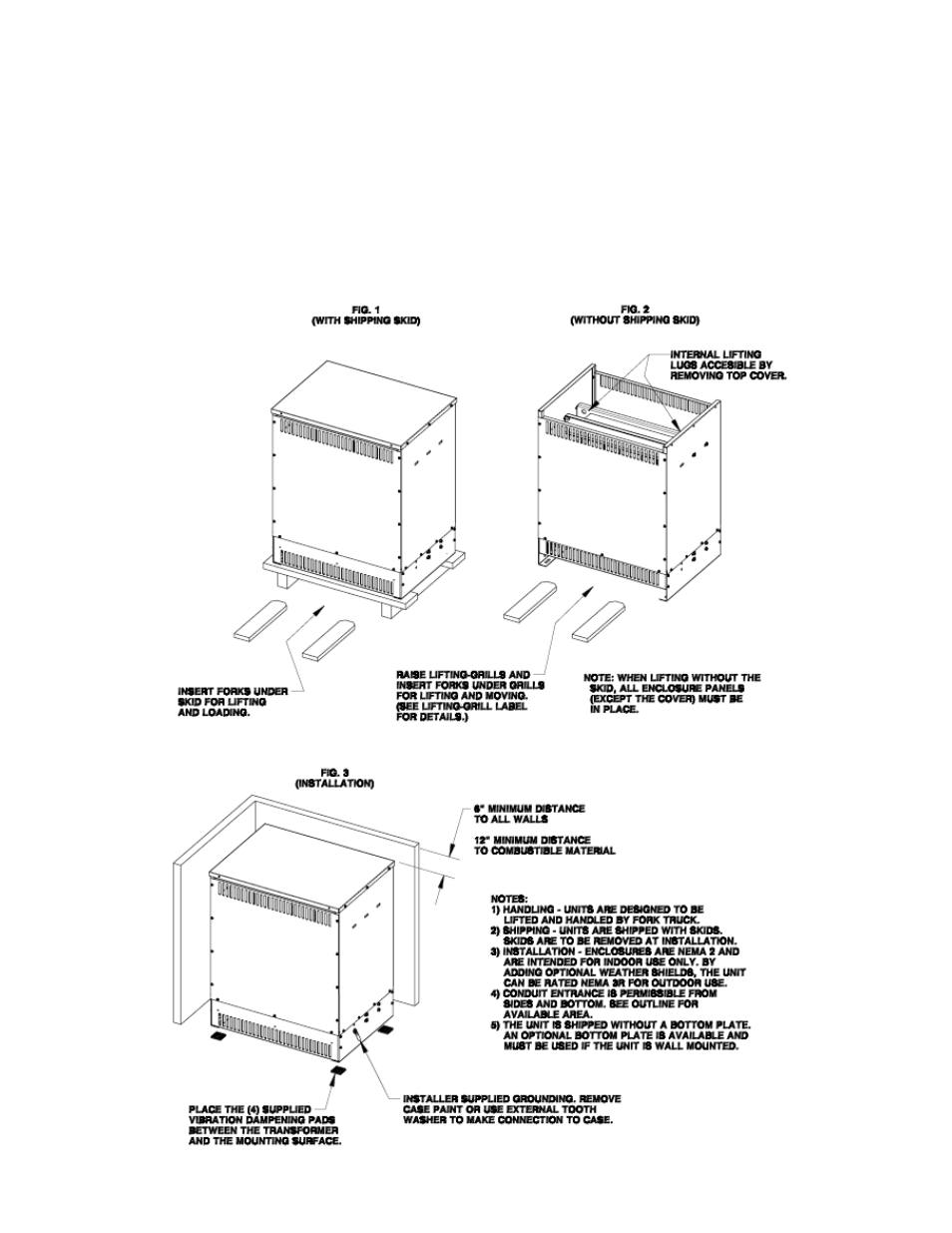

13. Typical Enclosure Information
HANDLING – Units are designed to be lifted and handled by a fork truck.
SHIPPING – Units are shipped with skids. Skids are to be removed at installation.
INSTALLATION – Enclosures are NEMA 2 rated and are intended for indoor use. By adding optional weather shields, the unit can
be rated NEMA 3R for outdoor use. The unit is shipped without a bottom plate. An optional bottom plate is available and must be
used if the unit is wall mounted.
Remove any packing materials and shipping hardware at installation and prior to energizing the unit.
