Specifications listed assume 25°C Ambient Operating Temperature and Full Load Operation unless otherwise specified. This product is qualified for use in OEM equipment and is not appropriate for stand-alone operation. The information contained within this specifi-
cation is believed to be true and correct at the time of publication, however, Cherokee International accepts no responsibility for consequences arising from printing errors or inaccuracies. The information and specifications contained herein are subject to change without notice.

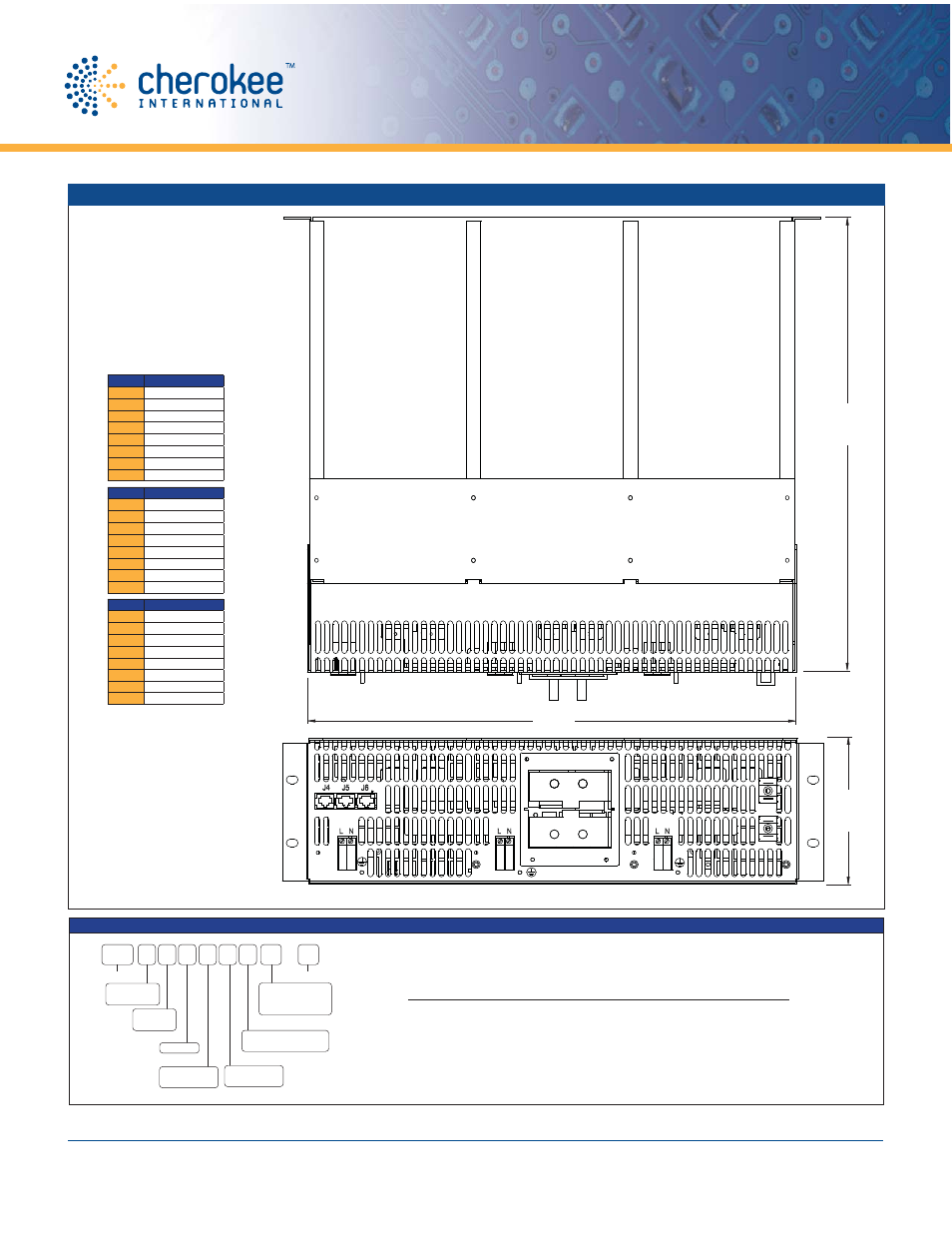

Outline Drawing
PART NUMBER DEFINITION GUIDE
ACE4000T SERIES
12,000 Watt / 3-Bay Rectifier Power Shelf
5.18
(131.6)
18.00
(457.2)
17.165
(436)
V1
V1 RETURN
Series
4=4kW x 3Bays
12kW Total
Power
Blank=Non-Compliant
Y0=5 of 6 Compliant
Z0=6 of 6 Compliant
RoHS Compliance
Rev.
0 = 1Ш
3 = 3Ш
Input Phase
3 = 3 Slots
Output V
Blank = Front End
T = Rectifier
Type
Blank = Positive
N = Negative
Polarity
Blank = Bus Bar
H = Positronic
(front-end only)
Backplane Connector
ACE 4 x 3 x x x xx - 1A
J4
FUNCTION
1
IOUT 1
2
IOUT 1 (RS)
3
VPROG 1
4
VPROG 1 (RS)
5
I-SHARE 1
6
ALARM 1
7
GROUND 1 (RS)
8
ON/OFF 1
J6
FUNCTION
1
IOUT 3
2
IOUT 3 (RS)
3
VPROG 3
4
VPROG 3 (RS)
5
I-SHARE 3
6
ALARM 3
7
GROUND 3 (RS)
8
ON/OFF 3
J5
FUNCTION
1
IOUT 2
2
IOUT 2 (RS)
3
VPROG 2
4
VPROG 2 (RS)
5
I-SHARE 2
6
ALARM 2
7
GROUND 2 (RS)
8
ON/OFF 2
J4 / J5 / J6 are RJ45 Receptacle
AMP Part Number 55162-1
Example Part Numbers:
Backplane
Part #
Type
Phase
Polarity
Connector
ACE403T Rectifier
Single Positive Bus
Bar
ACE433T Rectifier
Three Positive Bus
Bar
ACE403TN Rectifier Single
Negative
Bus
Bar
ACE433TN Rectifier Three
Negative
Bus
Bar
3-Phase Input Shelves
Use 3-Position Terminal
Blocks (Consult Factory
for Outline Drawing)
