GE Industrial Solutions Power Mark Gold Generator Interlock Kit - Manual (Page 2)

Fig 3
g
GE Consumer & Industrial
General Electric Company
DEH41103 Rev3 03/06 41 Woodford Ave, Plainville, CT 06062
Interlock operation
To energize the panel from Generator Power.
1. Turn OFF the circuit breaker marked “Main”
2. Turn off all the branch circuit breakers
3. Move the sliding plate on the interlock towards the main
breaker using the tabs provided.
4. Turn ON the 2-pole back-fed circuit breaker.
5. Turn ON the branch circuit breakers supplying critical
circuits.
To energize the panel from Utility Power.
1. Turn OFF the circuit 2-pole back-fed breaker.
2. Turn off all branch circuit breakers
3. Move the sliding plate on the interlock towards branch
breakers using the tabs provided.
4. Turn ON the branch circuit breakers that were previously
turned OFF.

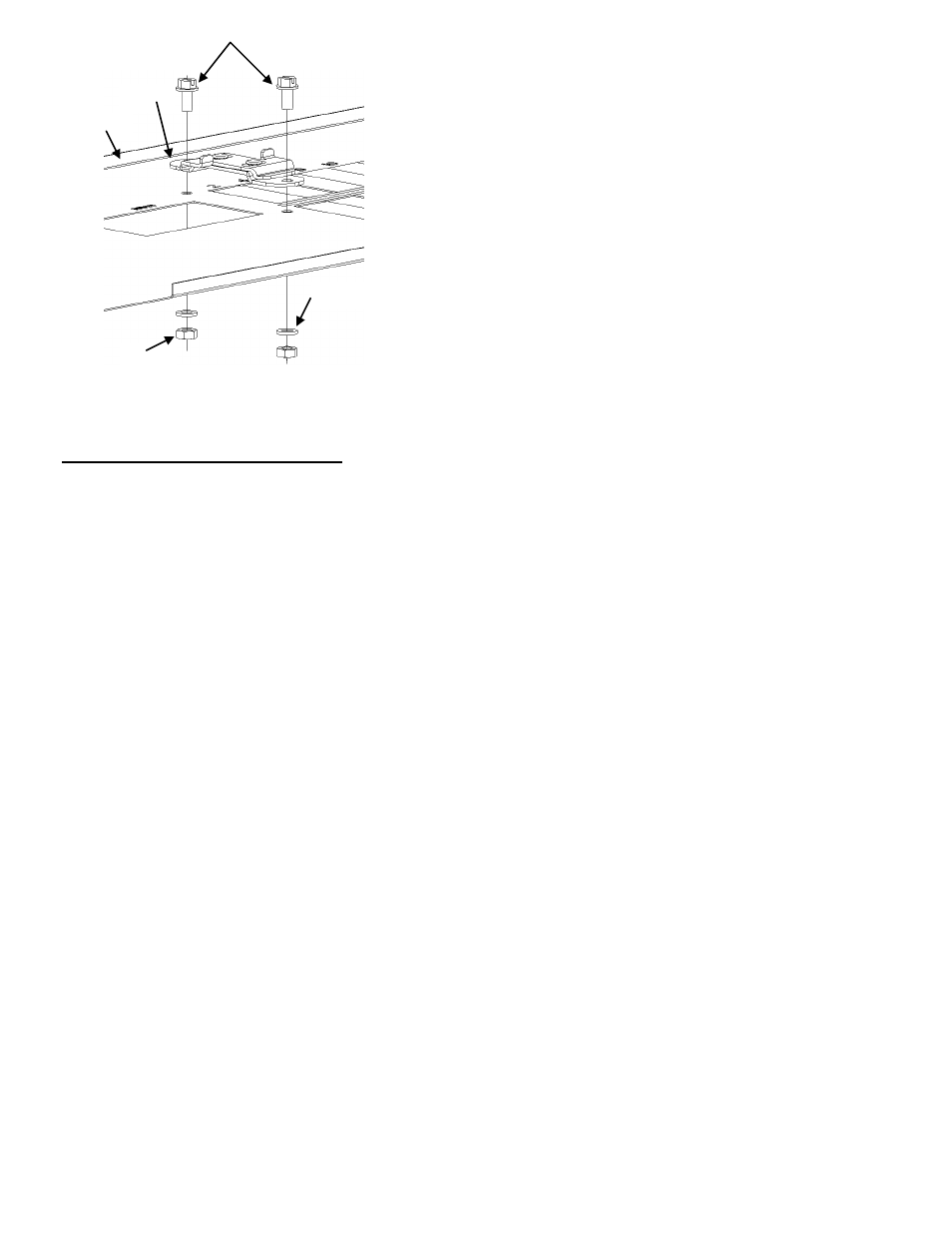

Screws
Washer
Nut
Interlock
Shield
