Appendix B
Specifications
Overview
This appendix contains information on spectrometer operation, specifications, and system compatibility.
It also includes accessory connector pinout diagrams and pin-specific information.
How the HR2000+ Works

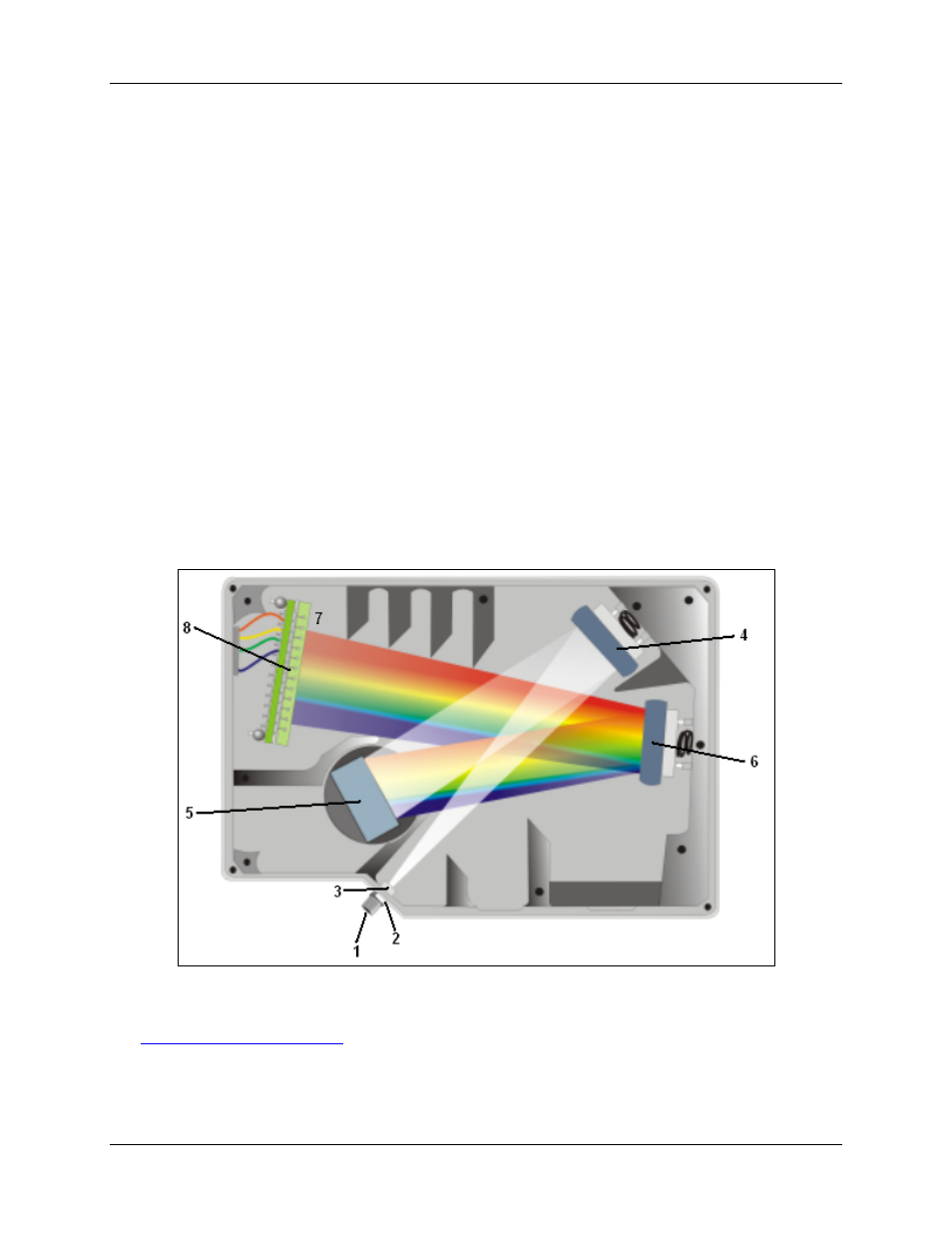

Below is a diagram of how light moves through the optical bench of an HR2000+ Spectrometer. The
optical bench has no moving parts that can wear or break; all the components are fixed in place at the time
of manufacture. Items with an asterisk (*) are user-specified.
HR2000+ Spectrometer with Components
See HR2000+ Components Table on the following page for an explanation of the function of each
numbered component in the HR2000+ Spectrometer in this diagram.
