234

Revised: 09/23/13

Speciﬁcations are subject to change without notice.

Teccor

brand Thyristors

EV Series 1.5 Amp Sensitive SCRs

Sx02xS Series

SCR SERIES

x 02

VOLTAGE

4: 400V
6: 600V

SENSITIVITY

S: 200μA Sensitive SCR

PACKING TYPE

Blank: Bulk
RP: Reel Pack (TO-92)
: Embossed Carrier Pack
(SOT-223)
AP: Ammo Pack (TO-92)

CURRENT

02: 1.5A

PACKAGE TYPE
E: TO-92
T: SOT-223

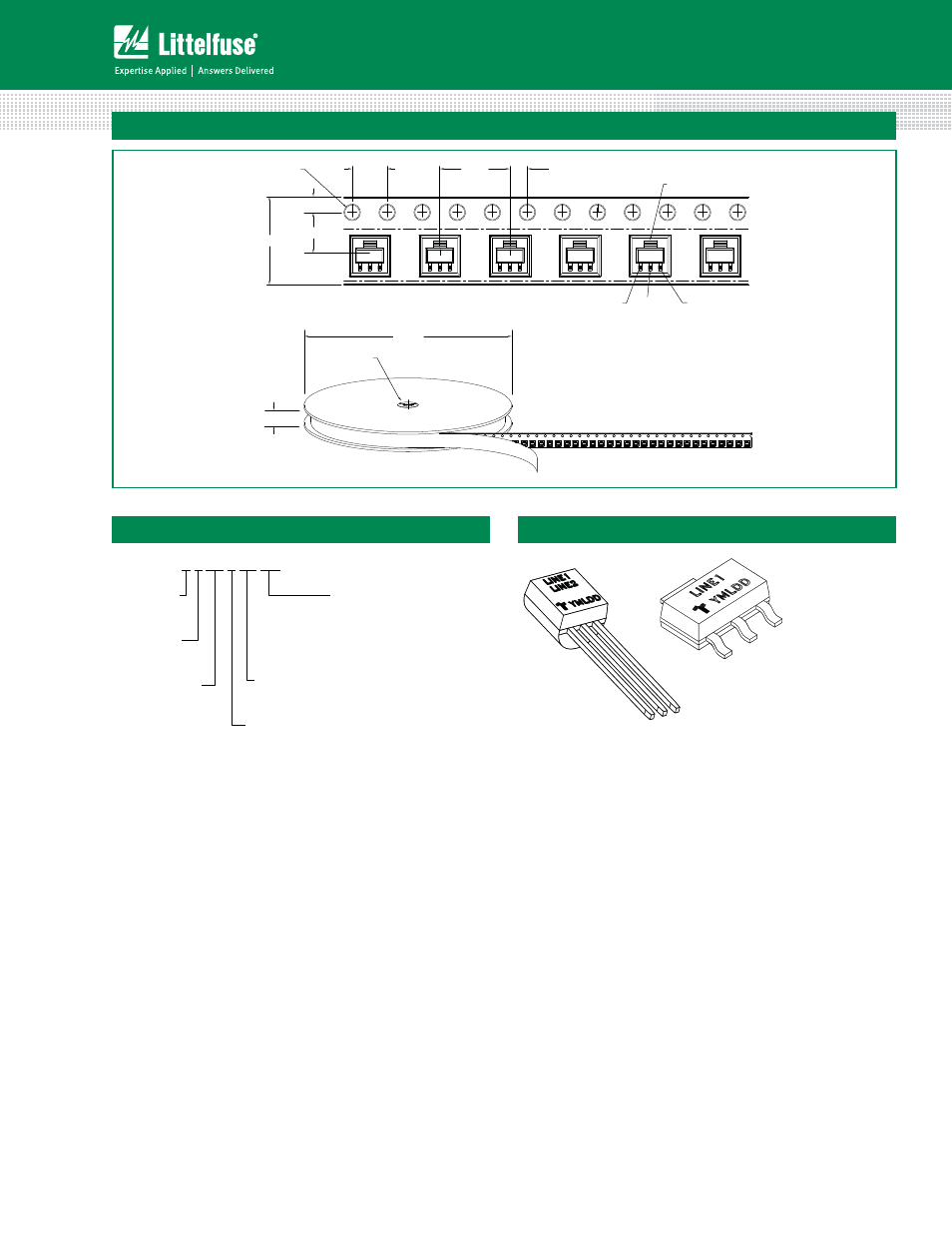

Part Numbering System

Part Marking System

SOT223

TO92

Line1 = Littelfuse Part Number
Line2 = continuation…Littelfuse Part Number
Y = Last Digit of Calendar Year
M = Letter Month Code (A-L for Jan-Dec)
L = Location Code
DD = Calendar Date

SOT-223 Reel Pack (RP) Speciﬁcations

4 mm

8 mm

1.5 mm

13 mm Abor

Hole Diameter

180 mm

13.4 mm

2 mm

12 mm

GATE

5.5 mm

1.75 mm
