Teccor ® brand Thyristors
EV Series 1.5 Amp Sensitive SCRs
Sx02xS Series
Packing Options

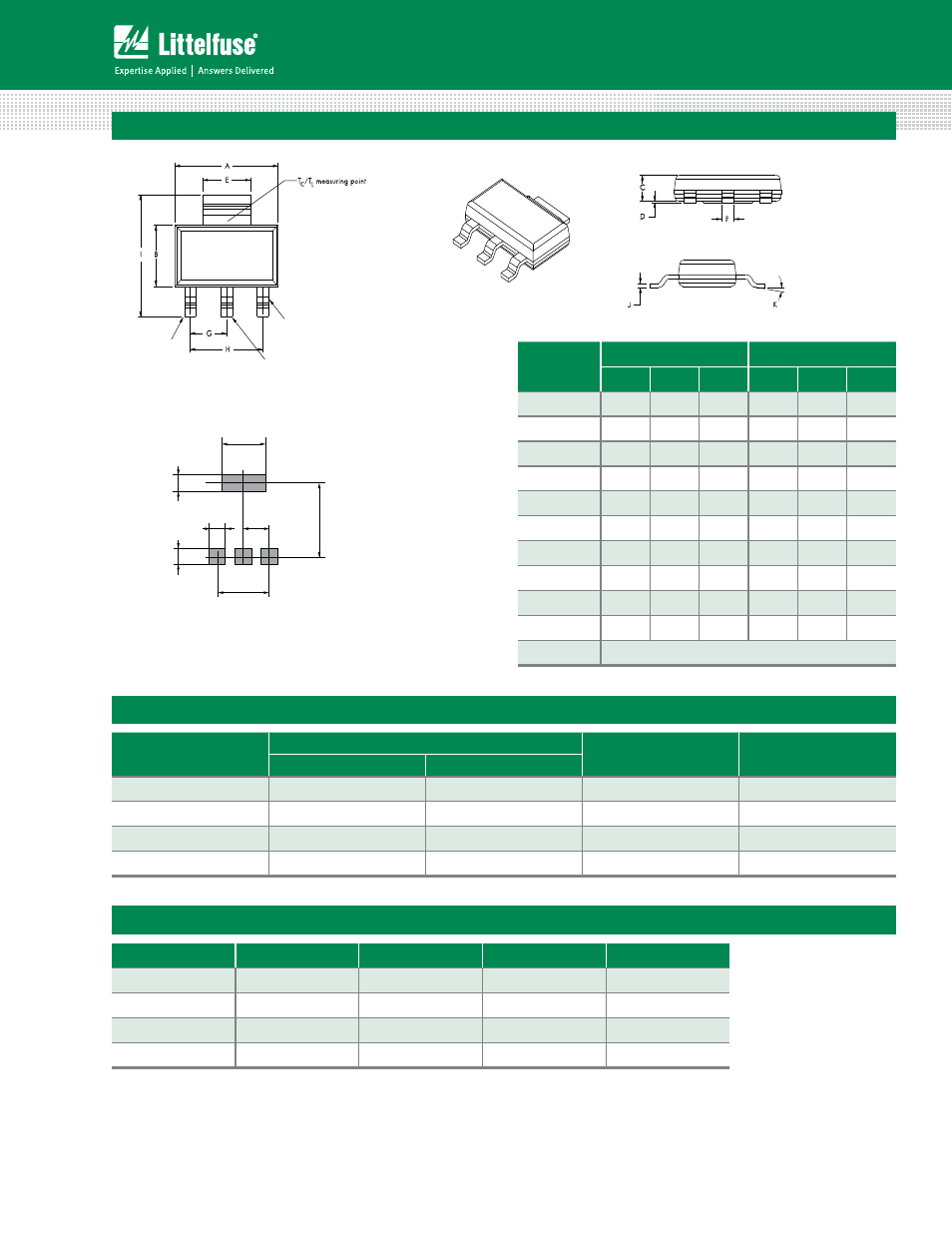

Dimensions – SOT-223
Dimensions
Inches Millimeters
Min Typ Max Min Typ Max
A 0.248 0.256 0.264 6.30 6.50 6.70
B 0.130 0.138 0.146 3.30 3.50 3.70
C — — 0.071 — — 1.80
D 0.001 — 0.004 0.02 — 0.10
E 0.114 0.118 0.124 2.90 3.00 3.15
F 0.024 0.027 0.034 0.60 0.70 0.85
G — 0.090 — — 2.30 —
H — 0.181 — — 4.60 —
I 0.264 0.276 0.287 6.70 7.00 7.30
J 0.009 0.010 0.014 0.24 0.26 0.35
K 10° MAX
Part Number Marking Weight Packing Mode Base Quantity
Sx02ES Sx02ES 0.170 g Bulk 2500
Sx02ESAP Sx02ES 0.170 g Ammo Pack 2000
Sx02ESRP Sx02ES 0.170 g Tape & Reel 2000
Sx02TSRP Sx02TS 0.120 g Tape & Reel 1000
Note: x = voltage
Dimensions in Millimeters (Inches)
1.5
(0.059”)
1.5
(0.059”)
3.3
(0.130”)
6.4
(0.252”)
4.6
(0.181”)
1.2
(0.047”) 2.3
(0.091”)
(3x)
Pad Layout for SOT-223
Product Selector
Part Number
Voltage
Gate Sensitivity Package
400V 600V
S402ES X — 200μA TO-92
S602ES — X 200μA TO-92
S402TS X — 200μA SOT-223
S602TS — X 200μA SOT-223
Anode
Gate
Anode
Cathode
