Teccor ® brand Thyristors
8 Amp Sensitive & Standard SCRs
Sxx08xSx & Sxx08x Series
0.512 (13.0)
Arbor Hole
Diameter
DC
XXXXXX XXXXXX
DC
XXXXXX
DC
XXXXXX XX
Gate Cathode
Anode
0.63
(16.0)
0.157
(4.0)
0.64
(16.3)
12.99
(330.0)
0.524
(13.3)
0.315
(8.0)
0.059
DIA
(1.5)
*
*
Cover tape
XX XX
Direction of Feed
Dimensions
are in inches
(and millimeters).

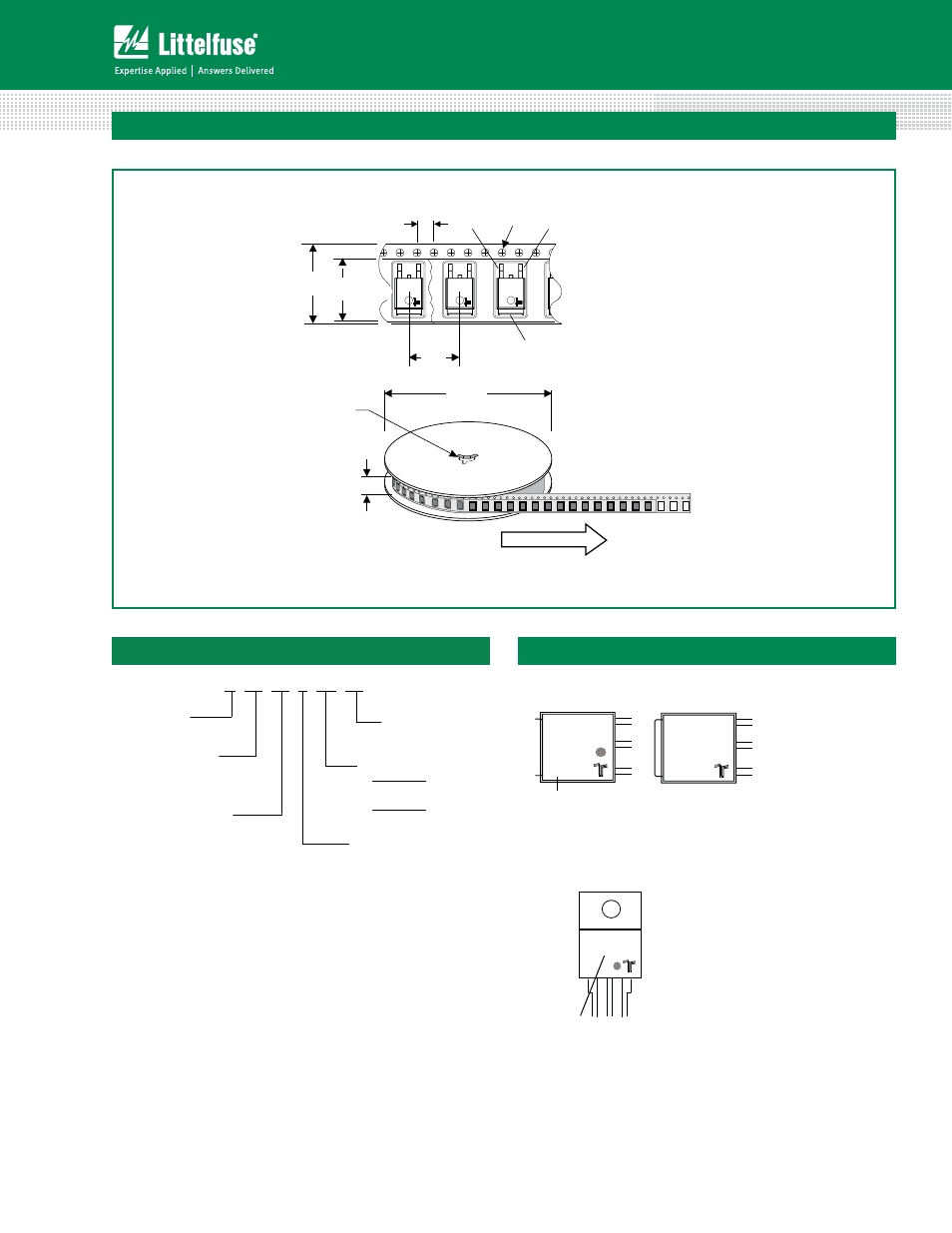

TO-252 Embossed Carrier Reel Pack (RP) Specifications
Meets all EIA-481-2 Standards
Part Numbering System Part Marking System
S 60 08 L S2 56
DEVICE TYPE
S: SCR
VOLTAGE RATING
40: 400V
60: 600V
80: 800V
K0: 1000V
CURRENT RATING
08: 8A
SENSITIVITY & TYPE
Sensitive SCR:
S2: 200μA
S3: 500μA
Standard SCR:
(blank): 15mA
PACKAGE TYPE
L: TO-220 Isolated
R: TO-220 Non-Isolated
V: TO-251 (V/I-Pak)
D: TO-252 (D-Pak)
LEAD FORM DIMENSIONS
xx: Lead Form Option
®
MXXX Y
S6008RS2
TO-220 AB - (L and R Package)
Date Code Marking
Y:Year Code
M: Month Code
XXX: Lot Trace Code
S6008DS2
YMLDD
®
Date Code Marking
Y:Year Code
M: Month Code
L: Location Code
DD: Calendar Code
S6008DS2
YMLDD
®
TO-251AA - (V Package)
TO-252AA - (D Package)
