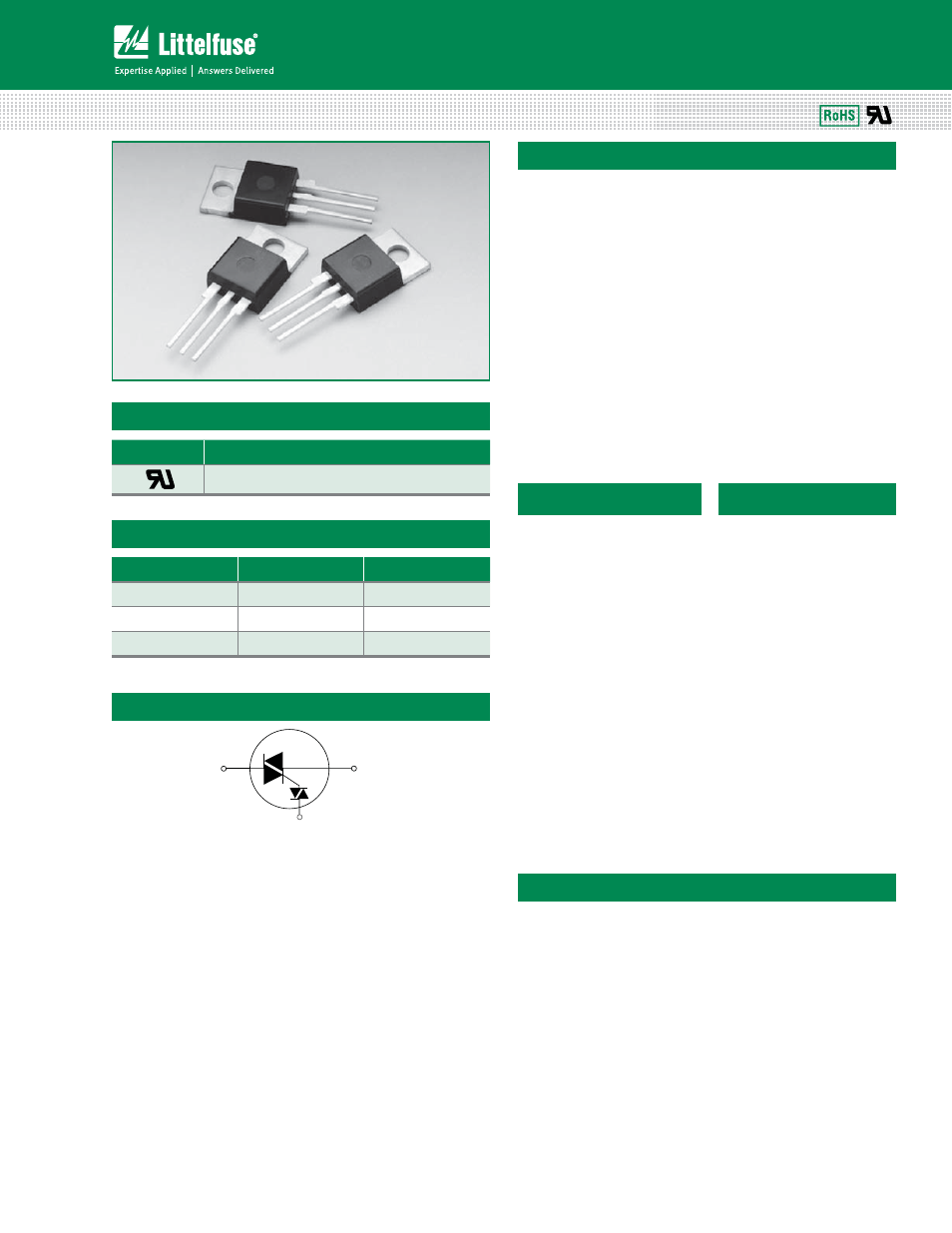

Littelfuse Q6012LTH1LED Series User Manual
Teccor, Brand thyristors

183
Revised: 09/23/13
©2013 Littelfuse, Inc
Specifications are subject to change without notice.
Teccor
®
brand Thyristors
12 Amp Alternistor Quadrac for LED dimmer applications
Q6012LTH1LED Series
Q6012LTH1LED Series
Description
Main Features
Symbol
Value
Unit
I
T(RMS)
12
A
V
DRM
/ V
RRM
600
V
DIAC V
BO
33 to 43
V
Schematic Symbol
Applications
Excellent for AC switching and phase control applications
such as lighting and motor speed controls. Typical
applications are AC solid-state switches, light dimmers
with LED loads, small low current motor in power tools,
and low current motors in home/brown goods appliances.
Internally constructed isolated package is offered for ease
of heat sinking with highest isolation voltage.
Agency Approval
Agency
Agency File Number
®
L Package : E71639
MT2
MT1
T
The Quadrac is an internally triggered Triac designed for
AC switching and phase control applications. It is a Triac
and DIAC in a single package, which saves user expense
by eliminating the need for separate Triac and DIAC
components.
Q6012LTH1LED series is designed to meet low load current
characteristics typical in LED lighting applications.
By keeping holding current at 8mA maximum, this Quadrac
series is characterized and specified to perform best with
LED loads. The Q6012LTH1LED series is best suited for
LED dimming controls to obtain the lowest levels of light
output with a minimum probability of flickering.
Q6012LTH1LED series is offered in the industry standard
TO-220AB package with an isolated mounting tab that
makes it best suited for adding an external heat sink.
Features
t"TMPXBTN"NBY
holding current
t6-SFDPHOJ[FE50"#
package
t
°C rated junction
temperature
tEJEUQFSGPSNBODFPG
70A/
μs
t26"%3"$WFSTJPO
includes intergrated DIAC
t1SPWJEFTGVMMDPOUSPM
of light out put at the
extreme low end of load
conditions.
t7
AC
min isolation
between mounting tab
and active terminals
t*NQSPWFTNBSHJOPGTBGF
operation with less heat
sinking required
t&OBCMFTVSWJWBCJMJUZ
of typically LED load
operating characteristics
t4JNQMJDJUZPGDJSDVJUEFTJHO
& layout
