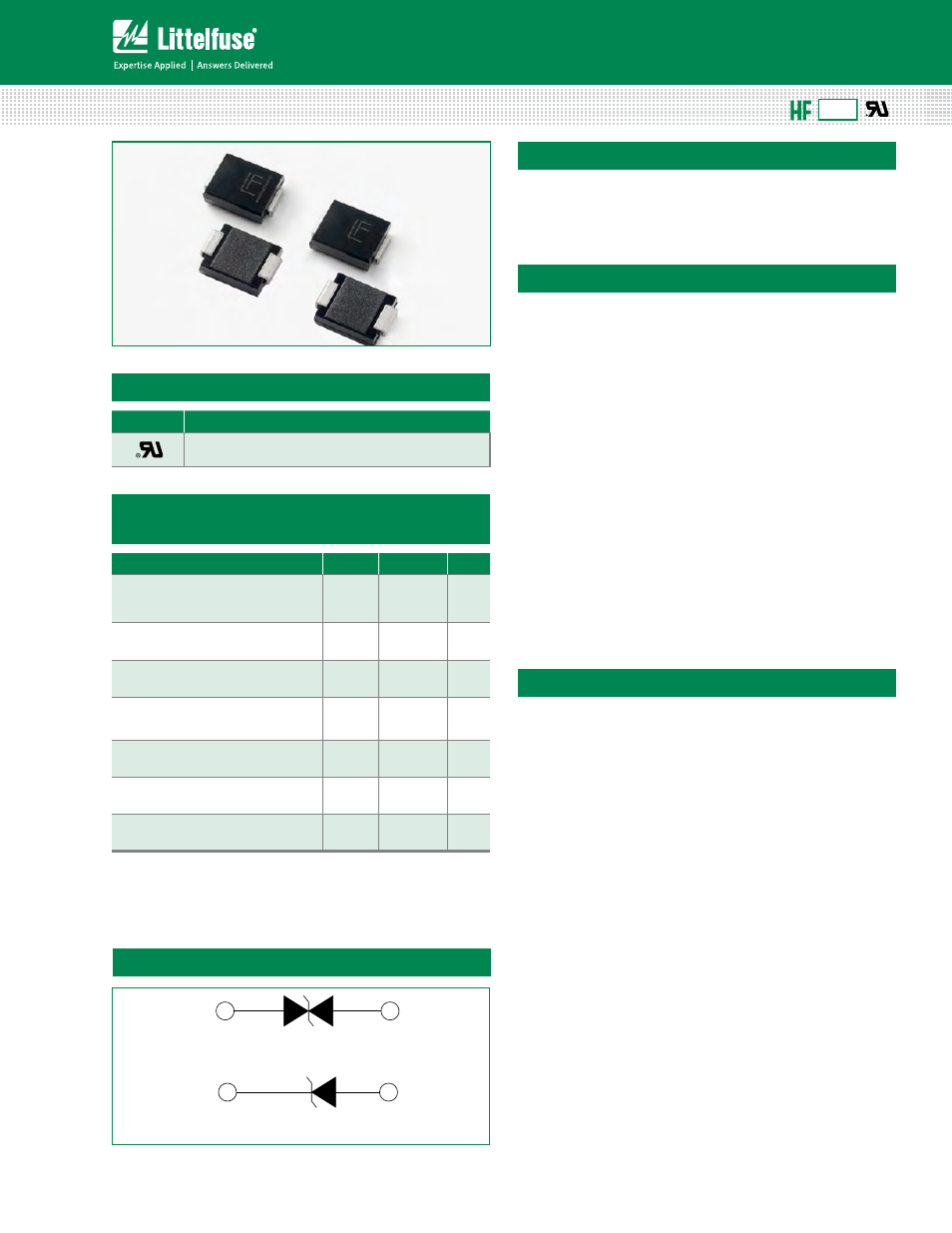

Surface Mount – 3000W > SMDJ-HR series
SMDJ-HR Series
AGENCY
AGENCY FILE NUMBER
E230531
The SMDJ-HR High Reliability series is designed
specifically to protect sensitive electronic equipment from
voltage transients induced by lightning and other transient
voltage events.
Description
Maximum Ratings and Thermal Characteristics
(T
A
=25
O
C unless otherwise noted)
Agency Approvals
Parameter
Symbol
Value
Unit
Peak Pulse Power Dissipation at
T
A
=25ºC by 10/1000µs waveform
(Fig.1)(Note 1), (Note 2)
P
PPM
3000
W
Power Dissipation on infinite heat
sink at T
A
=50
O
C
P
M(AV)
6.5
W
Peak Forward Surge Current, 8.3ms
Single Half Sine Wave (Note 3)
I
FSM
300
A
Maximum Instantaneous Forward
Voltage at 100A for Unidirectional
only
V
F
3.5
V
Operating Junction and Storage
Temperature Range
T
J
, T
STG
-55 to 150
°C
Typical Thermal Resistance Junction
to Lead
R
uJL
15
°C/W
Typical Thermal Resistance Junction
to Ambient
R
uJA
75
°C/W
Notes:
1. Non-repetitive current pulse , per Fig. 3 and derated above T
A
= 25
O
C per Fig. 2.
2. Mounted on copper pad area of 0.31x0.31” (8.0 x 8.0mm) to each terminal.
3. Measured on 8.3ms single half sine wave or equivalent square wave for unidirectional
device only, duty cycle=4 per minute maximum.
TVS devices are ideal for the protection of I/O Interfaces,
V
CC
bus and other vulnerable circuits used in Telecom,
Computer, Industrial and Consumer electronic applications.
Applications
Features
• For surface mounted
applications in order to
optimize board space
• Low profile package
• Built-in strain relief
•
V
BR
@T
J
= V
BR
@25°C x (1+
αT
x (T
J
- 25))
(
αT:Temperature Coefficient)
• Glass passivated chip
junction
• 3000W peak pulse power
capability at 10/1000μs
waveform, repetition rate
(duty cycles):0.01%
• Fast response time:
typically less than 1.0ps
from 0V to BV min
• Excellent clamping
capability
• Low incremental surge
resistance
• Typical I
R
less than 2µA
above 12V
• High temperature
soldering guaranteed:
260°C/40 seconds at
terminals
• Plastic package has
underwriters laboratory
flammability 94V-O
• Meet MSL level1, per
J-STD-020, LF maximun
peak of 260
°
C
• Matte tin lead–free plated
• Halogen free and RoHS
compliant
1
RoHS
SMDJ-HR Series
Functional Diagram
Bi-directional
Uni-directional
Cathode
Anode
Uni-directional
Bi-directional
