StreetGlow Headlight Strobes - Manual (Page 3)

XENON HEADLIGHT STROBE KIT
CONTENTS:
2- Xenon Headlight Strobes
1- Transformer with Dual Strobe Leads
Installation Hardware with Instructions
INSTRUCTIONS:
1) Mount strobe transformer in desired location using the
installation hardware provided.
*Clean mounting surface free of dirt and oil deposits
before mounting.
2) When installing headlight strobes, removal of the headlamp
housing is recommended for easy installation. Locate the
desired strobe placement in the headlamp housing and
drill a 1/2” hole (Fig A). Insert bulb into hole (Fig. B). For
areas of limited space, such as tail lights, marker lights,
heating vents, and directional assemblies, suspend bulb
within enclosure (Fig. C).
3) Connect strobes to transformer lead connectors and
secure all wires.
4) Connect BLACK/WHITE strip wire to positive (+) 12v and
BLACK wire to negative (-) ground
5) When using with ANSC5 Strobe Control Module, be sure
to remove insert cap on Input 2. Connect strobe interface
cable from Inputs 1 and 2 to corresponding outputs on
strobe controller (see Systemization Diagram for additional
strobe features).
6) Enjoy!
All StreetGlow products are covered by a comprehensive warranty.
StreetGlow neon products are warranted against defective materials and
workmanship for as long as the original purchaser owns the product.
StreetGlow Radio Bars and other non-neon products (excluding fog
lights and driving lights, and Xenon white bulbs) are warranted against
defective materials and workmanship for two years from date of purchase.
Fog lights and driving lights, and Xenon white bulbs are warranted for
one year from date of purchase. Any product that should fail for either
defective materials or workmanship will be repaired or replaced, at
StreetGlow’s option, as the sole remedy of the buyer. Proof of purchase
is required. All warranty claims are to be handled by selling agents.
Accident, abuse, neglect, modifications, broken glass (with the exception
of SG201 Undercar Kit), labor, transportation, improper installation and
the use of products other than for their intended purposes are not covered.
NEITHER SELLER NOR THE MANUFACTURER SHALL BE
LIABLE FOR ANY INJURY, LOSS OR DAMAGE, DIRECT,
INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT
LIMITED TO INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR
LOST PROFITS, LOST SALES, INJURY TO PERSON OR PROPERTY
OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL LOSS),
ARISING OUT OF THE USE OR THE INABILITY TO USE THE
PRODUCT AND THE USER AGREES THAT NO OTHER REMEDY
SHALL BE AVAILABLE TO IT. Before using, the user shall determine
the suitability of the product for the intended use, and user assumes all
risk and liability whatsoever in connection therewith. Some states and
countries do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have
other rights, which vary from state to state and from country to country.
DISCLAIMER: THE FOREGOING WARRANTY IS AN EXCLUSIVE
WARRANTY IN LIEU OF ANY OTHER EXPRESS WARRANTIES.
ANY IMPLIED WARRANTIES (INCLUDING, BUT NOT LIMITED
TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE) TO THE EXTENT THAT
IT COULD APPLY TO ANY OF THE PRODUCTS MANUFACTURED
BY THE COMPANY SHALL BE LIMITED IN DURATION TO THE
PERIODS OF THE EXPRESS WARRANTY GIVEN ABOVE.
WARRANTY
I N F O R M A T I O N
XENON HEADLIGHT STROBES
ANHLSV2
TRANSFORMER
CENTER OUT
1 2 3 4 5
OUT CENTER
1 2 3 4 5
LEFT TO RIGHT
1 2 3 4 5
NIGHT CRUZIN'
1 2 3 4 5
INCH WORM
1
1
2 3 4 5
2 3 4 5
RIGHT TO LEFT
1 2 3 4 5
1
2
3
4
5
ANSC5 ANSC5
ANSLV2
ANSLV2
ANSLV2
ANHLSV2
ANHLSV2
ANHLSV2
EXAMPLE 1 EXAMPLE 2
EXAMPLE 3 EXAMPLE 4
1
2
3
4
5
1
2
4
5
1
2
3
4
5
1
2
3
4
5

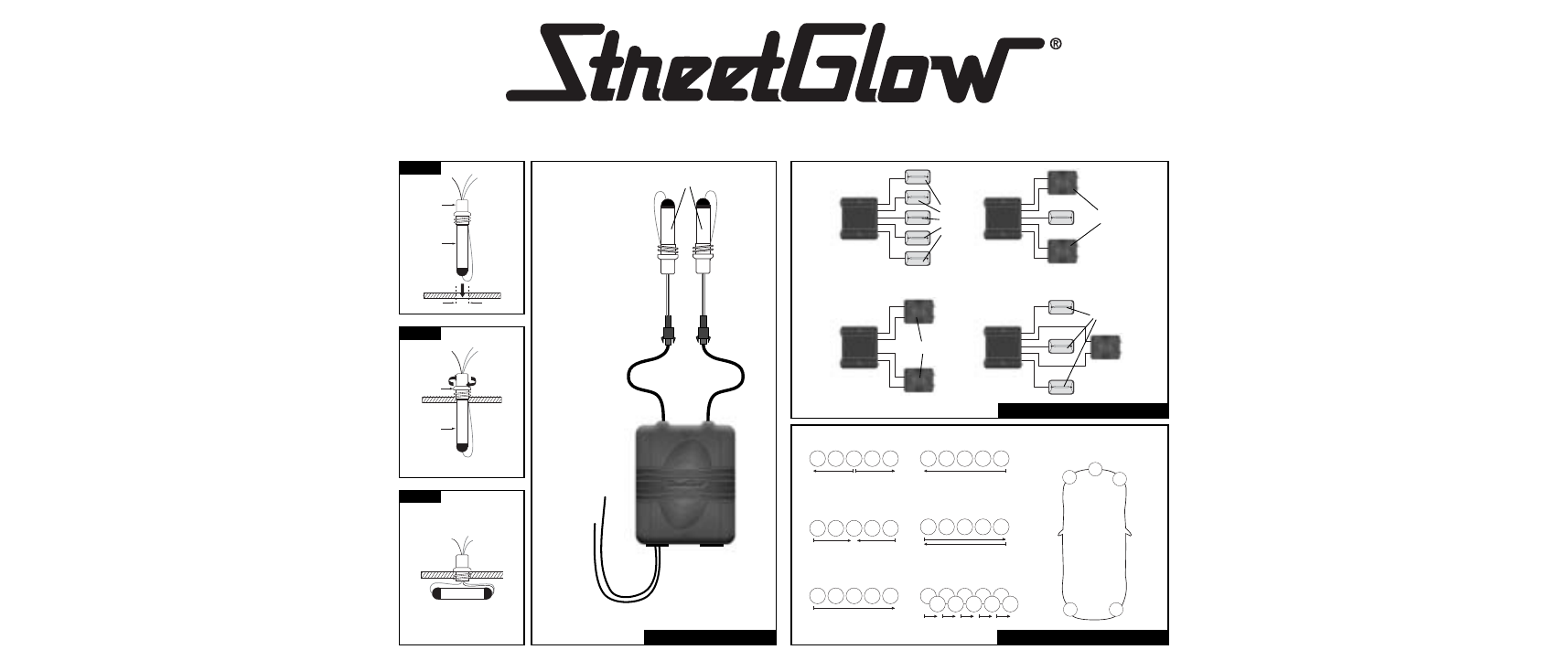

SYSTEMIZATION DIAGRAM
OVERVIEW OF PATTERNS WIRING DIAGRAM
Fig. A
Fig. B
Fig. C
FRONT
BACK
Suggested
Strobe Placement
BLACK =Chassis
Ground
= Fused
+12v
Power
BLACK/
WHITE
Grommet
Strobe light
bulb
Surface
1/2 inch hole
Grommet
Strobe light
bulb
INPUT 1 INPUT 2
ANSC5 ANSC5
*For use with composite headlamps only!
