3B SCIENTIFIC® PHYSICS
1

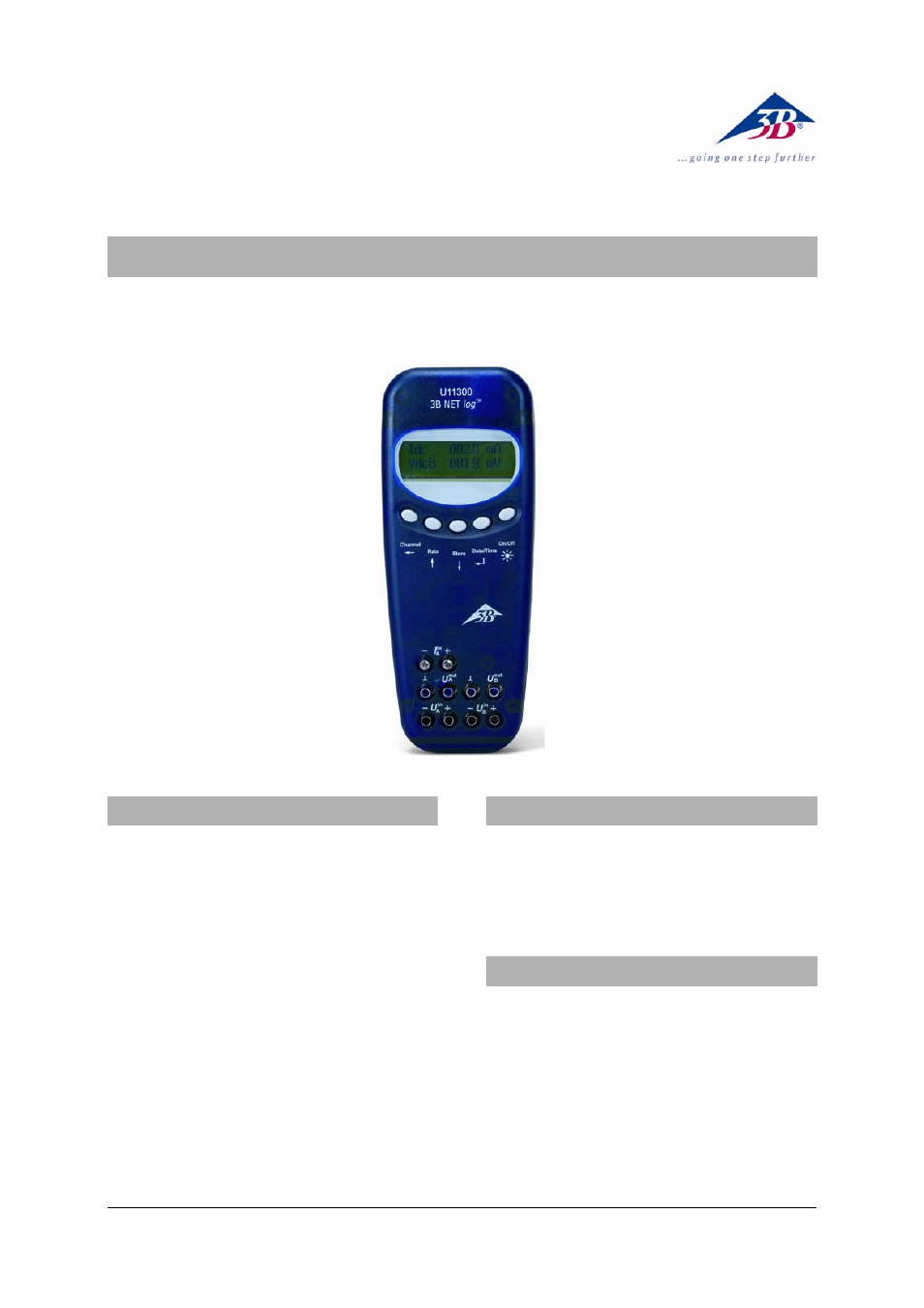

3B Netlog™ with Ethernet port U11300ip
Instruction manual
06/10 MEC
1. Safety instructions
To guarantee the safe functioning of the
3B NETlog™ equipment, it is necessary to abide by
the following instructions:
• Do not connect the 3B NETlog™ device to a
voltage in excess of ±20V or current in excess
of ±2A.
• Make sure the 3B NETlog™ device does not
come into contact with water.
• The 3B NETlog™ device should not be exposed
to temperatures above 80°C.
The operating voltage input is protected against
polarity reversal. However, it is not protected
against excess voltage.
• Do not apply voltage in excess of 4.5V to the
operating voltage input.
When the Ethernet port is used, the 3B NETlog™
unit must always be powered via its mains power
supply.
2. Scope of delivery
1 3B NETlog™ device
1 Power supply unit (4.5V DC, 300mA)
1 USB cable
1 Installation CD
3. Introduction
3B NETlog™ is a multimedia data acquisition and
evaluation system for current and voltage meas-
urements and for measurements using sensors. The
system can be used with or without being con-
nected to a computer. With the accompanying
3B NETlab™ software, measurements can be con-
ducted with arbitrarily chosen parameters as well
as in prepared experiments. The prepared experi-
ments take the user through an interactive experi-
mental environment where the measurement pa-
rameters have already been defined. When used
