2.3 Navigating the Pre-EQ Section (28-GEQ and PEQ)
The EQ button
toggles through
the EQs used in
each channel of
the selected
program
menu.
PEQ
GEQ
or
Navigating the "EQ Section"

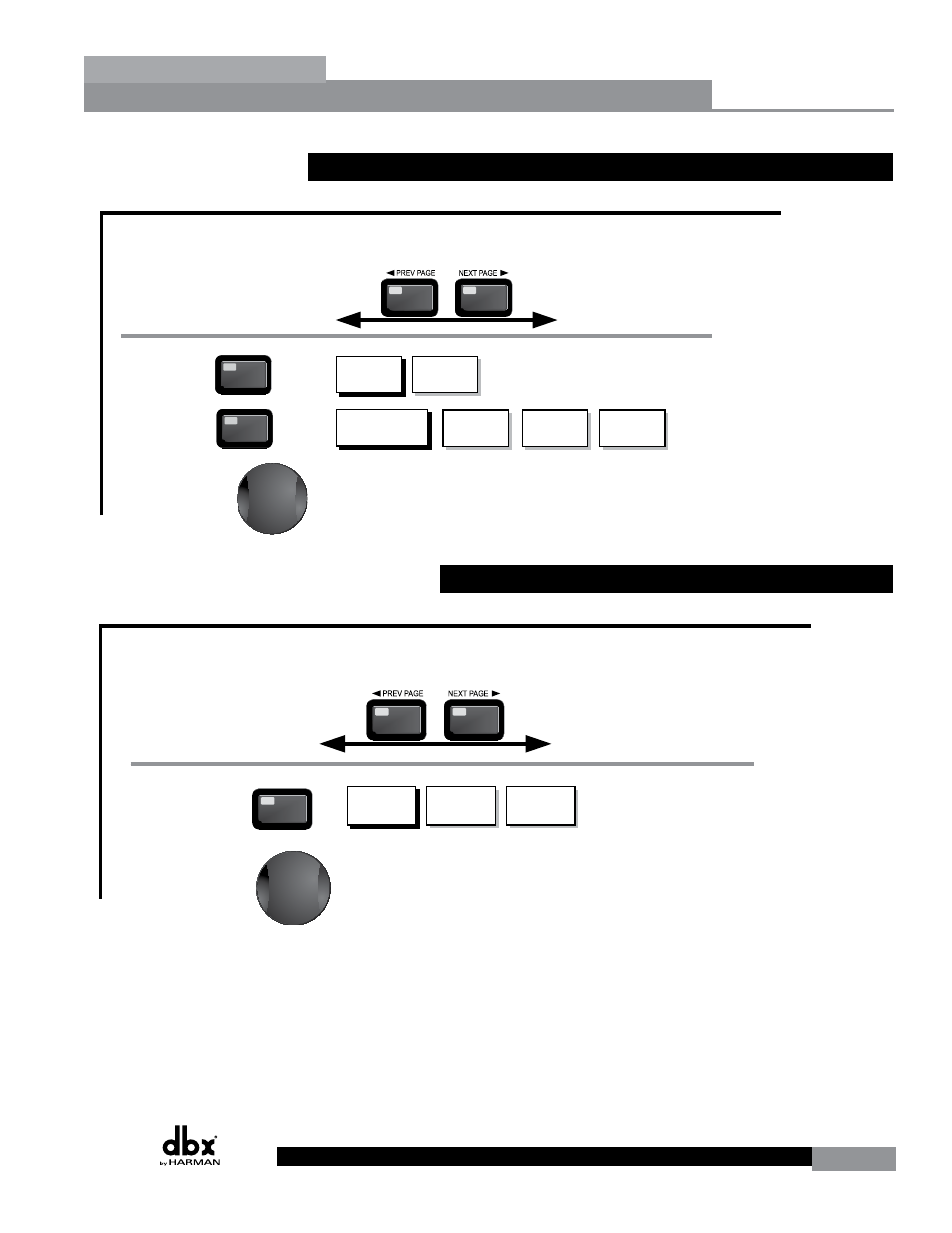

To edit the parameters of the EQs used in a selected program, simply use the following procedure. From program mode,
press the EQ button to reach the EQ module to be edited. Successive presses of the EQ button will move through each channel.
Navigate through the Pages of the selected EQ section by depressing "Next Page" or "Prev Page" successively until arriving at the desired Page.
GEQ On/Off
Flatten/Restore
EQ
EQ
Freq- 31.5Hz-18kHz
Gain -12dB to12dB
PEQ On/Off
Flatten/Restore
Bell,HSelf, LShelf, LHShelf, B1 Freq- 20Hz-20kHz
Gain -12dB to12dB
Q .20 to 16.0 B2 Freq- 20Hz-20kHz
Gain -12dB to12dB
Q .20 to 16.0 B2 Freq- 20Hz-20kHz
Gain -12dB to12dB
Q .20 to 16.0
Successive presses of the Data wheel will select
effect parameters within the currently selected page.
GEQ/PEQ
...
2.4 Navigating the CROSSOVER Section
Freq- 19.7kHz to Out
Slope - BS, BW, LR
(6,12,18,24,36,48)
Low Pass High Pass
Repeat, for each crossover band
XOVER
To edit the parameters of the Crossover used in a selected program, simply use the following procedure. From program mode,
press the X-OVER button. Once you have reached the Crossover module, Navigate through the Pages of the selected Crossover
module by pressing the "Next Page" or "Prev Page" buttons successively until arriving at the desired Page.
Gain- -20 to 20dB
Type (BS,BW,L-R)
Frequency
Slope
SSub >
Type (BS,BW,L-R)
Frequency
Slope
Successive presses of the Data wheel will select
effect parameters within the currently selected page.
XOVER
The XOVER button
toggles through
the XOVER used in
each channel of
the selected
program
menu.
Freq- 20.kHz to Out
Slope - BS, BW, LR
(6,12,18,24,36,48)
