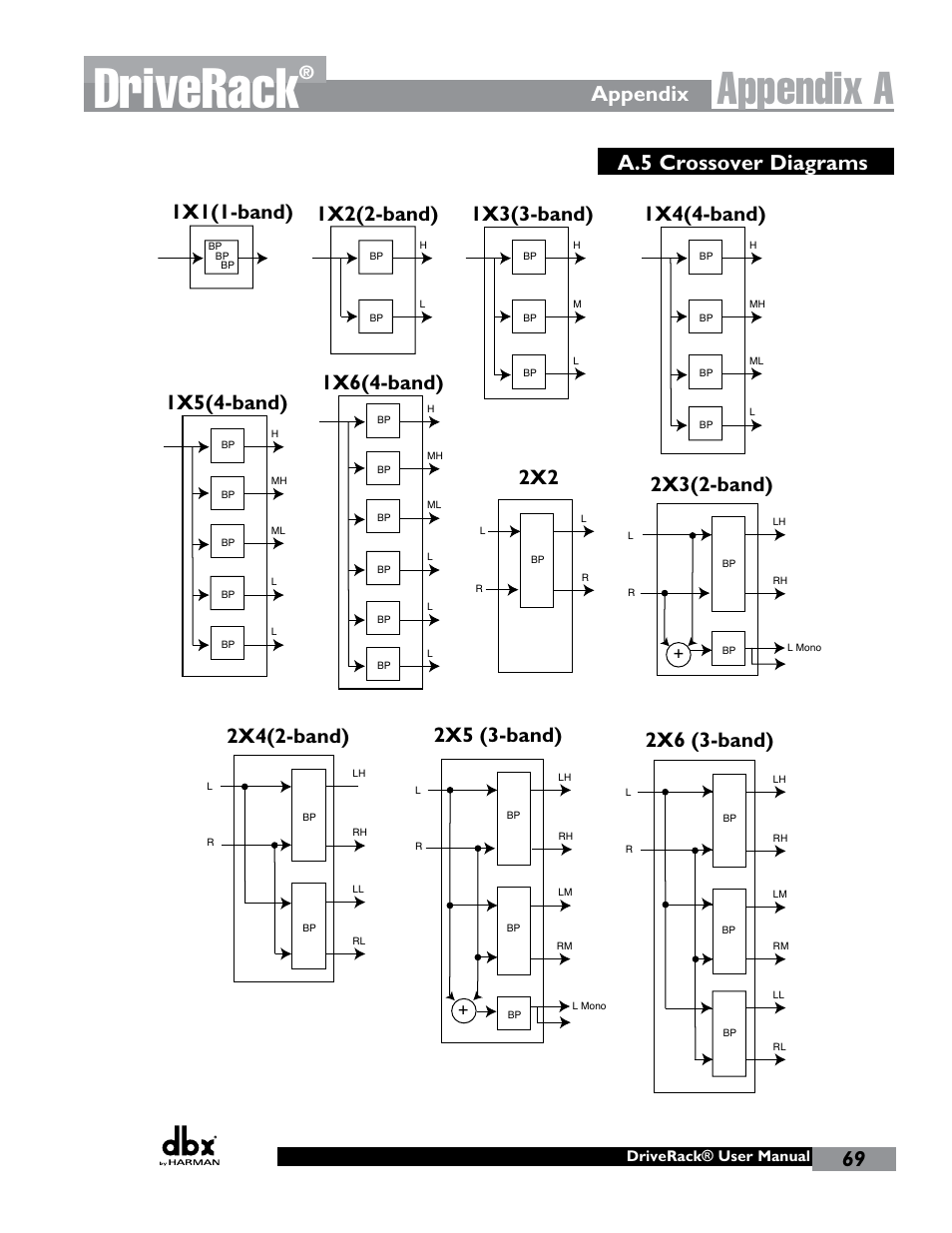

Driverack, Appendix a, A.5 crossover diagrams 2x3(2-band) – dbx DriveRack 260 User Manual
Page 77: 2x4(2-band), 2x6 (3-band), 2x5 (3-band), 1x1(1-band), 1x2(2-band), 1x5(4-band), 1x6(4-band)
