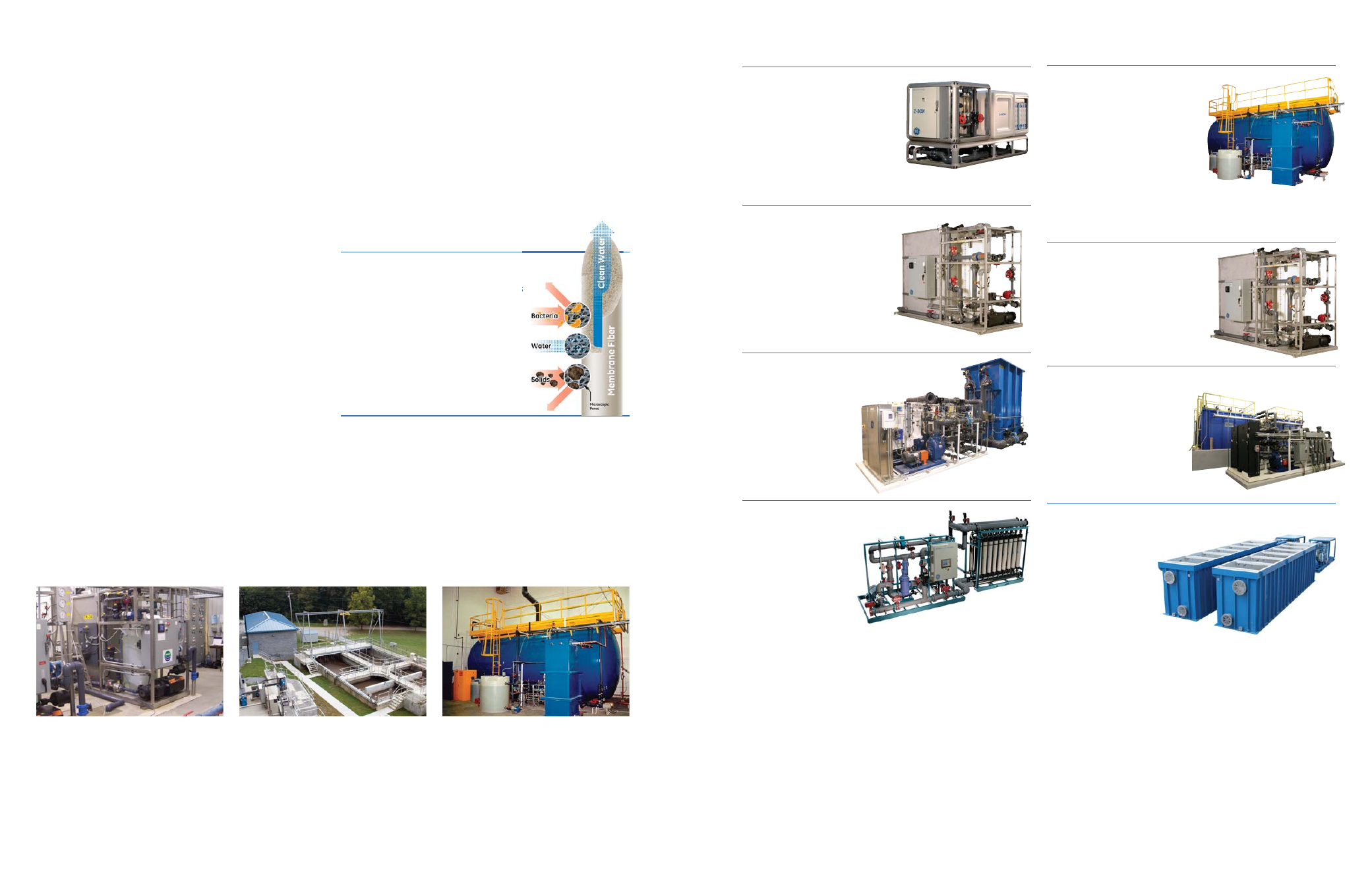

How membranes work
Membranes are based on filtration methods
found throughout nature. ZeeWeed membranes
are hollow polymer fibers with billions of
microscopic pores on the surface. The pores
are much smaller in size than common
contaminants, bacteria and viruses. This
physical barrier only allows clean water to
pass through while rejecting impurities—
guaranteeing an exceptional water quality
and clarity on a continuous basis. Application
of pressure outside or a slight vacuum inside
is all that is required to draw water into
the membrane and filter out impurities.
Water Treatment & Tertiary Systems
Z-BOX S
up to 400,000 gpd (1,514 m 3 /d)
Fully integrated process and
control components
Less than 6-foot (1.8-meter)
tall system readily fits into any
building
Side-loading membrane door for easy access
Z-BOX M
up to 350,000 gpd (1,325 m 3 /d)
Equipped with rugged
reinforced membranes to
withstand the harshest
environments and the most
difficult-to-treat water sources
Fully-integrated, skid-
mounted system
Z-BOX L
up to 3.25 MGD (12,300 m 3 /d)
Easily fits beneath a
9-foot (2.7-meter)
ceiling
Side loading membrane
door for easy access
Z-PAK
up to 720,000 gpd
(2,725 m
3 /d)
ZeeWeed fiber in a
pressurized module
Fully integrated
skid-mounted system
with compact footprint
•
•
•
•
•
•
•
•
•
Z-MOD S
up to 80,000 gpd (303 m 3 /d) ‡
Fully integrated wastewater
treatment plant
Can be buried or installed above
ground (smaller flows available
for below ground systems)
Complete plug-and-play design
with all components in a single tank
Can operate at MLSS concentrations
between 3,000 and 15,000 mg/L
Z-MOD M
up to 110,000 gpd (416 m 3 /d) ‡
Fully integrated skid-mounted
system
Can operate at MLSS
concentrations between
3,000 and 15,000 mg/L
Z-MOD L
up to 1 MGD (3,785 m 3 /d) ‡
Containerized or skid-
mounted components
Dual-train systems
Can operate at MLSS
concentrations between
3,000 and 15,000 mg/L
Z-MOD X
up to 4.0 MGD
(15,142 m
3 /d) ‡
Equipment skid
comes complete with
permeate pump,
process blower, RAS
pump, PLC, MCC,
piping and wiring
Can operate at MLSS concentrations
between 3,000 and 15,000 mg/L
•
•
•
•
•
•
•
•
•
•
•
Wastewater Treatment Systems ZeeWeed * packaged plants provide
large-scale performance in a compact
pre-assembled system
Incorporating a simple and expandable building-block
design, GE packaged plants can be quickly set up in
virtually any location and feature scalable treatment
capacity that can be increased as demand grows. These
highly automated, plug-and-play UF systems outperform
conventional treatment alternatives in all categories,
offering superior treated water quality that meets or
exceeds regulatory requirements, reduced operating costs,
smaller plant footprints, and highly reliable performance—
at a price that is comparable to conventional systems.
Typical Treated Water Results
Turbidity ………………………………………………………………………………………………………… < 0.1 NTU
Bacteria …………………………………………………………………………………………… > 4-log removal
Giardia ……………………………………………………………………………………………… > 4-log removal
Cryptosporidium …………………………………………………………………………… > 4-log removal
Virus - ZeeWeed 500 ………………………………………………………………… > 2.0-log removal
Virus - ZeeWeed 1000/1500 …………………………………………………… > 3.5-log removal
Iron …………………………………………………………………………………………………………… < 0.05 mg/L
§
Manganese ……………………………………………………………………………………………… < 0.02 mg/L §
TSS …………………………………………………………………………………………………………………… < 1 mg/L
TOC ……………………………………………………………………………………………… 50 - 90% removal
§†
Arsenic ……………………………………………………………………………………………………………… < 5 μg/L
Color ……………………………………………………………………………………………………………… < 5 PCU
§†
§ pre-treatment required
†
dependent on raw water quality
Achievable MBR Effluent
Turbidity ………………………………………………………………………………………………………… < 0.1 NTU
BOD
5
……………………………………………………………………………………………………………… < 2 mg/L
TSS …………………………………………………………………………………………………………………… < 1 mg/L
NH
3
-N …………………………………………………………………………………………………………… < 0.5 mg/L
Total Nitrogen …………………………………………………………………………………………… < 3 mg/L ††
Total Phosphorous ……………………………………………………………………………… < 0.05 mg/L ††
Fecal Coliform …………………………………………………………………………… < 2.2 CFU/100 ml §§
SDI ……………………………………………………………………………………………………………………………… < 2
†† with appropriate biological design and/or chemical addition
§§
after disinfection
Municipal Drinking Water
Township of Tay, ON - 70,000 gpd (265 m
3 /d) ADF ‡
Z-BOX M
Municipal Wastewater Treatment
Huntsville, TN - 300,000 gpd (1,136 m
3 /d) ADF ‡
Packaged Equipment Skids Z-MOD L
Decentralized Treatment
Office Park, Oakville, ON - 17,500 gpd (66 m
3 /d) ADF ‡
Z-MOD S
* Average Daily Flow ‡ Average Daily Flow
Pre-assembled and factory tested systems offer:
Reduced on-site construction costs with
less interconnecting requirements;
Quick delivery with complete engineering
package already completed;
Cost-effective solutions for virtually all water
and wastewater treatment applications;
Comprehensive cleaning capability for
peak system performance; •
•
•
•
Simple and highly automated operation
and in-situ membrane cleaning;
Modular building-block design;
Simplified start up with minimal installation time;
Compact footprint with flexible layout options;
Greenfield or retrofit solutions. •
•
•
•
•
