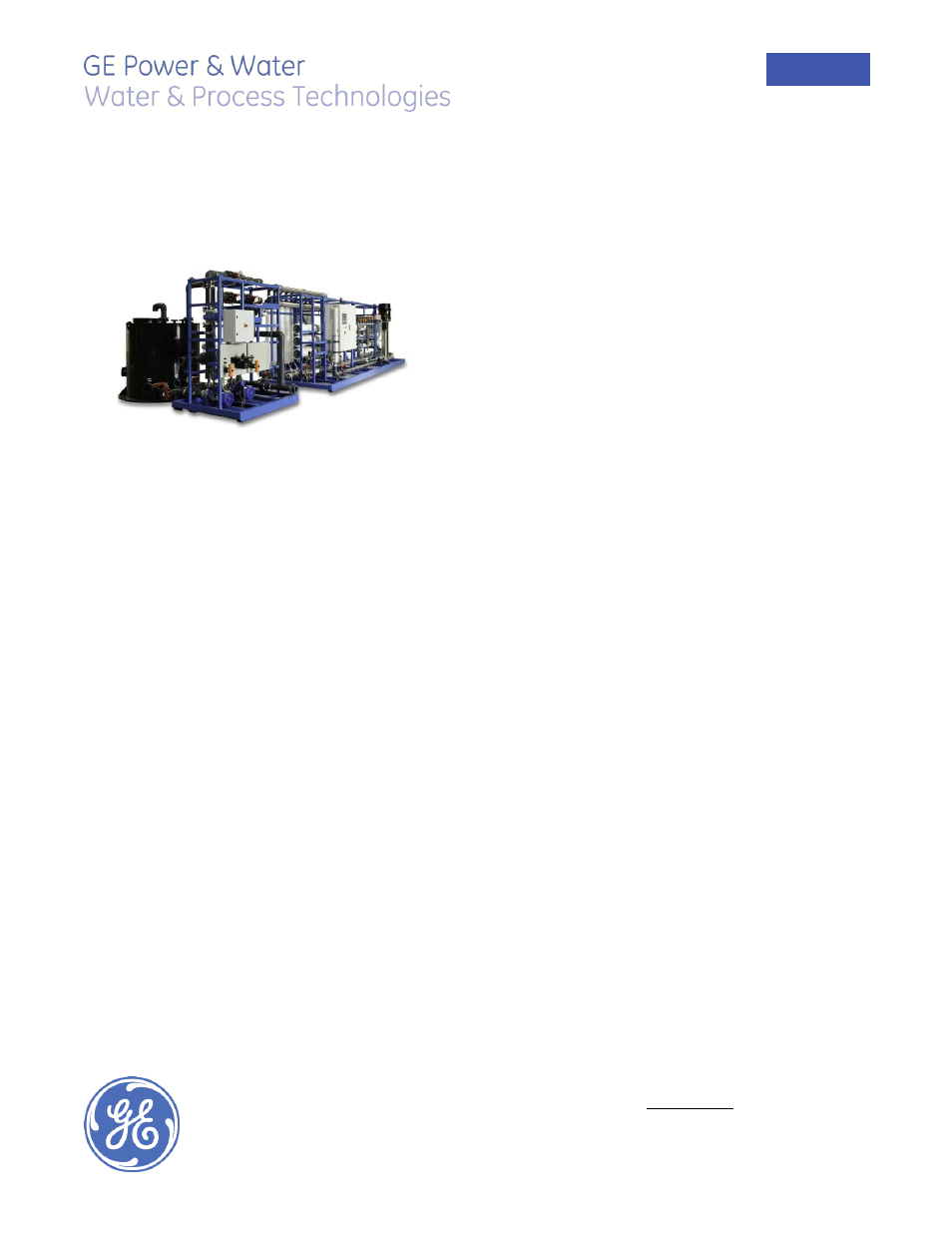

PROPAK* EU Series
Integrated UF RO Platforms 23-45-68 m 3 /hr (50 Hz)
Features
 Single compact multifunctional Tank: Break, UF
backwash, UF CIP, RO CIP.
 Integrated control with single Siemens PLC and
HMI (Ethernet communications)
 4-20 mA instruments
 RO permeate flush on shutdown
 UF backwash/CIP pump, RO feed pump
(mounted on the tank skid), RO High pressure
pump with VFD (mounted on filtration skid)
 CE compliant and certified
System Operating Parameters
Max Design Recovery 1 ...................................................... 75%
Max Design Recovery 1 (with ICR) ................................. 85%
Design Temperature ......................................................... 15°C
Operating Temperature Range ............................ 15-30ºC
Nominal RO rejection ................................................ 97-99%
System Inlet Pressure ........................................ 0.7-4.5 bars
UF average membrane flux ...................................... 76 lmh
RO average membrane flux...................................... 34 lmh
1 Recovery Rate can vary +/- 5%
Available Options
 ICR (Integral Concentrate Recovery)
 UF flow control valve or UF Feed Pump
 Motor Starter (RO Feed)
 VFD (UF Feed, UF backwash/CIP)
 UF backwash aeration Blower and VFD
 500µm automated pre-screen
 UF modules membrane integrity test
Instrumentation
Flow Meters.................................. UF Feed, UF CIP/BW, RO
Permeate, RO concentrate, ICR Permeate
Conductivity Meters ................... RO Feed, RO Permeate,
ICR Permeate
pH Meter ............................................... UF CIP, RO Feed (opt)
Pressure Transmitters ............... UF Feed, UF Permeate,
RO Primary, RO Final
Pressure Gauges UF Feed, UF Permeate,
UFBW/CIP pump discharge, RO feed pump
discharge, RO pre&post cartridge filter;
RO HP pump discharge/primary/final,
RO interstage/permeate/concentrate to drain
Pressure Switches .......UF Feed / Backwash, RO Feed,
RO Permeate, RO Concentrate, ICR Permeate
Chlorine Analyzer .............................................. UF Permeate
ORP Sensor ..................................................................... RO Feed
Temperature....................... UF Permeate, RO Feed, Tank
Turbidity Analyzer ......................... UF Feed, UF Permeate
Level Transmitter ............................................................... Tank
Materials of Construction
High-pressure piping ............ 1.4404 (316L SS, Sch. 10)
Low-pressure piping ........................................ PVC-U PN16
Frame ............................. Epoxy-coated blue carbon steel
Enclosure ............................................................. IP65 (Nema 4)
Clamps/fittings ...................................................... Zinc-plated
Cartridge housings ......................................................... 316SS
Membrane Elements and Housings
RO Membrane ................................................. AG8040F-400
Style ............... Spiral-wound elements, TFC (polyamide)
Membrane rejection ...................................... 99.0 to 99.5%
RO Membrane Housing ............................................ GE, FRP
Housing Pressure Rating ........................ 31bar (450 psi)
UF Membrane Model .......................................... GE ZW1500
UF Membrane Surface ................................ 51m2 (550 ft2)
