9 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-4 01-24-12

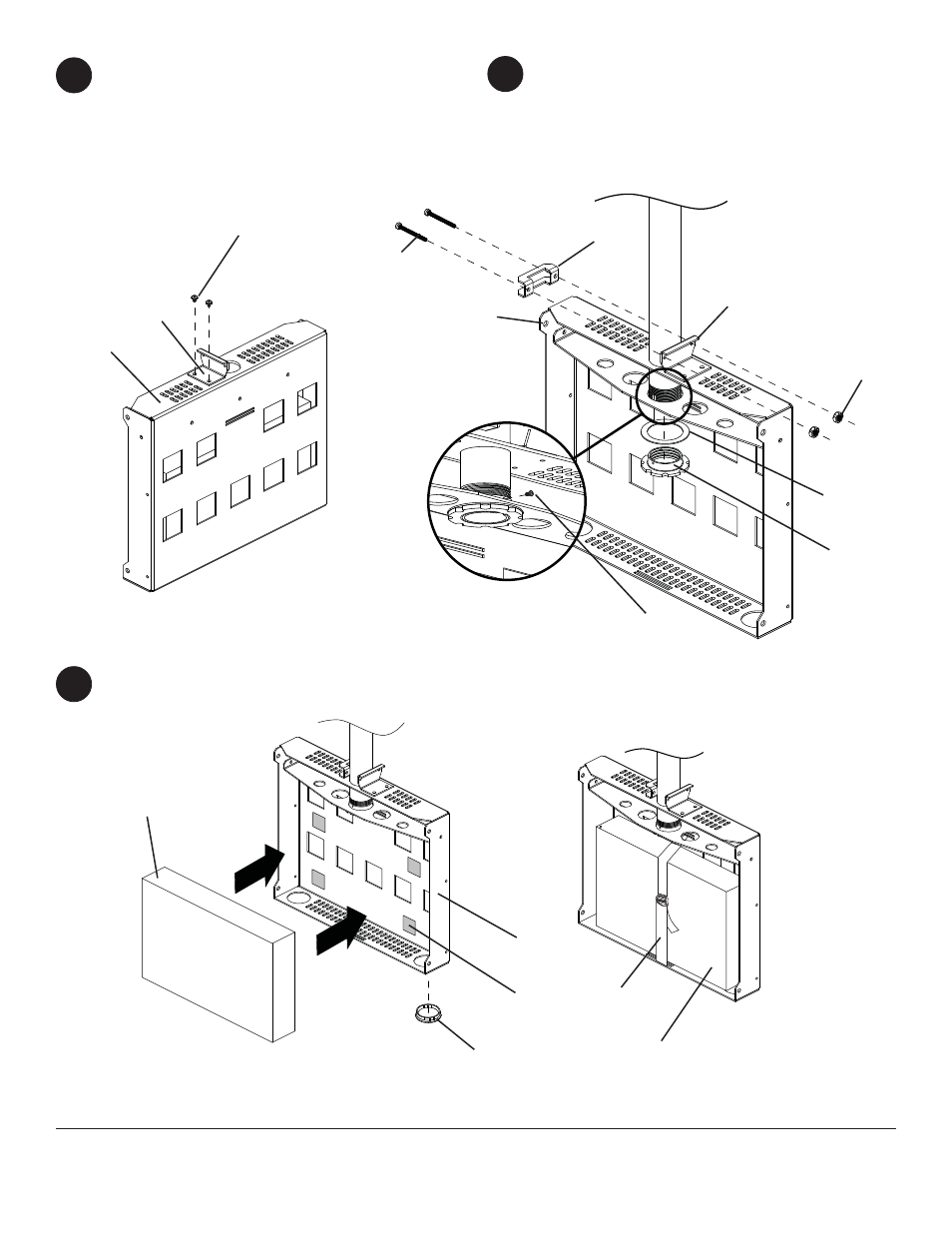

Secure media component to main support box (A) using strap provided with main support box (A), and rubber pads
(J) for support and ventilation.
Secure 2" snap bushing (K) as desierd.
Secure yaw lock bracket (E) to main support box (A)
with two M6 x 12 mm socket pin screws (F). Tighten
using allen wrench (I). Slide tube into top of main support box (A) and
secure using washer (N), retaining collar (M) and one
M5 x 10 mm type F screw (O).
Secure main support box (A) to tube using two M5 x
55 mm socket screws (Q), pinch bracket (D), yaw
lock bracket (E), and M5 nylock nut (P).
Installing To Column
12
J
A
STRAP
10 11
F
A
E
O
N
M
A
Q
E
P
D
K
MEDIA COMPONENT
MEDIA COMPONENT
