4 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-4 01-24-12

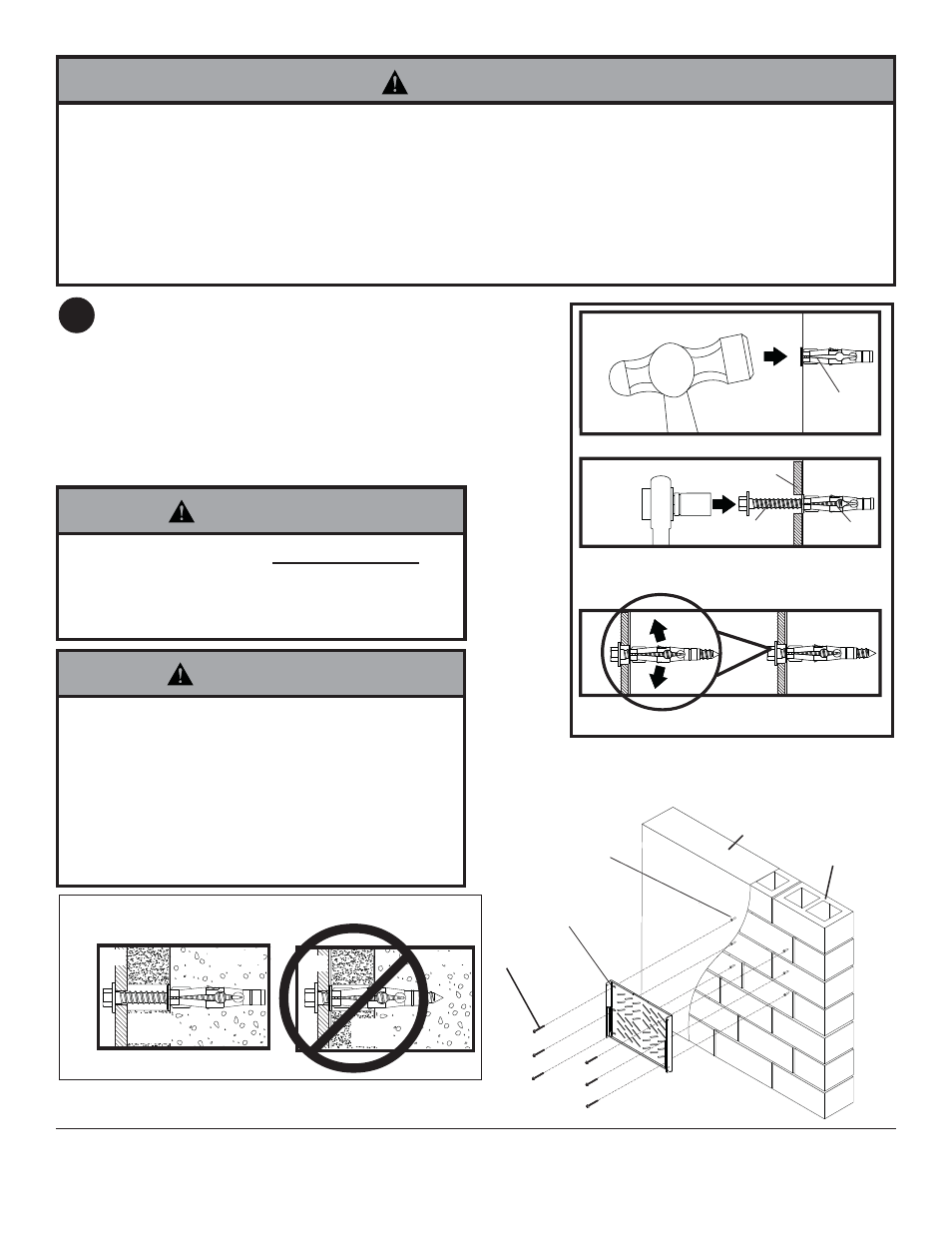

Drill holes and insert anchors.
Place access plate (B) over anchors and secure with
screws (H).
Tighten all fasteners.
Position access plate (B) at desired position on wall . Use
access plate (B), making sure that it is level, as a tem-
plate to mark holes. Drill six 5/16" (8 mm) dia. holes to a
minimum depth of 2-1/2" (64 mm). Concrete must be 2000
psi density minimum. Insert anchors (G) in holes flush
with wall as shown in figure 2.3. Place access plate (B)
over anchors and secure with six #14 x 2-1/2" (6 mm x 65
mm) wood screws (H) as shown in figure 2.4. Make sure
wall plate is level and tighten all fasteners.
Installation to Solid Concrete and Cinder Block Wall
2
CUT
A
W
A
Y
VIEW
INCORRECT
concrete
plaster/
dry wall
B
CORRECT
concrete
plaster/
dry wall
B
1
2
• Tighten wood screws firmly, but do not overtighten.
Overtightening can damage the screws, greatly
reducing their holding power.
• Never tighten in excess of 80 in • lb (9 N.M.).
WARNING
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid
part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90 specifications.
It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid
breaking out the back of the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
WARNING
H
G
fig 2.3
fig 2.4
• Concrete anchors are not intended for attachment to
concrete wall covered with a layer of plaster, drywall,
or other finishing material as shown below. If mounting
to concrete wall covered with plaster/drywall is
unavoidable, plaster/drywall (up to 5/8" thick) must be
counterbored as shown below. Be sure concrete
anchors do not pull away from concrete when tighten-
ing screws. If plaster/drywall is thicker than
5/8", custom fasteners must be supplied by installer.
WARNING
CINDER BLOCK
SOLID CONCRETE
B
3
concrete
wall
G
B
G H
