11 of 11 ISSUED: 06-15-09 SHEET #: 145-9008-4 01-24-12

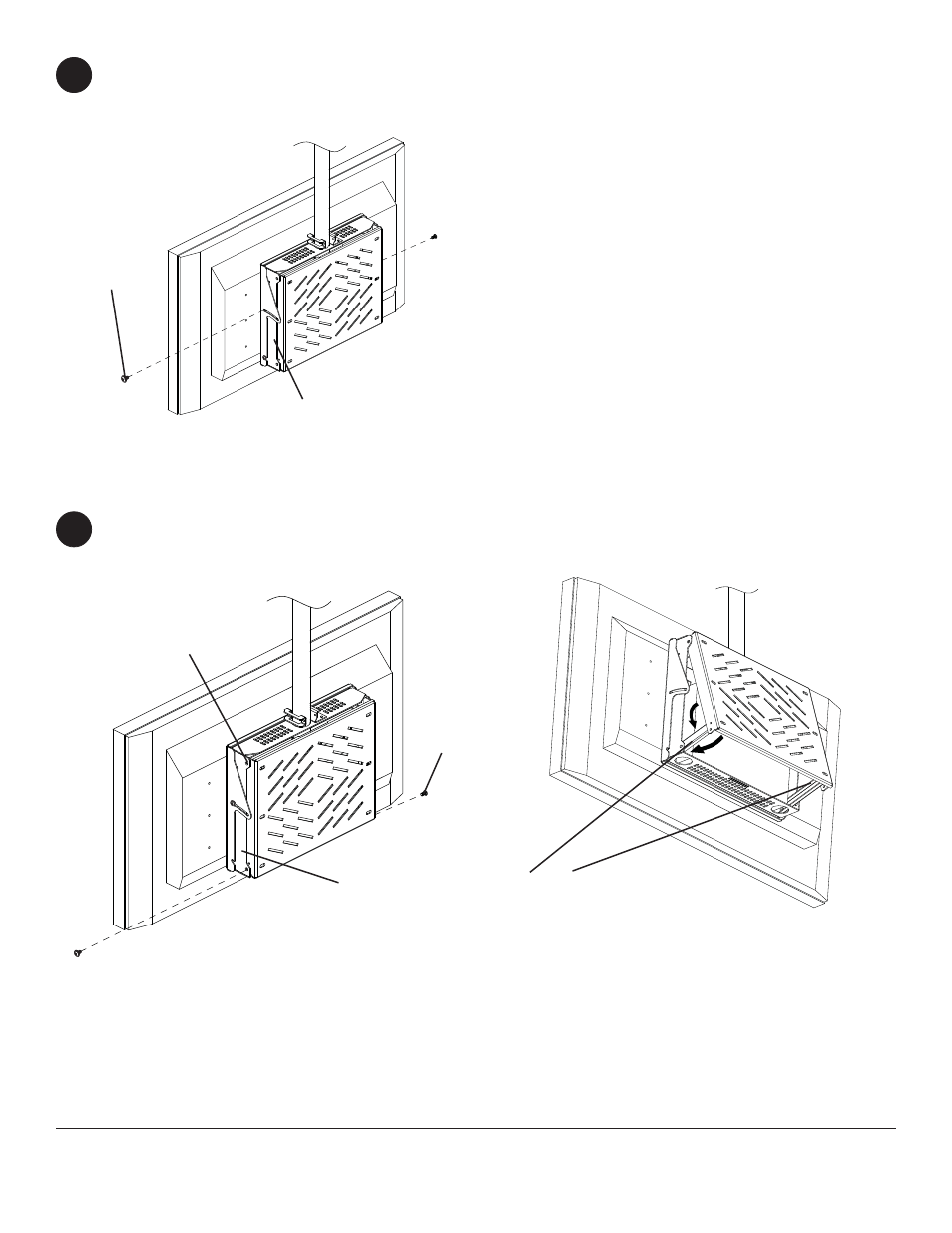

Loosen top two M8 x 15 mm socket pin screws (L) 1/4 turn and temporaliy remove bottom two M8 x 15 mm socket
pin screws (L) on main support box (A) as shown in figure 17.1. Swing screen forward and swing support brackets
downward to brace screen in open position as shown in figure 17.2.
LOOSEN SCREWS 1/4
TURN ON BOTH SIDES
SUPPORT BRACKETS
(BOTH SIDES)
REMOVE
fig. 17.1 fig. 17.2
A
Accessing Media Component
17
A
Secure two M6 x 12 mm socket pin screws (F)
into main support box (A) at desired tilt.
Tighten
using allen wrench (I).
16
F
L
L
